Description

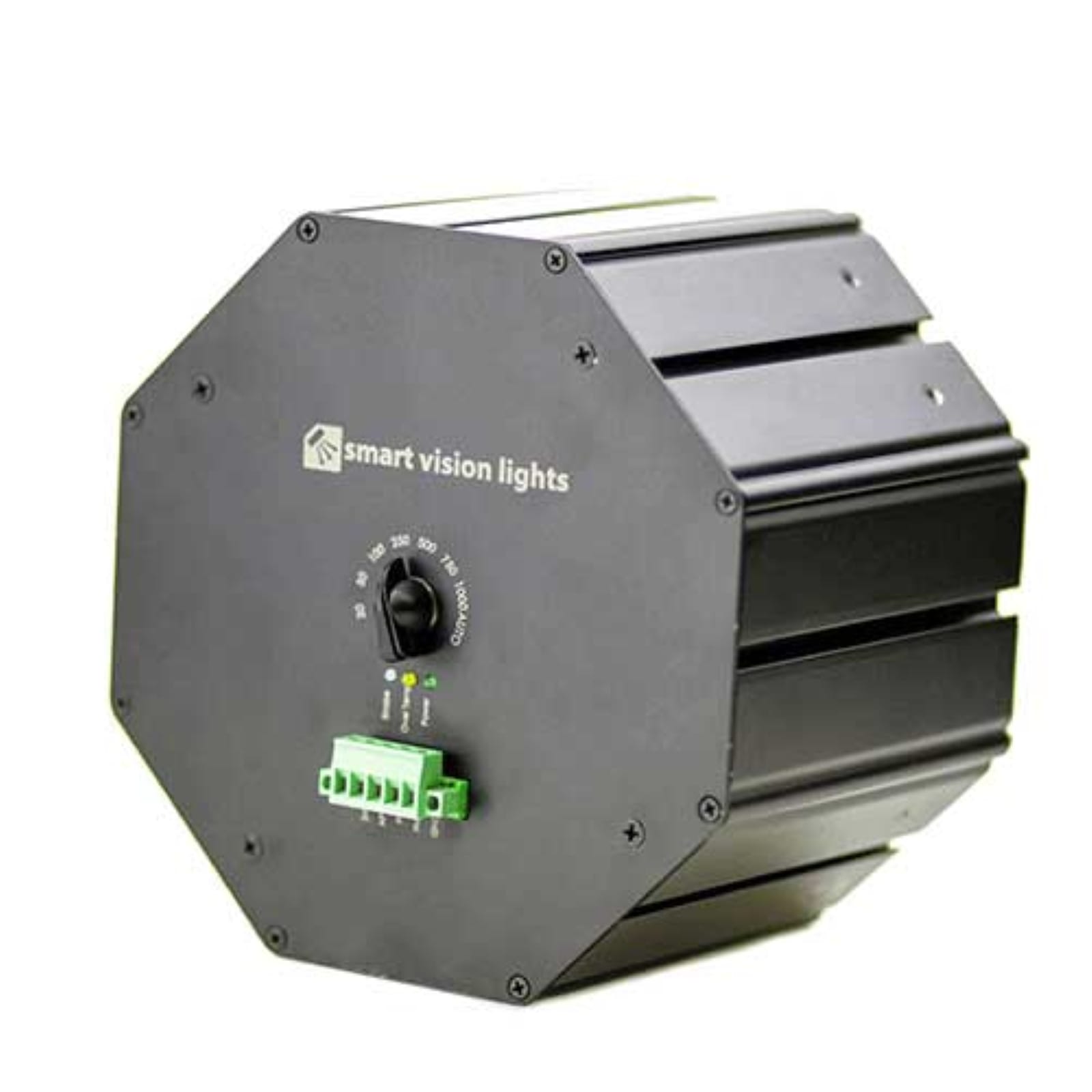

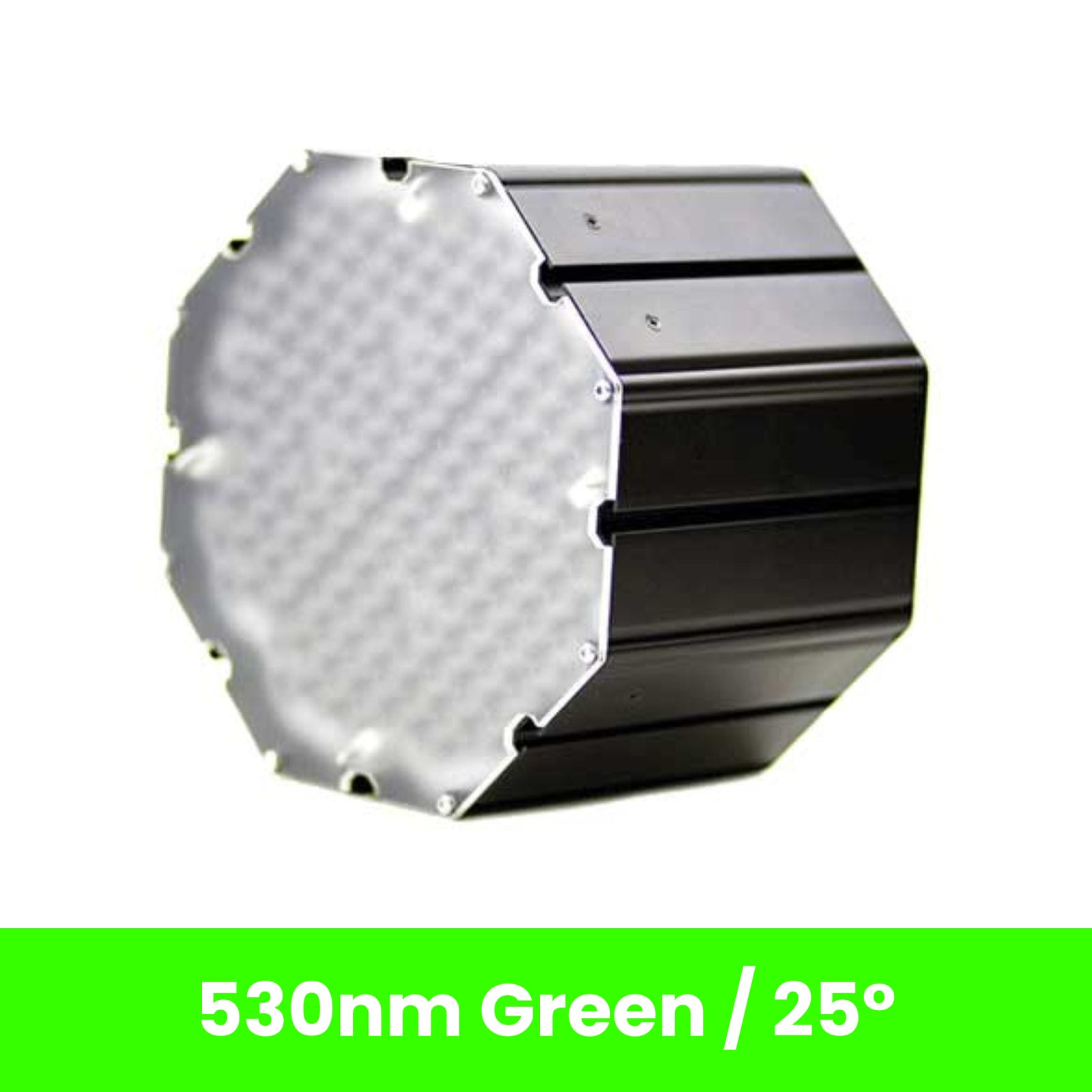

The XR256-530-W machine vision light from Smart Vision Lighs is a high-speed strobe light in SVL's XR256 spot light series. It is a high-power light with an energy rating of 2000W and strobes at up to 5000 Hz. It can be used in pulse-following or pulse-initiated mode, or can be run without any input at a pre-set 2% duty cycle. It features SVL's SafeStrobe technology to monitor temperature and prevent damage to the light. In pulse-initiated mode, the strobe duration can be set using the dial to between 20μs and 1000μs. The XR256-530-W light is 180mm x 180mm and is in the 530nm Green color with a lens angle of 25 Degree. The XR256 series is available in White, 470nm Blue, 530nm Green, 625nm Red, 850nm IR, and 940nm IR color variants and 14°, 30°, 50°, and 80° lens angles. Further customizations can be performed upon request from Machine Vision Direct.

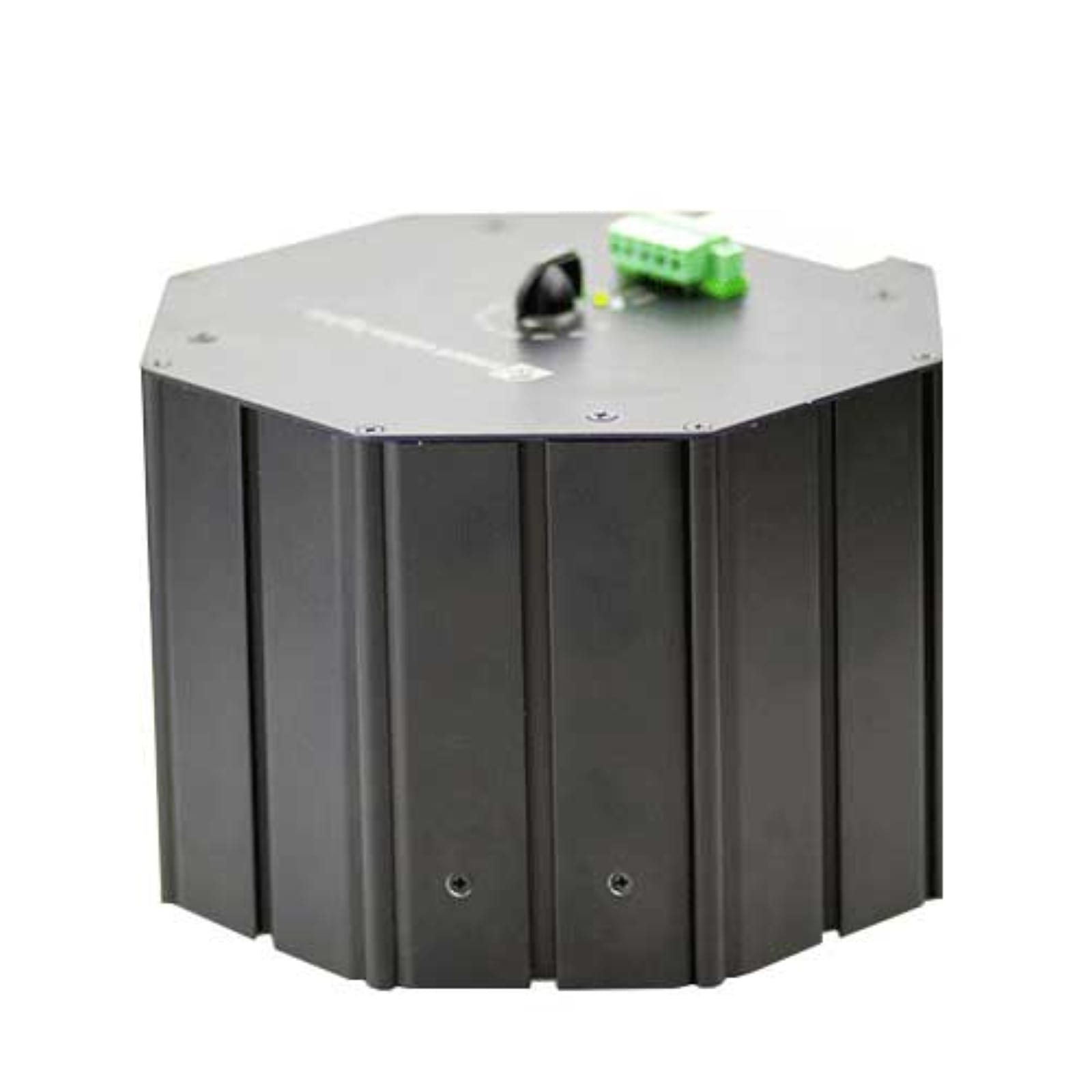

The light features a 5-position terminal block.
Technical Specifications
