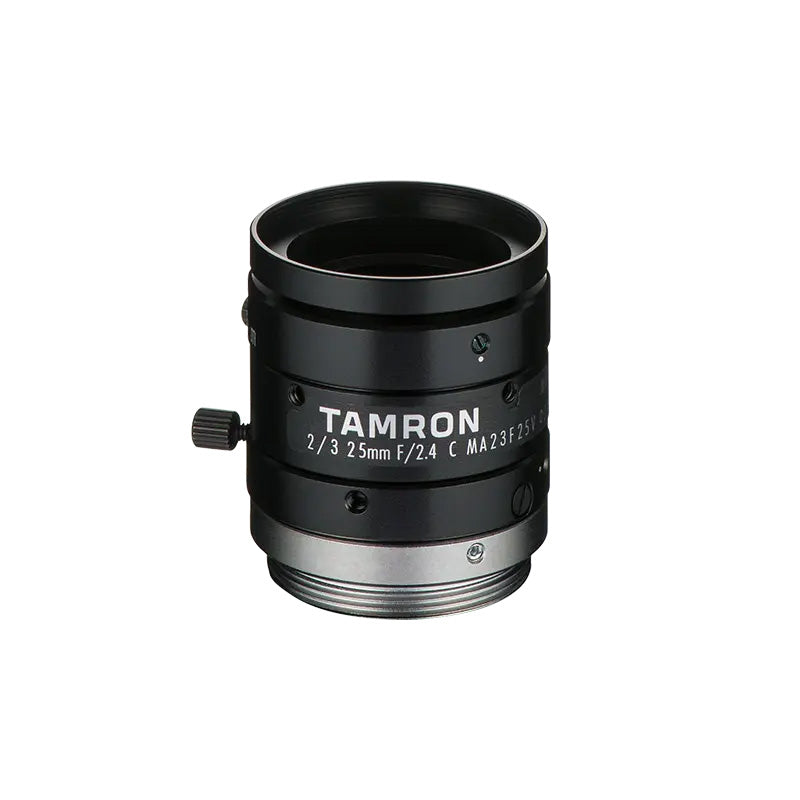

Tamron MA23F25V C-Mount 25mm 2/3" F/2.4 Mega-Pixel Machine Vision Lens

TamronSKU: MA23F25V

Sale price$515.38 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


Tamron MA23F25V Machine Vision Lens
The new MA23F lens series is made for 2/3” image sensors with up to 8 Megapixel resolution and a 2.74µm pixel pitch. It comes in focal lengths of 8, 25 and 35mm. Compared to the previous generation of 2/3” lenses, this new series offers improvements in terms of resolution, distortion and size. Its rugged mechanical design and the compact size with a body diameter of only 29mm are further additional features, which make this lens series the perfect choice for various, sophisticated applications.

Product specification

Attribute Value
Name MA23F25V
Sensor size 2/3"
Mount C
Min. pixel pitch 2.74?m
Focal length 25mm
Apperture range 2.4 to 16
MOD 0.1m - ?
Focus Manual with lock
Iris Manual with lock
Weight 55g
Spectral range Visible Light
Optical overall length 41.3mm
Maximum diameter 29mm
Operating temperature -20°C to +60°C
Filter thread M27 P=0.5

MA23F25V Mega-PixelMachine Vision Lens Downloads

MA23F25V Tamron Datasheet Download
MA23F25V Tamron Product Catalog Download
