Tamron M118FM50 C-Mount 50mm 1/1.8" F/2.8 Mega-Pixel Machine Vision Lens

TamronSKU: M118FM50

Price:
Sale price$233.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Description

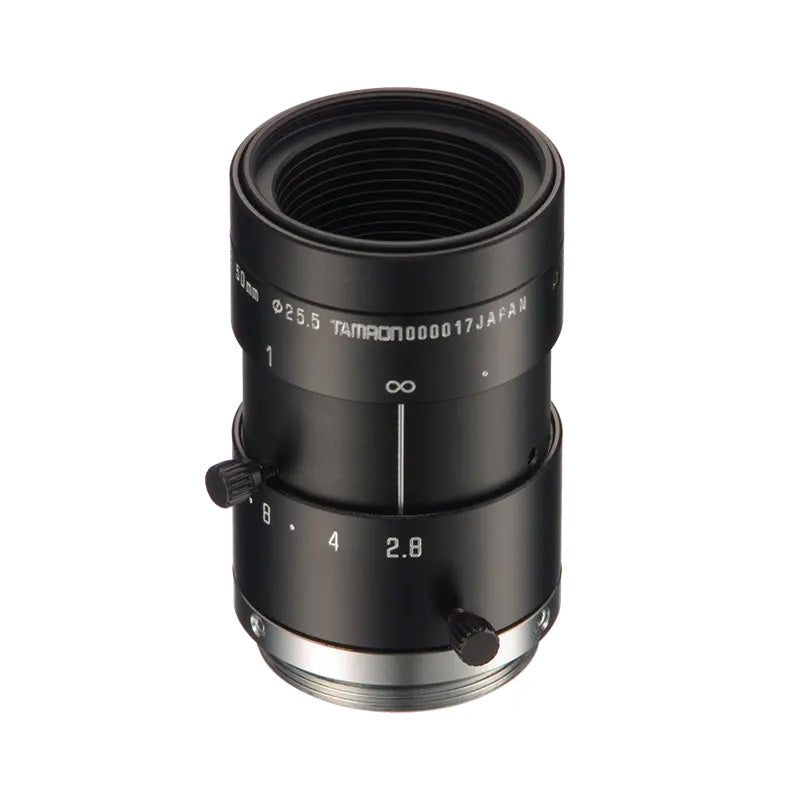

Tamron M118FM50 Machine Vision Lens
Featuring superior optical technology these various series of fixed-focal lenses provide outstanding optical quality and enhanced performance in close-focus situations. With lenses for image sensors from 1/1.8” over 2/3” and 1/1.2 up to 1.1” and pixels as small as 2.5 µm these lenses fulfill the needs of today’s diverse image processing applications. In recent years ITS (Intelligent Transport Systems) has been receiving attention worldwide, with rising demand for high sensitivity and high resolution, which results in larger imager size. These lenses contribute especially to license plate recognition or face recognition for ITS applications.

Product specification

Attribute Value
Name M118FM50
Sensor size 1/1.8"
Mount C
Min. pixel pitch 4.0µm
Focal length 50mm
Apperture type Manual
Apperture range 2.8 to 22
MOD 0.1m - ?
Focus type Manual, with lock
Weight 52g
Spectral range Visible Light
Optical overall length 80.1mm
Maximum diameter 29mm
Operating temperature -10°C to +60°C
Filter thread M25.5 P=0.5

M118FM50 Mega-PixelMachine Vision Lens Downloads

M118FM50 Tamron Datasheet Download
M118FM50 Tamron Product Catalog Download
