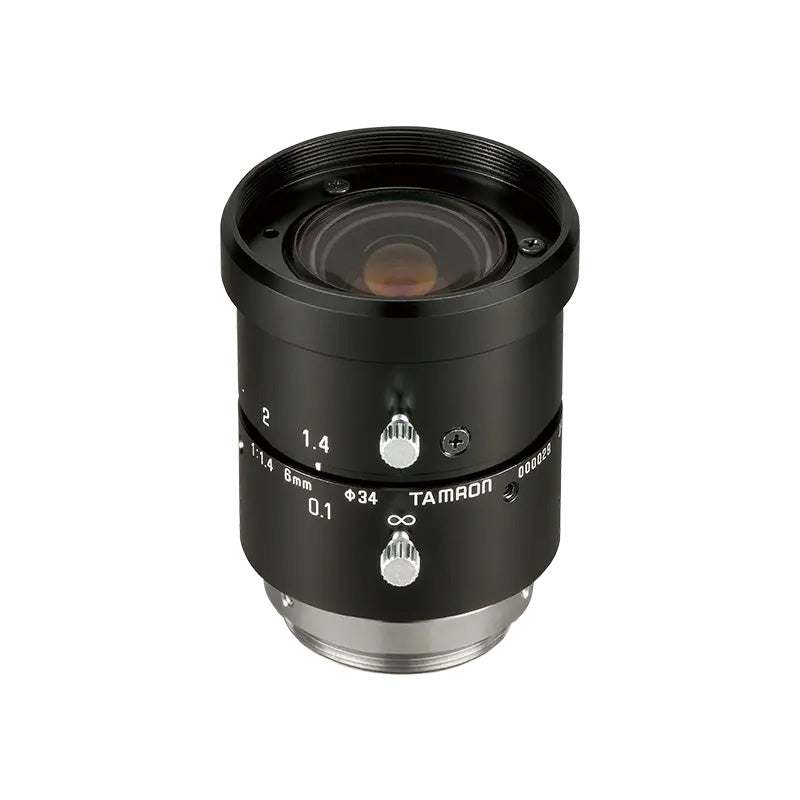

Tamron M118FM06 Machine Vision Lens
Featuring superior optical technology these various series of fixed-focal lenses provide outstanding optical quality and enhanced performance in close-focus situations. With lenses for image sensors from 1/1.8” over 2/3” and 1/1.2 up to 1.1” and pixels as small as 2.5 µm these lenses fulfill the needs of today’s diverse image processing applications. In recent years ITS (Intelligent Transport Systems) has been receiving attention worldwide, with rising demand for high sensitivity and high resolution, which results in larger imager size. These lenses contribute especially to license plate recognition or face recognition for ITS applications.
|Min. pixel pitch||4.0µm|
|Apperture range||1.4 to 16|
|MOD||0.1m - ?|
|Focus type||Manual, with lock|
|Weight||86g +/- 3g|
|Spectral range||Visible Light|
|Optical overall length||61.8mm|
|Operating temperature||-10°C to +60°C|
|Filter thread||M34 P=0.5|
M118FM06 Mega-PixelMachine Vision Lens Downloads
