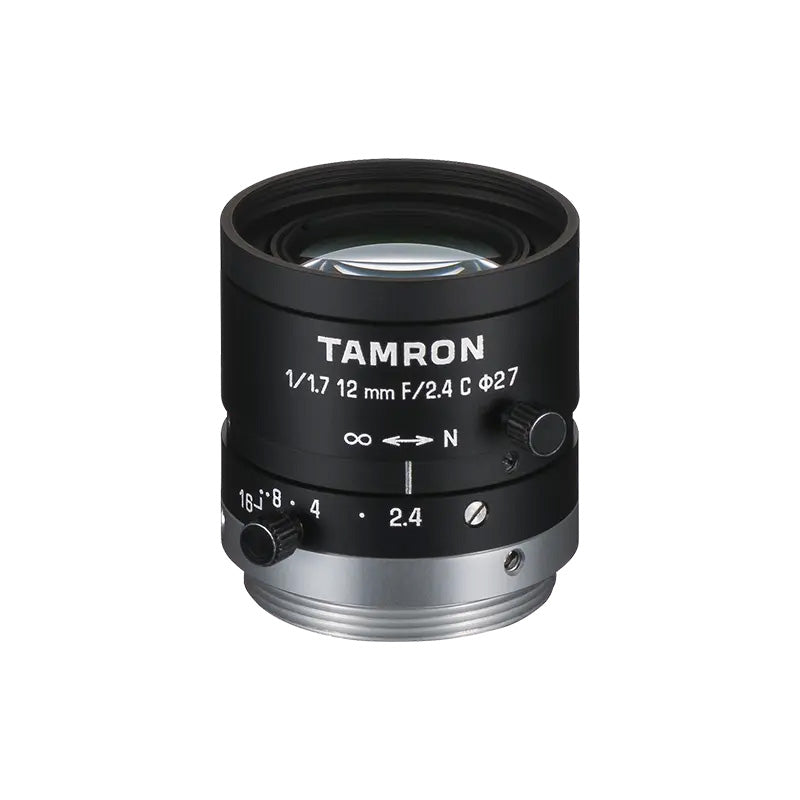

Tamron M117FM12 C-Mount 12mm 1/1.7" F/2.4 Mega-Pixel Machine Vision Lens

TamronSKU: M117FM12

Price:
Sale price$300.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Description

Tamron M117FM12 Machine Vision Lens
The new M117FM-RG machine vision lens series is mainly focused on a compact body size and its rugged mechanical design, making these lenses suitable for use in robotics and other sophisticated applications. The lens series is made for 1/1.7’’image sensors and can resolve a pixel pitch up to 2.4µm. M117FM-RG consists of 7 different focal lengths in order to serve every application. High contrast and resolution, as well as an ultra-low distortion are further key features that offer a great improvement to previous models.

Product specification

Attribute Value
Name M117FM12-RG
Sensor size 1/1.7"
Mount C
Min. pixel pitch 2.4?m
Focal length 12mm
Apperture range 2.4 to 16
MOD 0.1m - ?
Focus Manual with lock
Iris Manual with lock
Weight 40g
Spectral range Visible Light
Optical overall length 45.31mm
Maximum diameter 29mm
Operating temperature -20°C to +60°C
Filter thread M27.0 P=0.5

M117FM12 Mega-PixelMachine Vision Lens Downloads

M117FM12 Tamron Datasheet Download
M117FM12 Tamron Product Catalog Download
