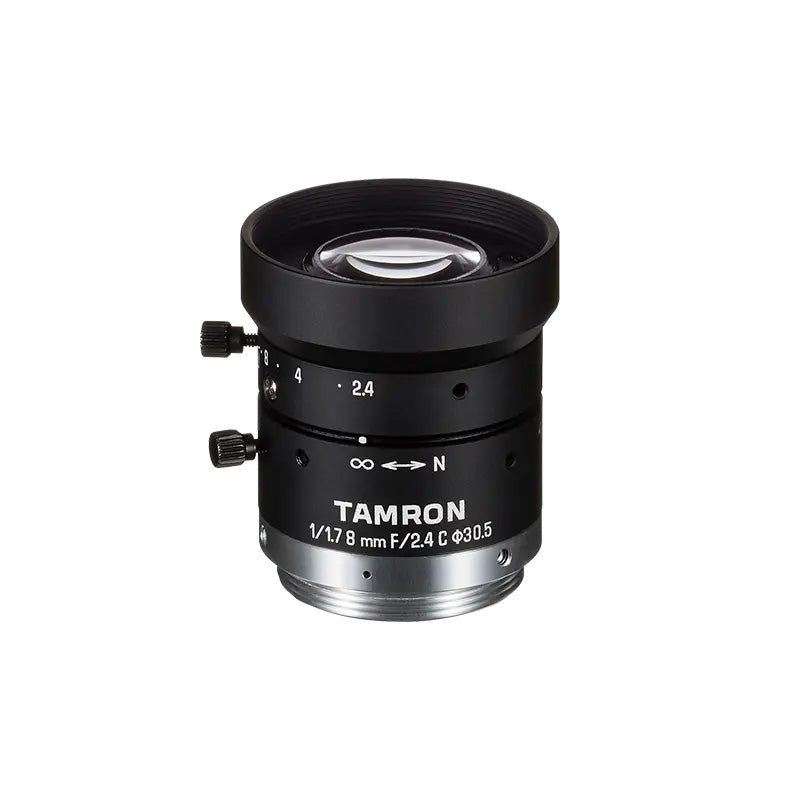

Tamron M117FM08 Machine Vision Lens
The new M117FM-RG machine vision lens series is mainly focused on a compact body size and its rugged mechanical design, making these lenses suitable for use in robotics and other sophisticated applications. The lens series is made for 1/1.7’’image sensors and can resolve a pixel pitch up to 2.4µm. M117FM-RG consists of 7 different focal lengths in order to serve every application. High contrast and resolution, as well as an ultra-low distortion are further key features that offer a great improvement to previous models.

Product specification

Attribute Value
Name M117FM08-RG
Sensor size 1/1.7"
Mount C
Min. pixel pitch 2.4?m
Focal length 8mm
Apperture type Manual
Apperture range 2.4 to 16
MOD 0.1m - ?
Focus type Manual, with lock
Weight 48g
Spectral range Visible Light
Optical overall length 51.43mm
Maximum diameter 32.5mm
Operating temperature -20°C to +60°C
Filter thread M30.5 P=0.5

M117FM08 Mega-PixelMachine Vision Lens Downloads

M117FM08 Tamron Datasheet Download
M117FM08 Tamron Product Catalog Download
