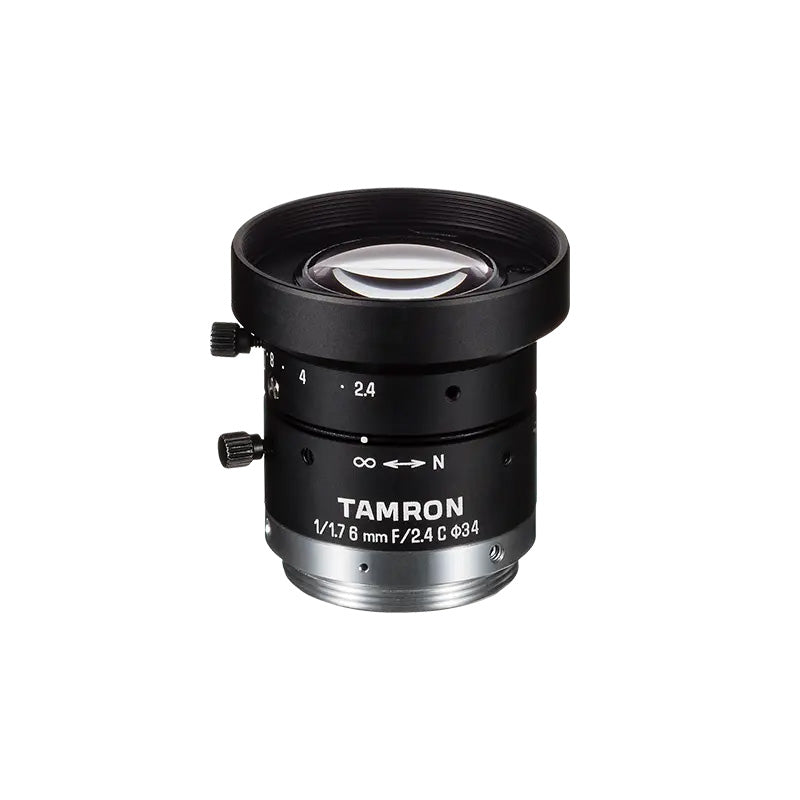

Tamron M117FM06 6 mm f/2.4 - f/16 1/1.7″ Fixed Focal Length Lens

TamronSKU: M117FM06

Price:
Sale price$280.62 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Tamron M117FM06

Tamron M117FM Series machine vision lenses are made for 1/1.7″ image sensors and can resolve a pixel pitch of up to 2.4µm. Built in a compact body with a rugged mechanical design, these are ideal for many machine vision applications, such as robotics and machine vision applications with compact space requirements. These lenses feature high contrast and resolution and ultra-low distortion. The lock screw can be replaced with an embedding-type set screw, reducing the diameter of the lens barrel for an even more compact installation.

M117FM06 Technical Specifications:

Product Line / Series M117FM
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 6 mm
ƒ/N ƒ/2.4 - ƒ/16
Imager Format 1/1.7″
Light Spectrum Visible
Resolution (MP) 6
Resolution (Pixel Size) 2.4 μm
Weight 50
Mount C-Mount
Filter Thread M34-0.5
Minimum Object Distance 100 mm
Magnification Not Specified
Front Diameter Not Specified
Rear Effective Diameter Not Specified
Focus Control Manual with Lock
Iris Control Manual with Lock
Zoom Control None
Focus Range 0.1 m - ∞
Operating Temperature Range -20 to +60 °C
Dimensions 36 × 36 × 33.4 mm
TV Distortion (%) -1.5
FOV @ 1/1.7″ 65° × 50.5°
FOV @ 1/1.8″ 64.2° × 44.9°
FOV @ 1/3″ 56.5° × 43.4°
FOV @ 1/2″ 43.4° × 32.9°
