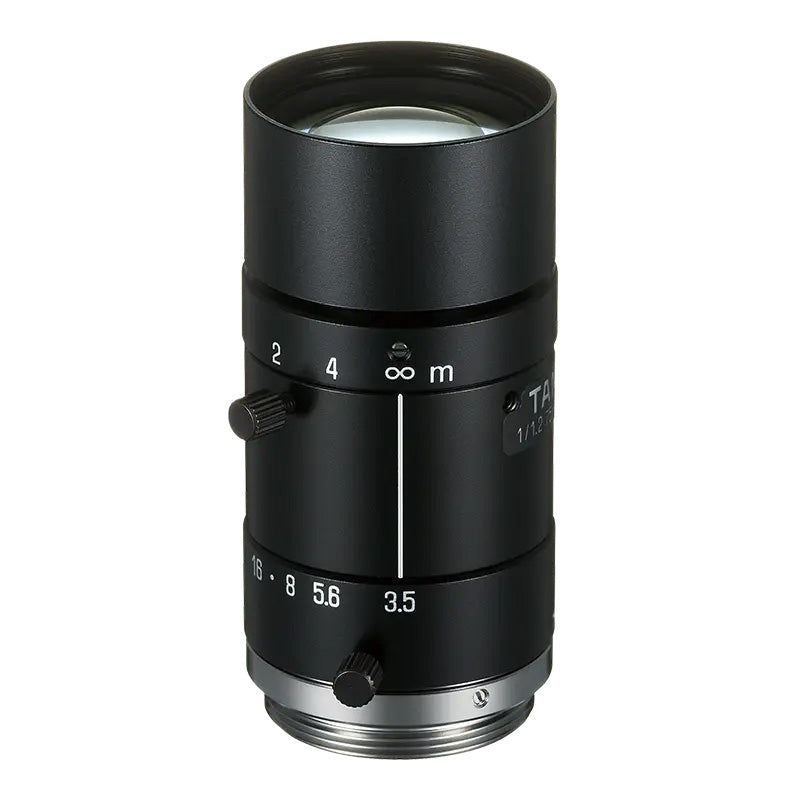

Tamron M112FM75 75 mm f/3.5 - f/16 1/1.2″ or 2/3″ Fixed Focal Length Lens

TamronSKU: M112FM75

Sale price$377.89 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


Tamron M112FM75

The Tamron M112FM lenses are suitable for 1:1.2″ sensors, they've been designed for IMX250, IMX264, IMX174 sensors. The M112FM series is also suitable for 2/3″ imagers with 3.45 µm pixel size due to higher resolution in the center of the image circle. They have a very compact design and are available in 6, 8, 12, 16, 25, 35, 50 and 75 mm focal lengths. The M112FM lenses are resistant to shock and vibrations, thus assuring high optical quality even under rough industrial conditions. With their high durability thanks to metal mounts and components, they are particularly suitable for use in factory automation. The small design and short working distances make applications in the smallest of spaces possible.

M112FM75 Technical Specifications:

Product Line / Series M112FM
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 75 mm
ƒ/N ƒ/3.5 - ƒ/16
Imager Format 1/1.2″ or 2/3″
Light Spectrum Visible
Resolution (MP) 5
Resolution (Pixel Size) 2.5 μm
Weight 81
Mount C-Mount
Filter Thread M27-0.5
Minimum Object Distance 700 mm
Magnification Not Specified
Front Diameter Not Specified
Rear Effective Diameter Not Specified
Focus Control Manual with Lock
Iris Control Manual with Lock
Zoom Control None
Focus Range 0.7 m - ∞
Operating Temperature Range -20 to +60 °C
Dimensions 29 × 29 × 65 mm
TV Distortion (%) 0.03
FOV @ 1/1.2″ (4:3) 8.1° × 6.1°
FOV @ 1/1.2″ (16:9) 8.9° × 5°
FOV @ 2/3″ (4:3) 7.3° × 4.1°
FOV @ 2/3″ (16:9) 7.3° × 4.1°
