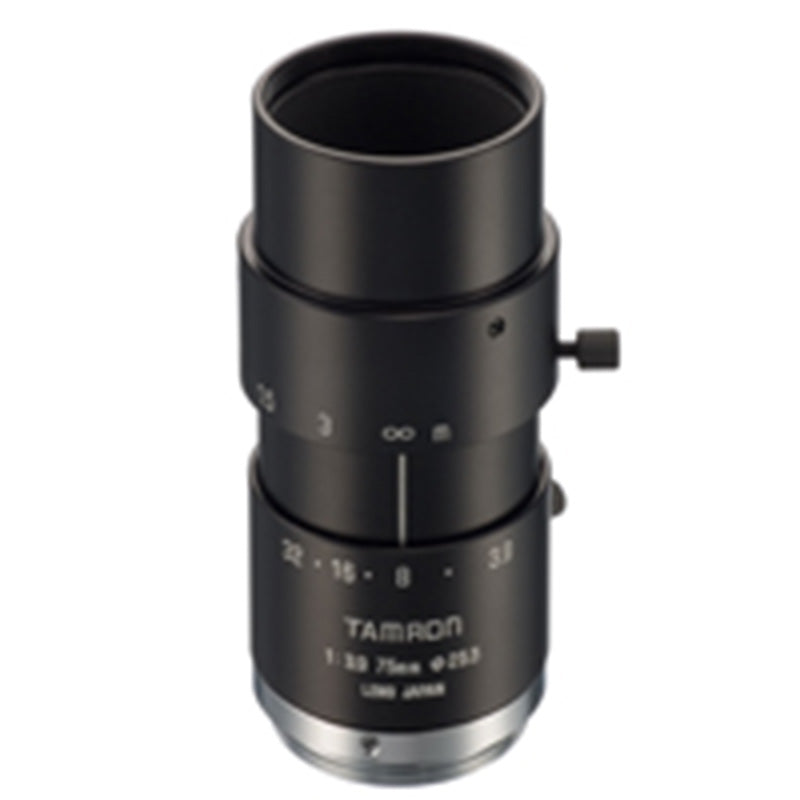

Tamron 23FM75L
Built for factory automation and machine vision applications, T23FM-L lenses feature a screw mechanism to lock-in the focus and iris rings. Ideal for use in an environment experiencing long periods of frequent vibrations. Utilizing a compact body with superior optics, these high resolution lenses are designed to fit today's machinery dimensions and needs only a minimum focusing range of 0.44m to achieve outstanding quality. These fixed focal length lenses provide oustanding optical quality and enhanced performance in close-focus situations.
23FM75L Technical Specifications:
Product Line / Series | 23FM-L |
Lens Type | Fixed Focal Length |
IP Rating | Not Specified |
Focal Length | 75 mm |
ƒ/N | ƒ/3.9 - ƒ/32 |
Imager Format | 2/3″ |
Light Spectrum | Not Specified |
Resolution (MP) | 1.3 |
Resolution (Pixel Size) | 2.5 μm |
Weight | 68 |
Mount | C-Mount |
Filter Thread | M25.5-0.5 |
Minimum Object Distance | 500 mm |
Magnification | Not Specified |
Front Diameter | 18.4 mm |
Rear Effective Diameter | 10.7 mm |
Focus Control | Manual with Lock |
Iris Control | Manual with Lock |
Zoom Control | None |
Focus Range | 0.5 m - ∞ |
Operating Temperature Range | -10 to +70 °C |
Dimensions | 30.5 × 30.5 × 66 mm |
TV Distortion (%) | Not Specified |
FOV @ 1/3″ | 3.5° × 2.5° |
FOV @ 1/2″ | 5° × 3.5° |
FOV @ 2/3″ | 6.9° × 5.2° |
