Tamron 23FM35L 16 mm f/1.4 - f/16 2/3″ Fixed Focal Length Lens

TamronSKU: 23FM35L

Price:
Sale price$202.57 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

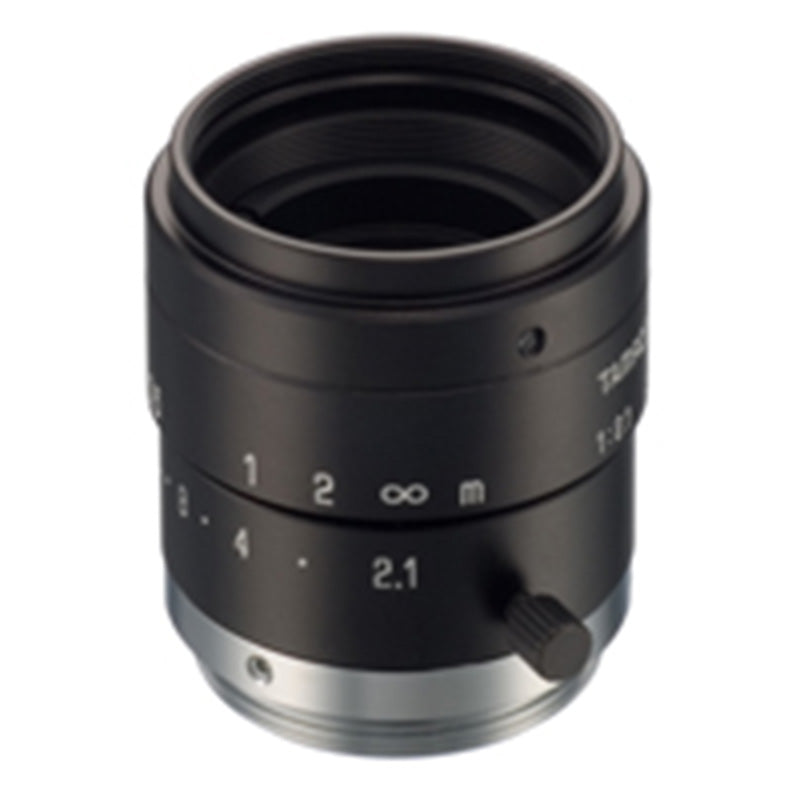

Tamron 23FM35L

Built for factory automation and machine vision applications, T23FM-L lenses feature a screw mechanism to lock-in the focus and iris rings. Ideal for use in an environment experiencing long periods of frequent vibrations. Utilizing a compact body with superior optics, these high resolution lenses are designed to fit today's machinery dimensions and needs only a minimum focusing range of 0.44m to achieve outstanding quality. These fixed focal length lenses provide oustanding optical quality and enhanced performance in close-focus situations.

23FM35L Technical Specifications:

Product Line / Series 23FM-L
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 35 mm
ƒ/N ƒ/2.1 - ƒ/22
Imager Format 2/3″
Light Spectrum Not Specified
Resolution (MP) 1.3
Resolution (Pixel Size) 2.5 μm
Weight 44
Mount C-Mount
Filter Thread M25.5-0.5
Minimum Object Distance 300 mm
Magnification Not Specified
Front Diameter 16 mm
Rear Effective Diameter 10.3 mm
Focus Control Manual with Lock
Iris Control Manual with Lock
Zoom Control None
Focus Range 0.3 m - ∞
Operating Temperature Range -10 to +60 °C
Dimensions 30.5 × 30.5 × 32 mm
TV Distortion (%) Not Specified
FOV @ 1/3″ 7.8° × 5.9°
FOV @ 1/2″ 10.4° × 7.8°
FOV @ 2/3″ 14.3° × 10.8°
