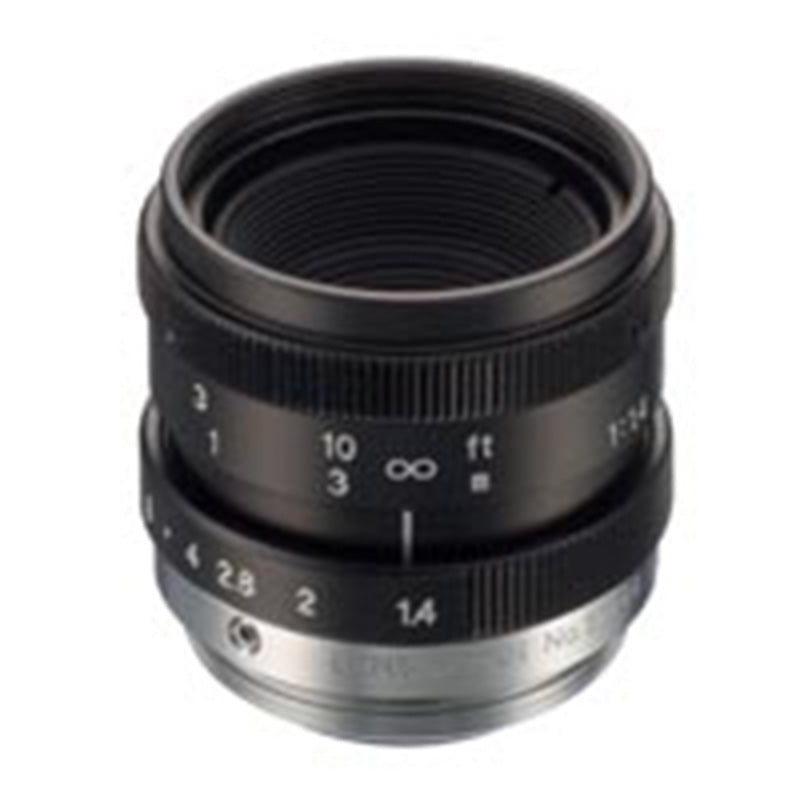

Tamron 23FM16L 12 mm f/1.8 - f/16 2/3″ Fixed Focal Length Lens

TamronSKU: 23FM16L

Sale price$208.32 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


Tamron 23FM16L

Built for factory automation and machine vision applications, T23FM-L lenses feature a screw mechanism to lock-in the focus and iris rings. Ideal for use in an environment experiencing long periods of frequent vibrations. Utilizing a compact body with superior optics, these high resolution lenses are designed to fit today's machinery dimensions and needs only a minimum focusing range of 0.44m to achieve outstanding quality. These fixed focal length lenses provide oustanding optical quality and enhanced performance in close-focus situations.

23FM16L Technical Specifications:

Product Line / Series 23FM-L
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 16 mm
ƒ/N ƒ/1.4 - ƒ/16
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 1.3
Resolution (Pixel Size) 2.5 μm
Weight 48
Mount C-Mount
Filter Thread M30.5-0.5
Minimum Object Distance 290 mm
Magnification Not Specified
Front Diameter 11.5 mm
Rear Effective Diameter 11.5 mm
Focus Control Manual with Lock
Iris Control Manual with Lock
Zoom Control None
Focus Range 0.29 m - ∞
Operating Temperature Range -10 to +50 °C
Dimensions 30.5 × 30.5 × 25 mm
TV Distortion (%) Not Specified
FOV @ 1/3″ 16.9° × 12.7°
FOV @ 1/2″ 22.5° × 16.9°
FOV @ 2/3″ 30.9° × 23.4°
