SX30-530-L | SX30 Prox Light, 30mm, 530nm Green, 10 x 50 Degree Lens

Smart Vision LightsSKU: SVL SX30-530-L
Lead Time: 3 Business Days

Price:
Sale price$454.00 USD

Shipping calculated at checkout

Downloads

Accessories

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

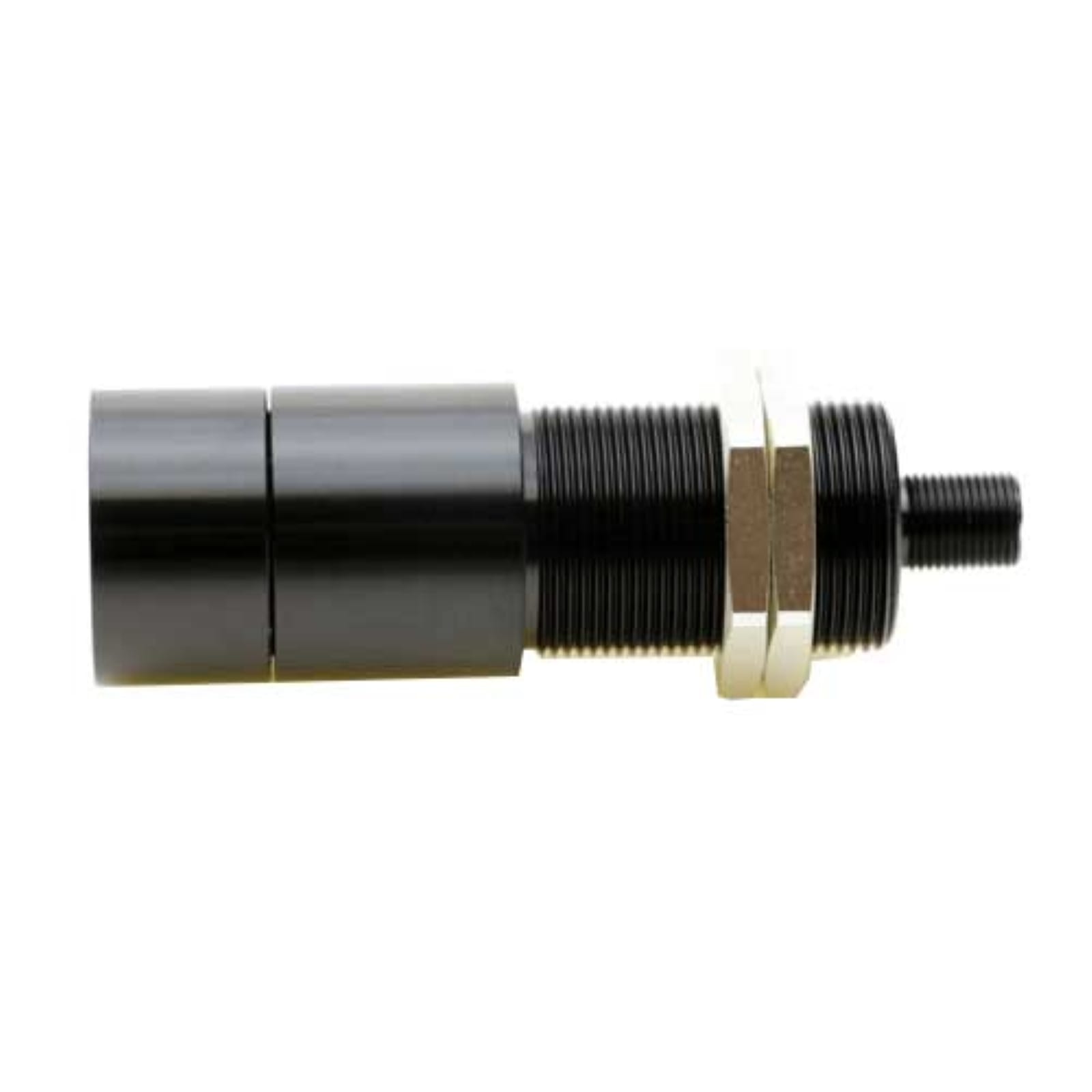

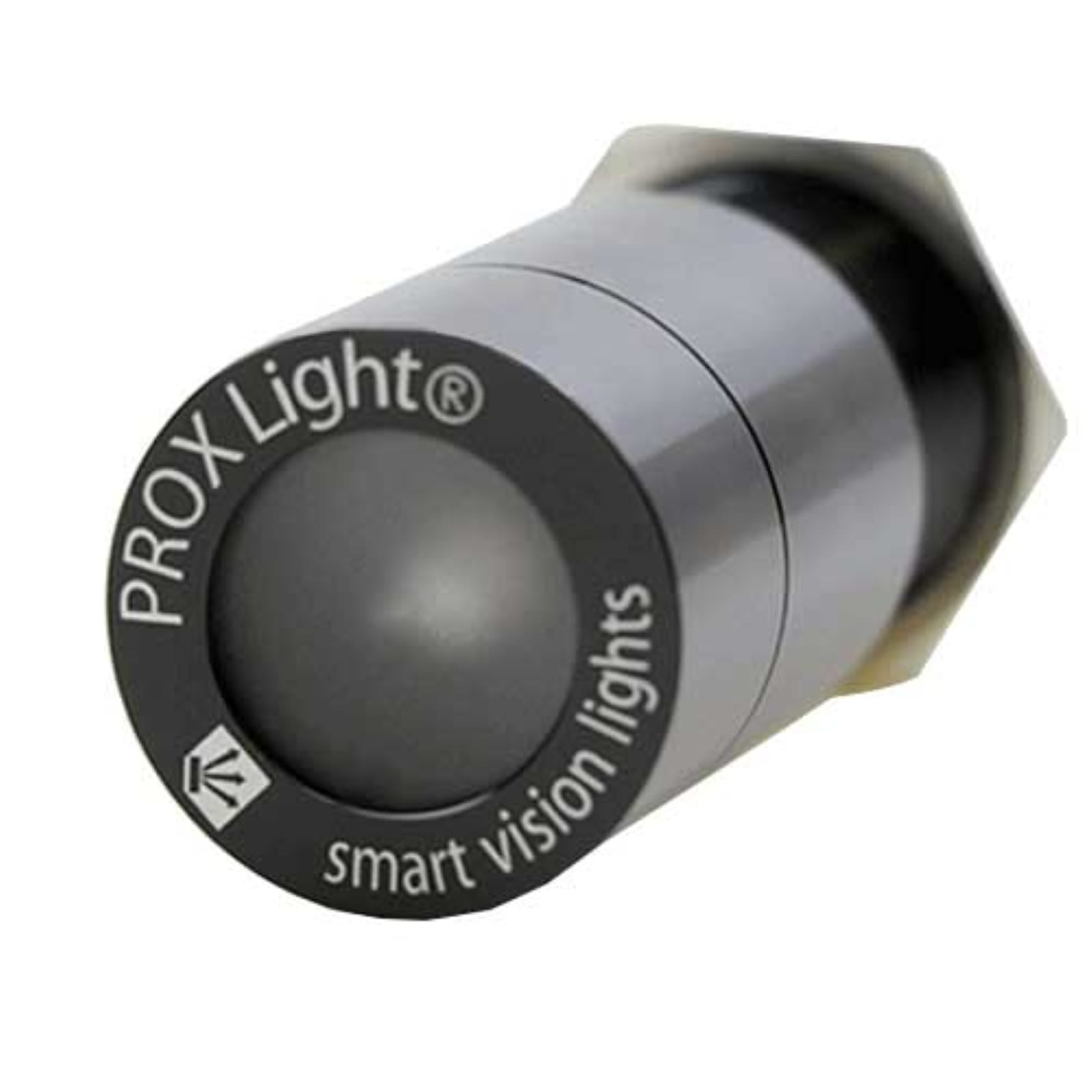

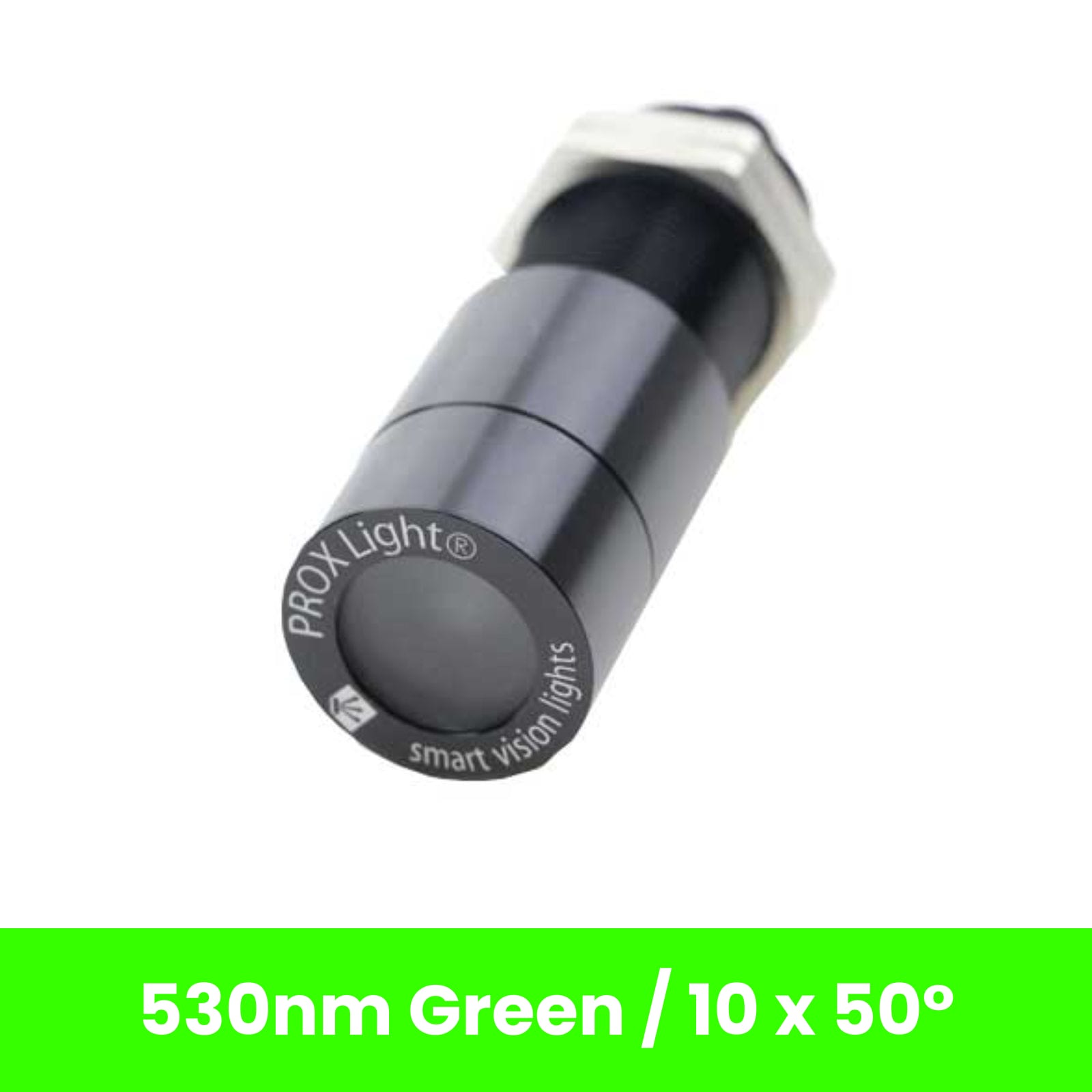

The SX30-530-L machine vision light from Smart Vision Lights is a prox light in SVL's SX30 spot light series. It is a compact light with an industry-standard M30 x 1.5 threaded barrel mount. It features SVL's SmartDriver for constant on or strobe operation modes. The intensity of the light can be adjusted using an analog signal. The SX30-530-L light has a 30mm diameter and is in the 530nm Green color with a lens angle of 10 x 50 Degree. The SX30 series is available in White, 365nm UV, 395nm UV, 470nm Blue, 505nm Cyan, 530nm Green, 625nm Red, 850nm IR, and 940nm IR color variants and 10°, 25°, and 10° x 50° lens angles. Further customizations can be performed upon request from Machine Vision Direct.

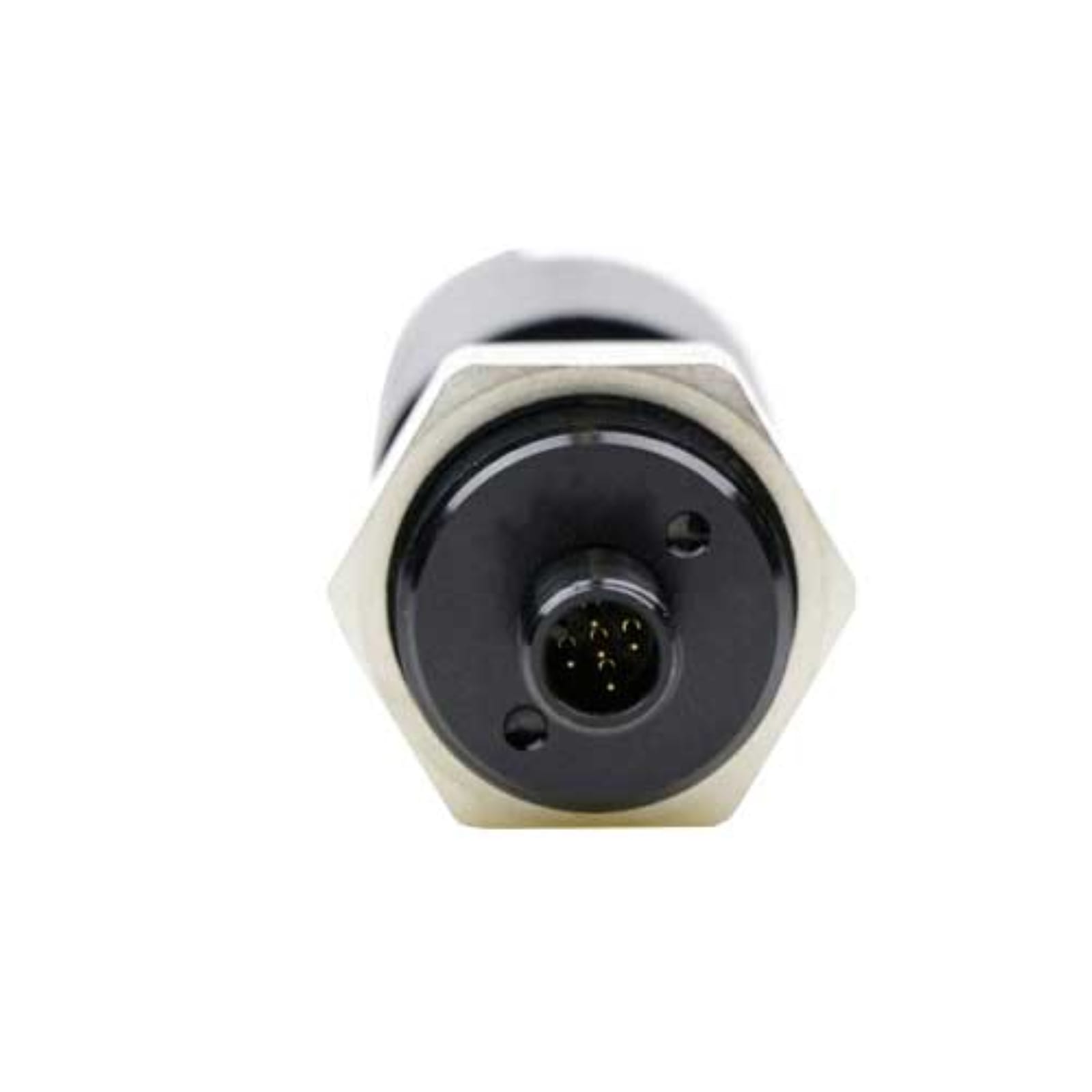

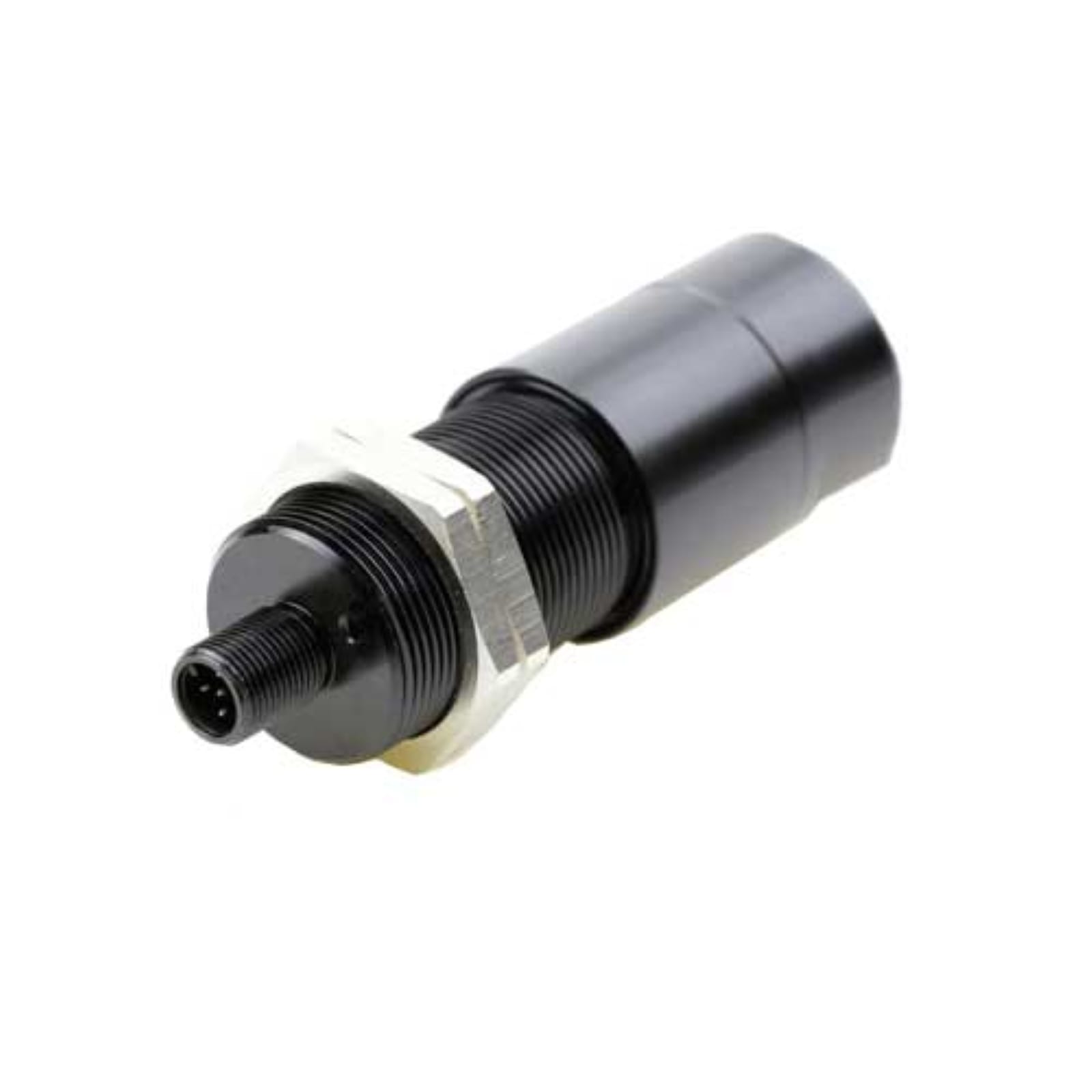

The light features a 5 Pin M12 Male Connector on the end of the light. We recomend our 5PM12 series of cables (5PM12-5, 5PM12-10, or 5PM12-15). Standard M12 cables may not be able to handle the current that these lights require

Technical Specifications
