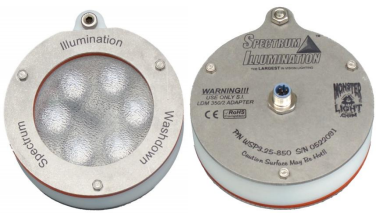

WMSP3.25 – 3.25" Washdown Spot Light

Spectrum IlluminationSKU: WMSP3.25-WHI

Color: White
Price:
Sale price$1,000.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

WMSP3.25 – 3.25" Washdown Spot Light

Features:

• External driver/controller included
• HS (High Speed) Strobe Technology
• High Power LED’s (24 VDC)
• DIN rail mount driver/controller
• M12 connector for quick disconnect
• IP68 and FDA Compliant
• Available in 7 colors, Ultra-Violet, and Infrared
• Available in 4 sizes and 2 Spot Lights
• 3 Year Warranty* – 100,000 hours

Caution –
The supplied LDM driver must be used for both continuous or strobe operations! Do not connect the light directly to 24VDC! Operating the light without the supplied LDM driver will result in premature LED failure and will void the warranty.

Spectrum Illumination WMSP3.25 Downloads:

 Spectrum Illumination BL14 Datasheet | Machine Vision Direct
Spectrum Illumination BL14 CAD PDF | Machine Vision Direct
Spectrum Illumination BL14 CAD DXF | Machine Vision Direct
Spectrum Illumination BL14 CAD STEP MODEL | Machine Vision Direct

Contact Machine Vision Direct for Custom Options

How to Order a Custom Configuration:

If you would prefer to order fixtures with optional (non-standard) lenses, diffusers, drivers or cable: Please select options from the tables below.

Specify Lens type
Type Description List Price
12 LED Optics 12 STD
16 LED Optics 16 Frosted add $0
23 LED Optics 23 Frosted add $0
30 LED Optics 30 add $0
39 LED Optics 39 Frosted add $0
50 LED Optics 50 add $0
F LED Optics Wide Angle add $0
L LED Optics Line add $0
R LED Reflector 90 add $0
R60 LED Reflector 60 add $0
Specify Diffuser option
Type Description List Price
SD Standard Diffuser STD
CC Clear Cover add $50
WD White Diffuser add $50
Specify Cable option
Type Description List Price
WMC4 Washdown Monster Cable 4 meter STD
WMC8 Washdown Monster Cable 8 meter add $55
WMC15 Washdown Monster Cable 15 meter add $75
WMC30", 115 Washdown Monster Cable 30 meter add $165
Specify Driver option
Type Description List Price
LDM350/3 LDM350/3 STD
A ALDMxxxx driver add $85
V VLDMxxxx driver add $85
RV RVLDMxxxx driver add $100
