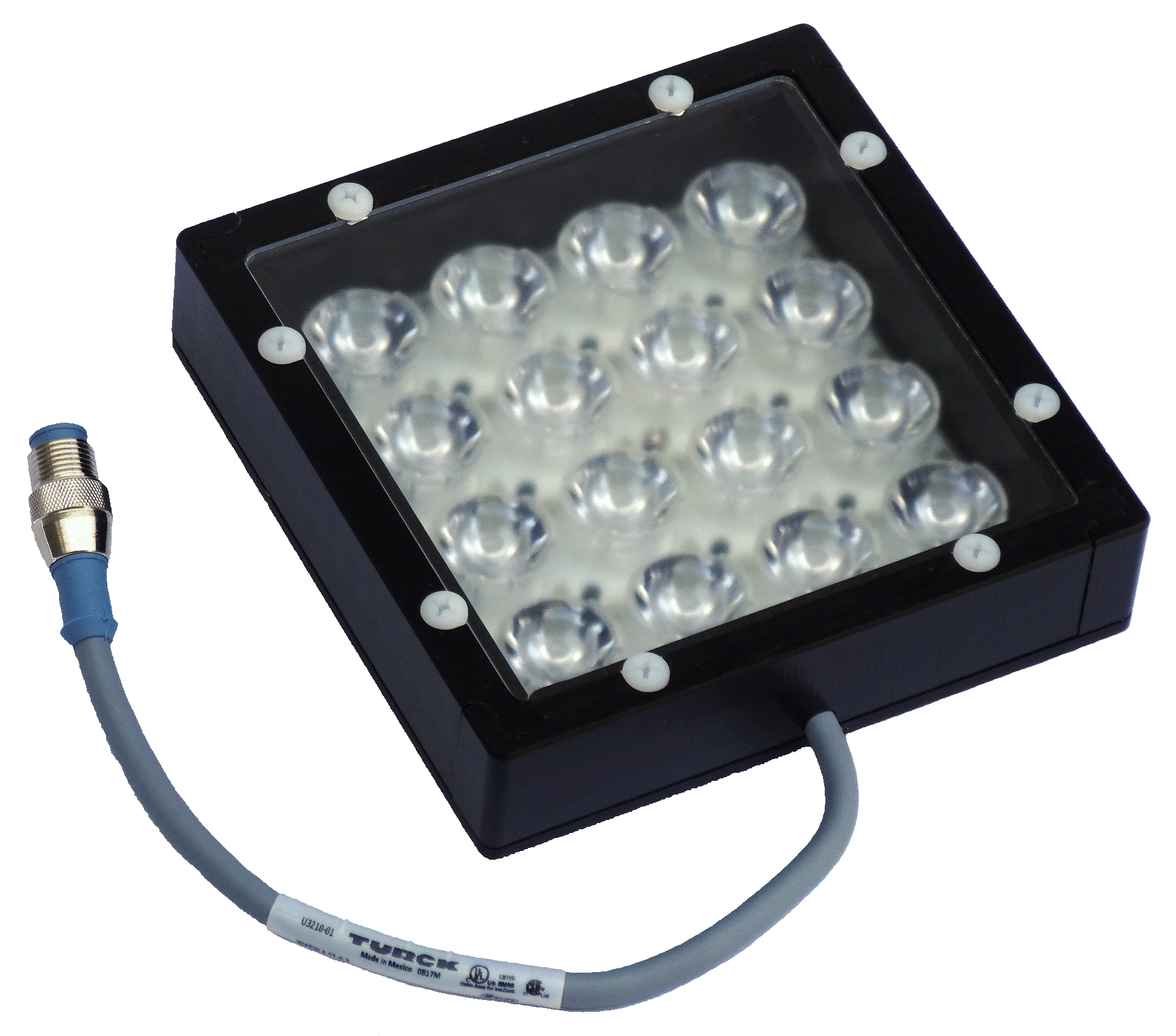

Spectrum Illumination MLL44 – 4" X 4" MONSTER SERIES LINEAR LIGHT
Roll over image to zoom in Click on image to zoom
Spectrum Illumination MLL44 – 4" X 4" MONSTER SERIES LINEAR LIGHT

MLL44 – 4" X 4" Monster Series Linear Light

Spectrum IlluminationSKU: MLL44-WHI
Color: White
Price:
$1,400.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

MLL44 – 4" X 4" Monster Series Linear Light

Features:

• Internal Driver – Plug & Play (24VDC)
• Auto Burst Technology
• High Power LED’s
• M12 connector for quick disconnect
• Available in 4 colors, Ultra-Violet, and Infrared
• 0 – 10 VDC intensity Control
• Potentiometer Intensity Control
• 10 Year Warranty* – 100,000 hours



Spectrum Illumination MLL44 Downloads:

 Spectrum Illumination BL14 Datasheet | Machine Vision Direct
Spectrum Illumination BL14 CAD PDF | Machine Vision Direct
Spectrum Illumination BL14 CAD DXF | Machine Vision Direct
Spectrum Illumination BL14 CAD STEP MODEL | Machine Vision Direct

Contact Machine Vision Direct for Custom Options

How to Order a Custom Configuration:

If you would prefer to order fixtures with optional (non-standard) lenses, diffusers, drivers or cable: Please select options from the tables below.

Example Part Number:
MLL44-WHI/R60/A



Base Part Number Lens Type Diffuser Type Cable Type Driver Type
MLL44-WHI R60 SD (Std) MC4 (Std) A

4" X 4" Linear Light White LED's w/ 60° reflectors - Package includes light, ALDM 700, and 4 meter cable



Specify Lens type
Type Description List Price
12 LED Optics 12 STD
16 LED Optics 16 Frosted add $0
23 LED Optics 23 Frosted add $0
30 LED Optics 30 add $0
39 LED Optics 39 Frosted add $0
50 LED Optics 50 add $0
F LED Optics Wide Angle add $0
L LED Optics Line add $0
R LED Reflector 90 add $0
R60 LED Reflector 60 add $0
Specify Diffuser option
Type Description List Price
SD Standard Diffuser STD
CC Clear Cover add $25
WD White Diffuser add $25
TFD Thin Film Diffuser add $25
P Polarizer add $25
Specify Cable option
Type Description List Price
MC4 Monster Cable 4 meter STD
MC8 Monster Cable 8 meter add $40
MC15 Monster Cable 15meter add $60
MC30 Monster Cable 30 meter add $195
MCHF4 Monster High Flex Cable 4 meter add $75
MCHF8 Monster High Flex Cable 8 meter add $100
MCHF15 Monster High Flex Cable 15 meter add $200
MCHF30 Monster High Flex Cable 30 meter add $380
Specify Driver option
Type Description List Price
LDM1400 LDM1400 driver STD
A ALDMxxxx driver add $85
V VLDMxxxx driver add $85
RV RVLDMxxxx driver add $100
