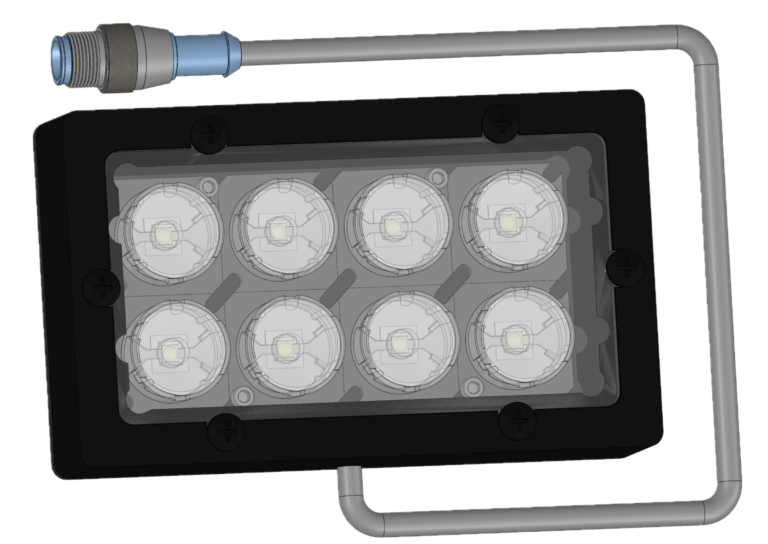

MLL24 – 2" X 4" Monster Series Linear Light

Spectrum IlluminationSKU: MLL24-WHI

Color: White
Sale price$725.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


MLL24 – 2" X 4" Monster Series Linear Light


• Internal Driver – Plug & Play (24VDC)
• Auto Burst Technology
• High Power LED’s
• M12 connector for quick disconnect
• Available in 4 colors, Ultra-Violet, and Infrared
• 0 – 10 VDC intensity Control
• Potentiometer Intensity Control
• 10 Year Warranty* – 100,000 hours


Spectrum Illumination MLL24 Downloads:

 Spectrum Illumination BL14 Datasheet | Machine Vision Direct
Spectrum Illumination BL14 CAD PDF | Machine Vision Direct
Spectrum Illumination BL14 CAD DXF | Machine Vision Direct
Spectrum Illumination BL14 CAD STEP MODEL | Machine Vision Direct

Contact Machine Vision Direct for Custom Options

How to Order a Custom Configuration:

If you would prefer to order fixtures with optional (non-standard) lenses, diffusers, drivers or cable: Please select options from the tables below.

Example Part Number:


Base Part Number Lens Type Diffuser Type Cable Type Driver Type
MLL24-WHI R60 SD (Std) MC4 (Std) A

2" X 4" Linear Light White LED's w/ 60° reflectors - Package includes light, LDM 700, and 4 meter cable


Specify Lens type
Type Description List Price
12 LED Optics 12 STD
16 LED Optics 16 Frosted add $0
23 LED Optics 23 Frosted add $0
30 LED Optics 30 add $0
39 LED Optics 39 Frosted add $0
50 LED Optics 50 add $0
F LED Optics Wide Angle add $0
L LED Optics Line add $0
R LED Reflector 90 add $0
R60 LED Reflector 60 add $0
Specify Diffuser option
Type Description List Price
SD Standard Diffuser STD
CC Clear Cover add $25
WD White Diffuser add $25
TFD Thin Film Diffuser add $25
P Polarizer add $25
Specify Cable option
Type Description List Price
MC4 Monster Cable 4 meter STD
MC8 Monster Cable 8 meter add $40
MC15 Monster Cable 15 meter add $60
MC30 Monster Cable 30 meter add $195
MCHF4 Monster High Flex Cable 4 meter add $75
MCHF8 Monster High Flex Cable 8 meter add $100
MCHF15 Monster High Flex Cable 15 meter add $200
MCHF30 Monster High Flex Cable 30 meter add $380
Specify Driver option
Type Description List Price
LDM700 LDM700 driver STD
A ALDMxxxx driver add $85
V VLDMxxxx driver add $85
RV RVLDMxxxx driver add $100
