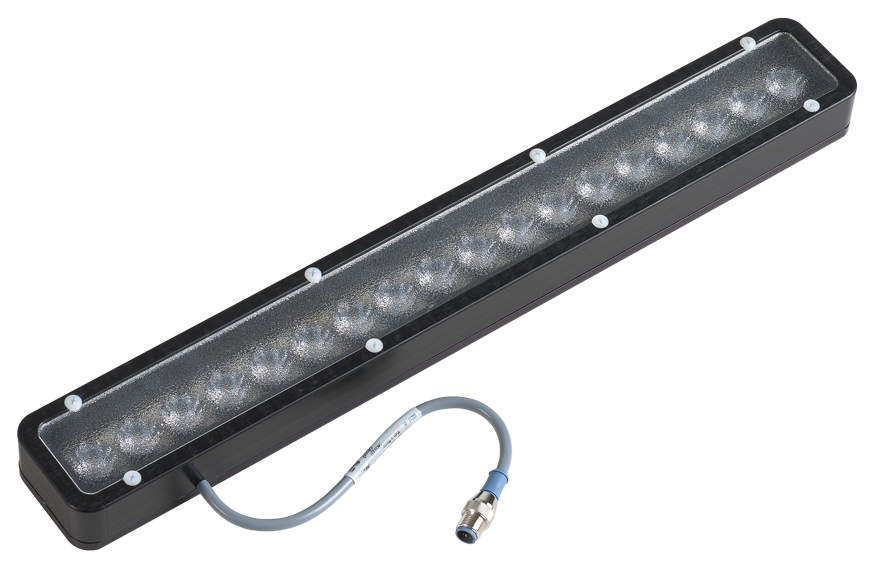

MLL117.25 – 17.25" Monster Series Linear Light

Spectrum IlluminationSKU: MLL117.25-WHI
Lead time: 1-2 Weeks

Color: White


MLL117.25 – 17.25" Monster Series Linear Light


•Can be ordered with 2X or even 3X continuous drive current of the standard MLL111.5
•External driver/controller included
•High speed Strobe Technology
•High Power LED’s
•DIN rail mount driver/controller (24 VDC)
•M12 connector for quick disconnect
•Available in 8 colors, Ultra-Violet, Infrared
•10 Year Warranty* – 100,000 hours

Caution –
The supplied LDM driver must be used for both continuous or strobe operations! Do not connect the light directly to 24VDC! Operating the light without the supplied LDM driver will result in premature LED failure and will void the warranty.

Spectrum Illumination MLL117.25 Downloads:

 Spectrum Illumination BL14 Datasheet | Machine Vision Direct
Spectrum Illumination BL14 CAD PDF | Machine Vision Direct
Spectrum Illumination BL14 CAD DXF | Machine Vision Direct
Spectrum Illumination BL14 CAD STEP MODEL | Machine Vision Direct

Contact Machine Vision Direct for Custom Options

How to Order a Custom Configuration:

If you would prefer to order fixtures with optional (non-standard) lenses, diffusers, drivers or cable: Please select options from the tables below.

Specify Lens type
Type Description List Price
12 LED Optics 12 STD
16 LED Optics 16 Frosted add $0
23 LED Optics 23 Frosted add $0
30 LED Optics 30 add $0
39 LED Optics 39 Frosted add $0
50 LED Optics 50 add $0
F LED Optics Wide Angle add $0
L LED Optics Line add $0
R LED Reflector 90 add $0
R60 LED Reflector 60 add $0
Specify Diffuser option
Type Description List Price
SD Standard Diffuser STD
CC Clear Cover add $25
TFD Thin Film Diffuser add $25
WD White Diffuser add $25
P Polarizer add $50
Specify Cable option
Type Description List Price
MC4 Monster Cable 4 meter STD
MC8 Monster Cable 8 meter add $40
MC15 Monster Cable 15 meter add $60
MC30 Monster Cable 30 meter add $195
MCHF4 Monster High Flex Cable 4 meter add $75
MCHF8 Monster High Flex Cable 8 meter add $100
MCHF15 Monster High Flex Cable 15 meter add $200
MCHF30 Monster High Flex Cable 30 meter add $380
Specify Driver option
Type Description List Price
LDM1050 LDM1050 STD
A ALDMxxxx driver add $85
V VLDMxxxx driver add $85
RV RVLDMxxxx driver add $100
