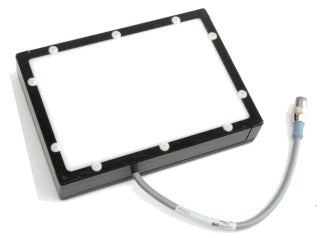

MBL46 – 4" X 6" Monster Series Back Light

Spectrum IlluminationSKU: MBL46-WHI

Color: White
Sale price$1,700.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


MBL46 – 4" X 6" Monster Series Back Light


•External driver/controller included
•High speed strobe technology
•High power LED’s (24 VDC)
•DIN rail mount driver/controller
•M12 connector for quick disconnect
•Available in 4 colors and Infrared
•10 Year Warranty* – 100,000 hours

Caution –
The supplied LDM driver must be used for both continuous or strobe operations! Do not connect the light directly to 24VDC! Operating the light without the supplied LDM driver will result in premature LED failure and will void the warranty.

Spectrum Illumination MBL46 Downloads:

 Spectrum Illumination BL14 Datasheet | Machine Vision Direct
Spectrum Illumination BL14 CAD PDF | Machine Vision Direct
Spectrum Illumination BL14 CAD DXF | Machine Vision Direct
Spectrum Illumination BL14 CAD STEP MODEL | Machine Vision Direct

Contact Machine Vision Direct for Custom Options

How to Order a Custom Configuration:

If you would prefer to order fixtures with optional (non-standard) diffusers or cable: Please select options from the tables below.

Example Part Number:
MBL46-470 / P / V / MC15


Base Part Number Diffuser Type Cable Type Driver Type
MBL46-470 P MC15 V

Example shown: 4" x 6" Back Light with blue LEDs, polarizer, variable driver and 15 meter cable.


Specify Diffuser option
Type Description List Price
SD Standard Diffuser add $25
CC Clear Cover add $25
TFD Thin Film Diffuser add $25
WD White Diffuser STD
P Polarizer add $25
Specify Cable option
Type Description List Price
MC4 Monster Cable 4 meter STD
MC8 Monster Cable 8 meter add $40
MC15 Monster Cable 15 meter add $60
MC30 Monster Cable 30 meter add $195
MCHF4 Monster High Flex Cable 4 meter add $75
MCHF8 Monster High Flex Cable 8 meter add $100
MCHF15 Monster High Flex Cable 15 meter add $200
MCHF30 Monster High Flex Cable 30 meter add $380
Specify Driver option
Type Description List Price
LDM2100 LDM2100 STD
A ALDMxxxx driver add $85
V VLDMxxxx driver add $85
RV RVLDMxxxx driver add $100
