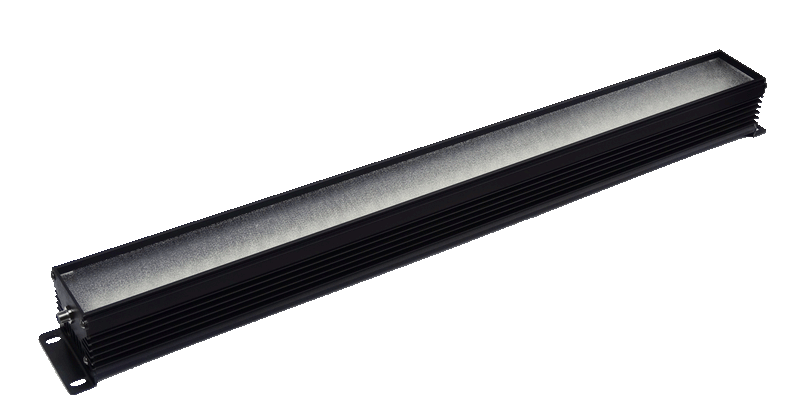

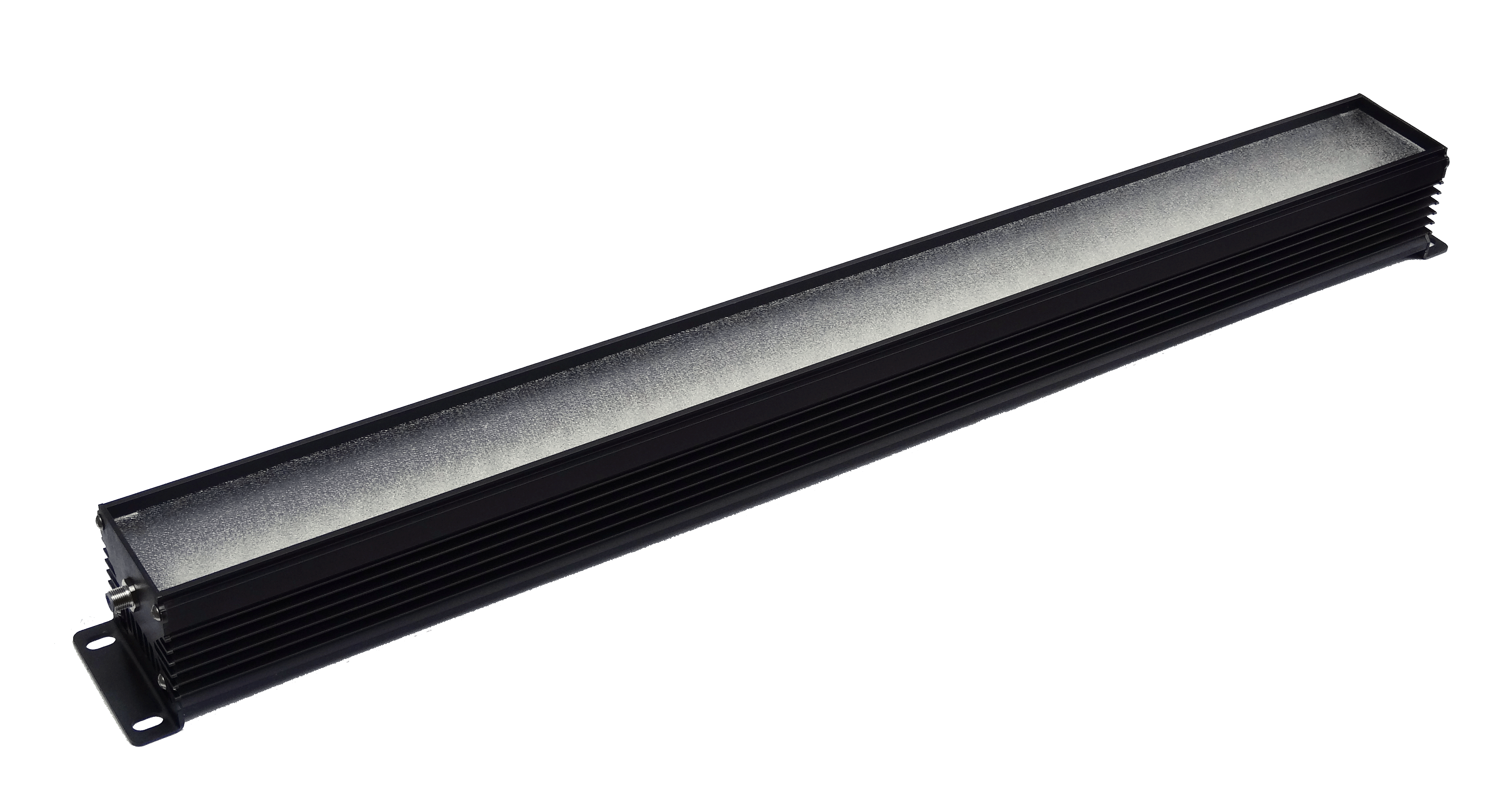

HLL134.5 – 34.5" Monster Series Linear Light

Spectrum IlluminationSKU: HLL134.5-WHI

Color: White
Sale price$2,250.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


HLL134.5 – 34.5" Monster Series Linear Light


•Can be ordered with 2X or even 3X continuous drive current of the standard MLL111.5
•External driver/controller included
•High speed Strobe Technology
•High Power LED’s
•DIN rail mount driver/controller (24 VDC)
•M12 connector for quick disconnect
•Available in 8 colors, Ultra-Violet, Infrared
•10 Year Warranty* – 100,000 hours

Caution –
The supplied LDM driver must be used for both continuous or strobe operations! Do not connect the light directly to 24VDC! Operating the light without the supplied LDM driver will result in premature LED failure and will void the warranty.

Spectrum Illumination HLL134.5 Downloads:

 Spectrum Illumination BL14 Datasheet | Machine Vision Direct
Spectrum Illumination BL14 CAD PDF | Machine Vision Direct
Spectrum Illumination BL14 CAD DXF | Machine Vision Direct
Spectrum Illumination BL14 CAD STEP MODEL | Machine Vision Direct

Contact Machine Vision Direct for Custom Options

How to Order a Custom Configuration:

If you would prefer to order fixtures with optional (non-standard) lenses, diffusers, drivers or cable: Please select options from the tables below.

Example Part Number:


Base Part Number Lens Type Diffuser Type Cable Type Driver Type
HLL134.5-WHI R60 SD (Std) MC4 (Std) A

34.5" Linear Light White LED's w/ 60° reflectors - Package includes light, ALDM 2100, and 4 meter cable


Specify Diffuser option
Type Description List Price
SD Standard Diffuser STD
CC Clear Cover add $50
WD White Diffuser add $50
Specify Cable option
Type Description List Price
MC4 Monster Cable 4 meter STD
MC8 Monster Cable 8 meter add $40
MC15 Monster Cable 15 meter add $60
MC30 Monster Cable 30 meter add $195
MCHF4 Monster High Flex Cable 4 meter add $75
MCHF8 Monster High Flex Cable 8 meter add $100
MCHF15 Monster High Flex Cable 15 meter add $200
MCHF30 Monster High Flex Cable 30 meter add $380
Specify Driver option
Type Description List Price
LDM2100 LDM2100 STD
LDM4200 LDM4200 (optional 2X drive current) add $0
A ALDMxxxx driver add $85
V VLDMxxxx driver add $85
RV RVLDMxxxx driver add $100
