EBL210 – 2" X 10" Conveyor Series Back Light

Spectrum IlluminationSKU: EBL210-WHI

Color: White
Price:
Sale price$925.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

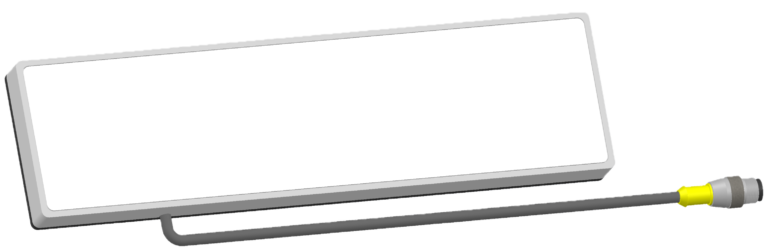

EBL210 – 2" X 10" Conveyor Series Back Light

Features:

• QC Conveyor direct fit & approved
• No driver required
• HS (High Speed) Strobe Technology
• Low Profile
• No surface screws
• Direct Connect 24 VDC
• M12 connector for quick disconnect
• Available in 4 colors and Infrared
• 10 Year Warranty*

Spectrum Illumination EBL210 Downloads:

 Spectrum Illumination BL14 Datasheet | Machine Vision Direct
Spectrum Illumination BL14 CAD PDF | Machine Vision Direct
Spectrum Illumination BL14 CAD DXF | Machine Vision Direct
Spectrum Illumination BL14 CAD STEP MODEL | Machine Vision Direct

Contact Machine Vision Direct for Custom Options

How to Order a Custom Configuration:

If you would prefer to order fixtures with optional (non-standard) diffusers or cable: Please select options from the tables below.

Example Part Number:
EBL210-470 / CC / SC15



Base Part Number Diffuser Type Cable Type
EBL210-470 CC SC15

2" x 10" Conveyor Back Light with Blue LEDs, Clear Cover and 15 meter cable.



Specify Diffuser option
Type Description List Price
WD White Diffuser STD
CC Clear Cover add $25
SD Standard Diffuser add $25
Specify Cable option
Type Description List Price
CTL-.5 Camera to Light Cable 0.5 Meter (Cognex) add $35
CTL-1 Camera to Light Cable 1 Meter (Cognex) add $35
CTL-2 Camera to Light Cable 2 Meter (Cognex) add $40
SC4 Standard Cable 4 meter STD
SC8 Standard Cable 8 meter add $50
SC15 Standard Cable 15 meter add $70
SC30 Standard Cable 30 meter add $110
SCHF4 Standard High Flex Cable 4 meter add $75
SCHF8 Standard High Flex Cable 8 meter add $100
SCHF15 Standard High Flex Cable 15 meter add $150
