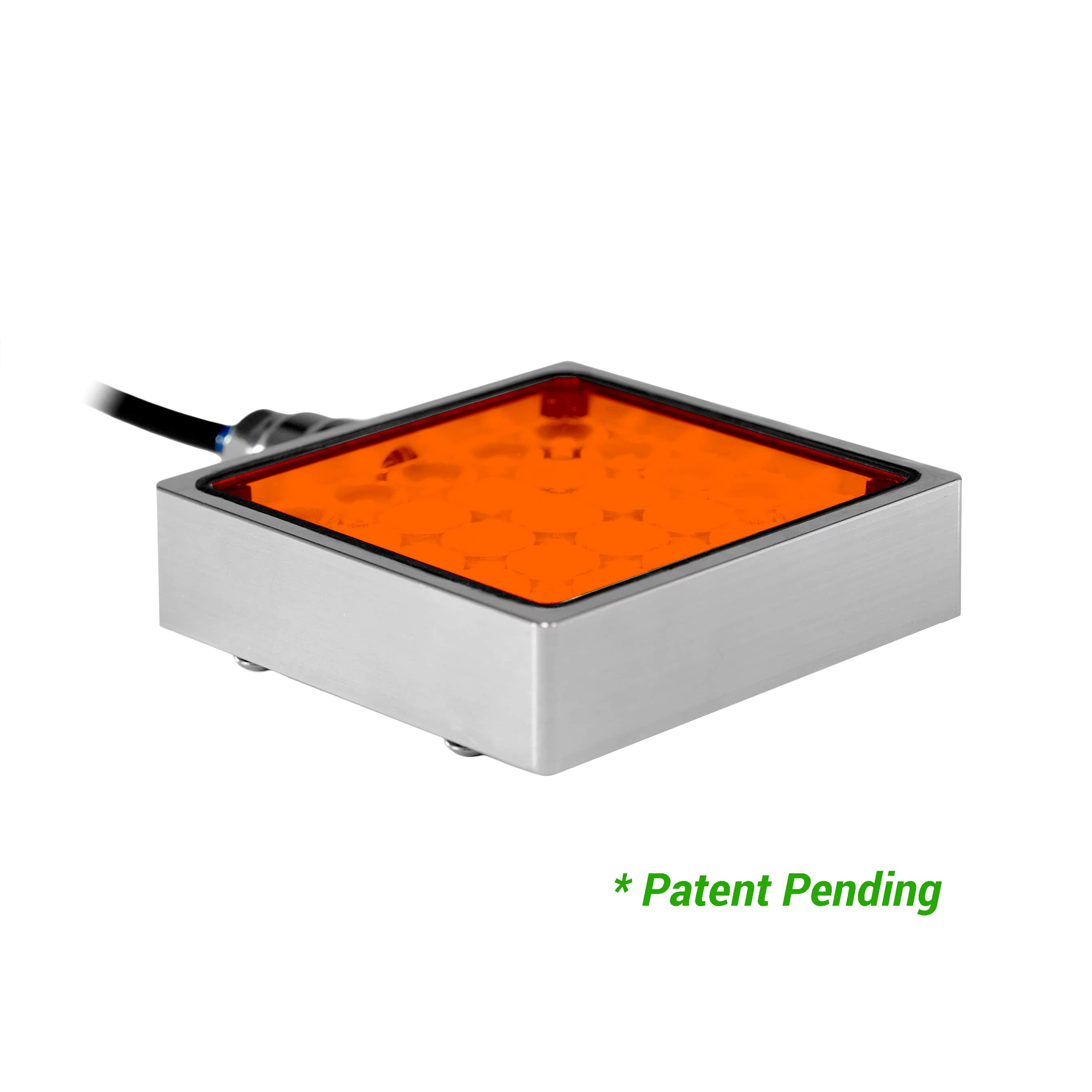

SL316X-625I3S UltraSeal Spot Light, Red (625nm), Ultrawide Lens, ICS 3S (I3S) Driver

Advanced IlluminationSKU: SL316X-625I3S
Lead time: 2 Weeks

Price:
Sale price$1,421.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

UltraSeal Spot Lights - SL Series

SL316X-625I3S Specifications:

Brand Advanced Illumination
Series SL316
Wavelength 625
Color Red Orange
Driver I3S
Ingress Protection IP69K
Lens Ultrawide
Weight 290g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

With an intensity of over 150 LUX at 300 mm WD in continuous operation, the SL316 UltraSeal Spot Light delivers industry-leading intensity with consistent uniformity.

Available with narrow, medium, and wide lensing options as well as a non-lensed configuration for high dispersion.

Configurable in eleven wavelength options.

Compatible with all Ai inline and discreet control systems.  The SL316 can be operated in continuous, gated continuous, pulsed, and adaptive pulsed modes with dimming options for brightness control.

General Specs

Electrical Specifications 0.86 A Max
Normal Operating Temperature

0°C - 60°C

Weight 290 g (10.2 oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730
Compliance CE, RoHS, IEC 62471
IP Rating IP69K Certified
Lumen Maintenance L70 - 50,000 Hours
BTO Lead Time 2 Weeks
In Stock SKU(s) None



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
505
Advanced Illumination 505nm Cyan Light
505nm Cyan
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 SL316 UltraSeal Spot Light Mechanical Specs | Advanced Illumination


 Optical Specs

 SL316 UltraSeal Spot Light Optical Specs | Advanced IlluminationSL316 UltraSeal Spot Light Optical Specs | Advanced IlluminationSL316 UltraSeal Spot Light Optical Specs | Advanced Illumination

Electrical Specs

 SL316 UltraSeal Spot Light Electrical Specs | Advanced Illumination


Control Specs

 SL316 UltraSeal Spot Light Control Specs | Advanced Illumination

Part No Key

 SL316 UltraSeal Spot Light Part No Key | Advanced Illumination

Advanced Illumination SL316X-625I3S Downloads:

Advanced Illumination SL316X-625I3S Datasheet | Machine Vision Direct
Advanced Illumination SL316X-625I3S CAD PDF | Machine Vision Direct
Advanced Illumination SL316X-625I3S CAD DXF | Machine Vision Direct
Advanced Illumination SL316X-625I3S CAD STEP MODEL | Machine Vision Direct
