Description

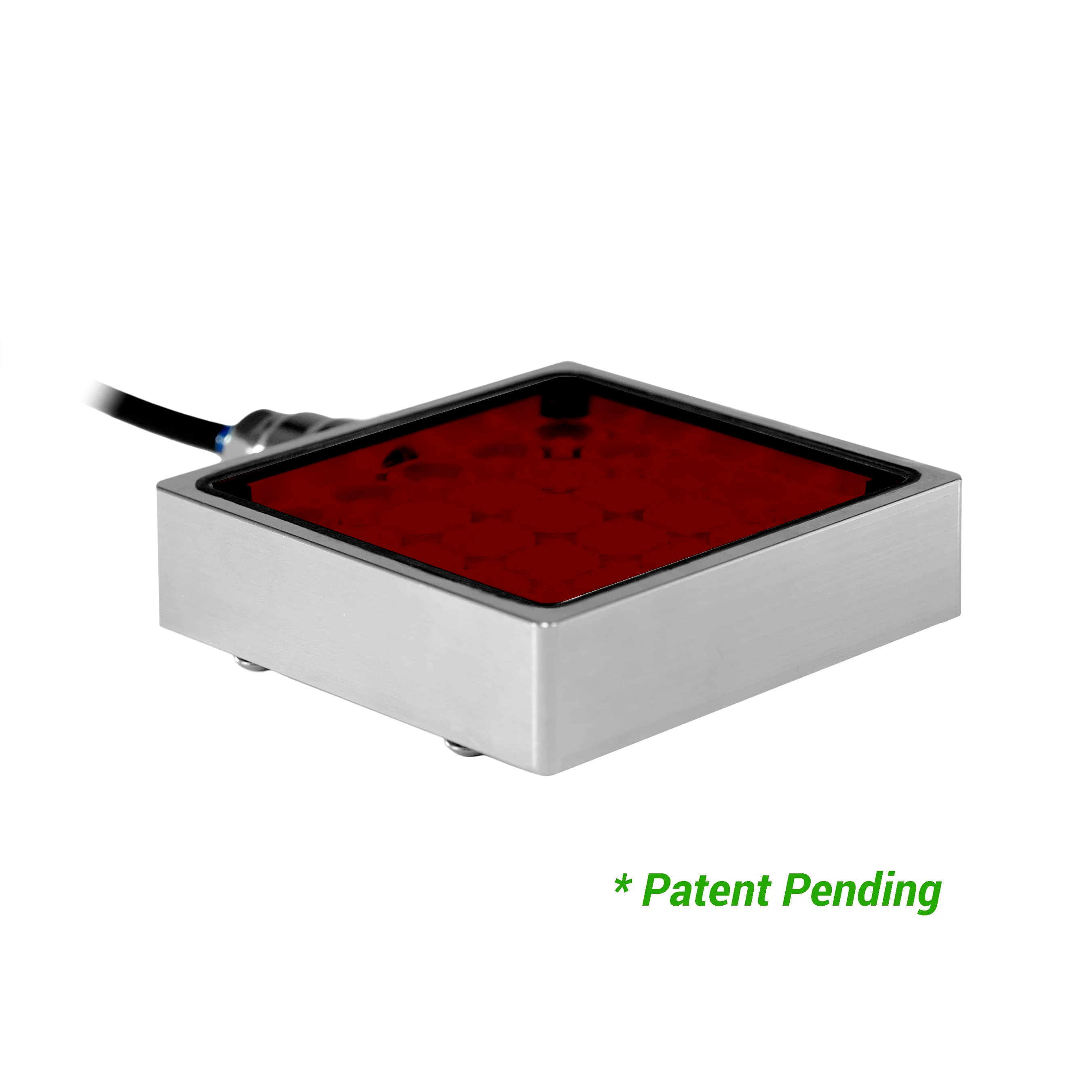

UltraSeal Spot Lights - SL Series
SL316W-850I3S Specifications:
Brand | Advanced Illumination |
Series | SL316 |
Wavelength | 850 |
Color | Infra-Red (IR) |
Driver | I3S |
Ingress Protection | IP69K |
Lens | Wide |
Weight | 290g |
Can Be Strobed | Yes |
Can Be Overdrive Strobed | Yes |
Can Be Constantly On | Yes |
Can Be Dimmed | Dimmable |
Connection | 2M Flying Lead |
Full Description
With an intensity of over 150 LUX at 300 mm WD in continuous operation, the SL316 UltraSeal Spot Light delivers industry-leading intensity with consistent uniformity.
Available with narrow, medium, and wide lensing options as well as a non-lensed configuration for high dispersion.
Configurable in eleven wavelength options.
Compatible with all Ai inline and discreet control systems. The SL316 can be operated in continuous, gated continuous, pulsed, and adaptive pulsed modes with dimming options for brightness control.
General Specs
Electrical Specifications | 0.86 A Max |
Normal Operating Temperature |
0°C - 60°C |
Weight | 290 g (10.2 oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730 |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP69K Certified |
Lumen Maintenance | L70 - 50,000 Hours |
BTO Lead Time | 2 Weeks |
In Stock SKU(s) | None |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
![]() |
WHITE |
455 |
![]() |
455nm Royal Blue |
470 |
![]() |
470nm Blue |
505 |
![]() |
505nm Cyan |
530 |
![]() |
530nm Green |
590 |
![]() |
590nm Amber |
625 |
![]() |
625nm Red Orange |
660 |
![]() |
660nm Red |
730 |
![]() |
730nm Infra-Red (IR) |
850 |
![]() |
850nm Infra-Red (IR) |
940 |
![]() |
940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() |
Optical Specs
![]() ![]() ![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
![]() |
