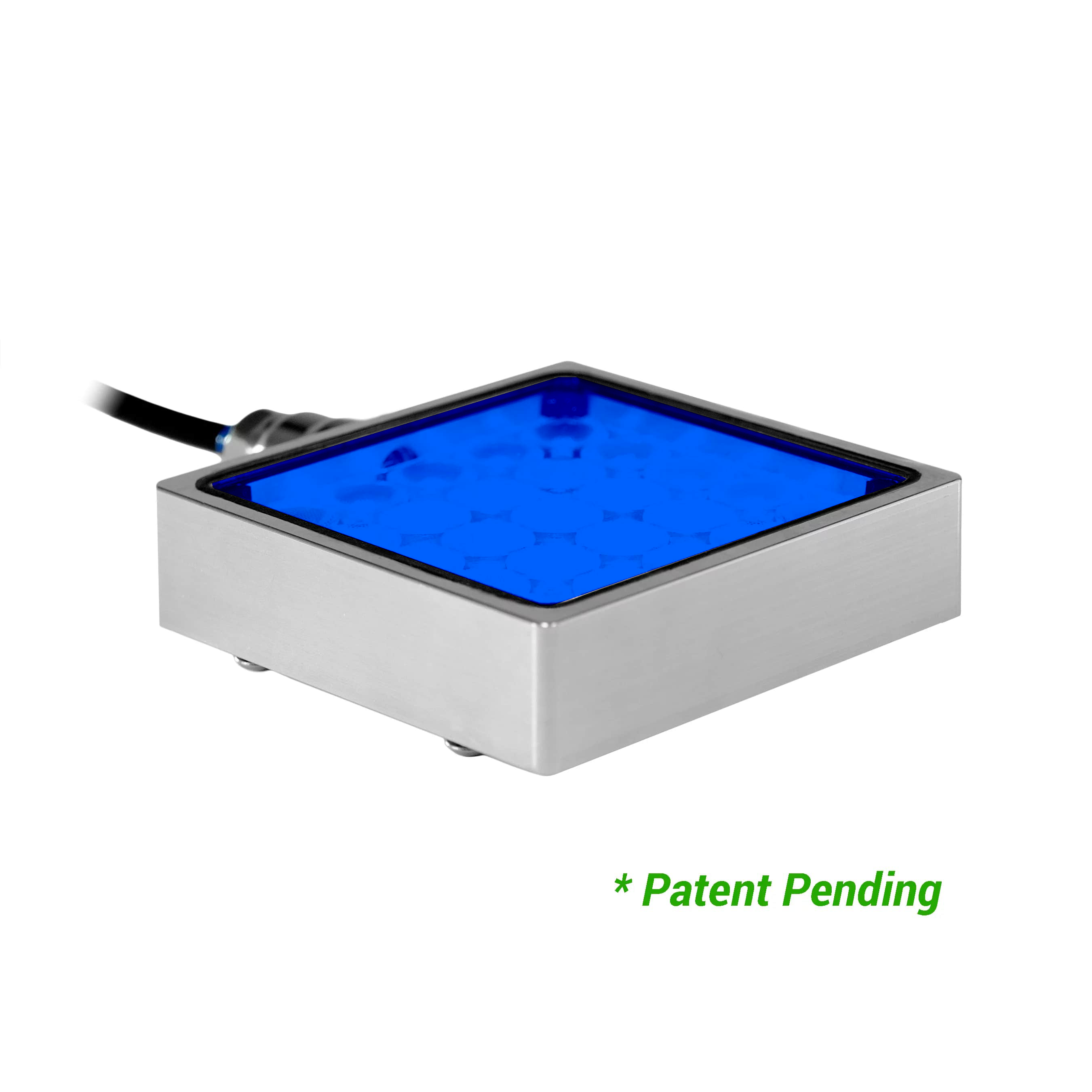

UltraSeal Spot Lights - SL Series
|Can Be Strobed||Yes|
|Can Be Overdrive Strobed||Yes|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Dimmable|
|Connection||2M Flying Lead|
With an intensity of over 150 LUX at 300 mm WD in continuous operation, the SL316 UltraSeal Spot Light delivers industry-leading intensity with consistent uniformity.
Available with narrow, medium, and wide lensing options as well as a non-lensed configuration for high dispersion.
Configurable in eleven wavelength options.
Compatible with all Ai inline and discreet control systems. The SL316 can be operated in continuous, gated continuous, pulsed, and adaptive pulsed modes with dimming options for brightness control.
|Electrical Specifications||0.86 A Max|
|Normal Operating Temperature||
0°C - 60°C
|Weight||290 g (10.2 oz)|
|Standard Cable Information||2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain|
|Photobiological Risk Factor||
Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730
|Compliance||CE, RoHS, IEC 62471|
|IP Rating||IP69K Certified|
|Lumen Maintenance||L70 - 50,000 Hours|
|BTO Lead Time||2 Weeks|
|In Stock SKU(s)||None|
||455nm Royal Blue|
||625nm Red Orange|
||730nm Infra-Red (IR)|
||850nm Infra-Red (IR)|
||940nm Infra-Red (IR)|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination SL316M-455I3S Downloads:
