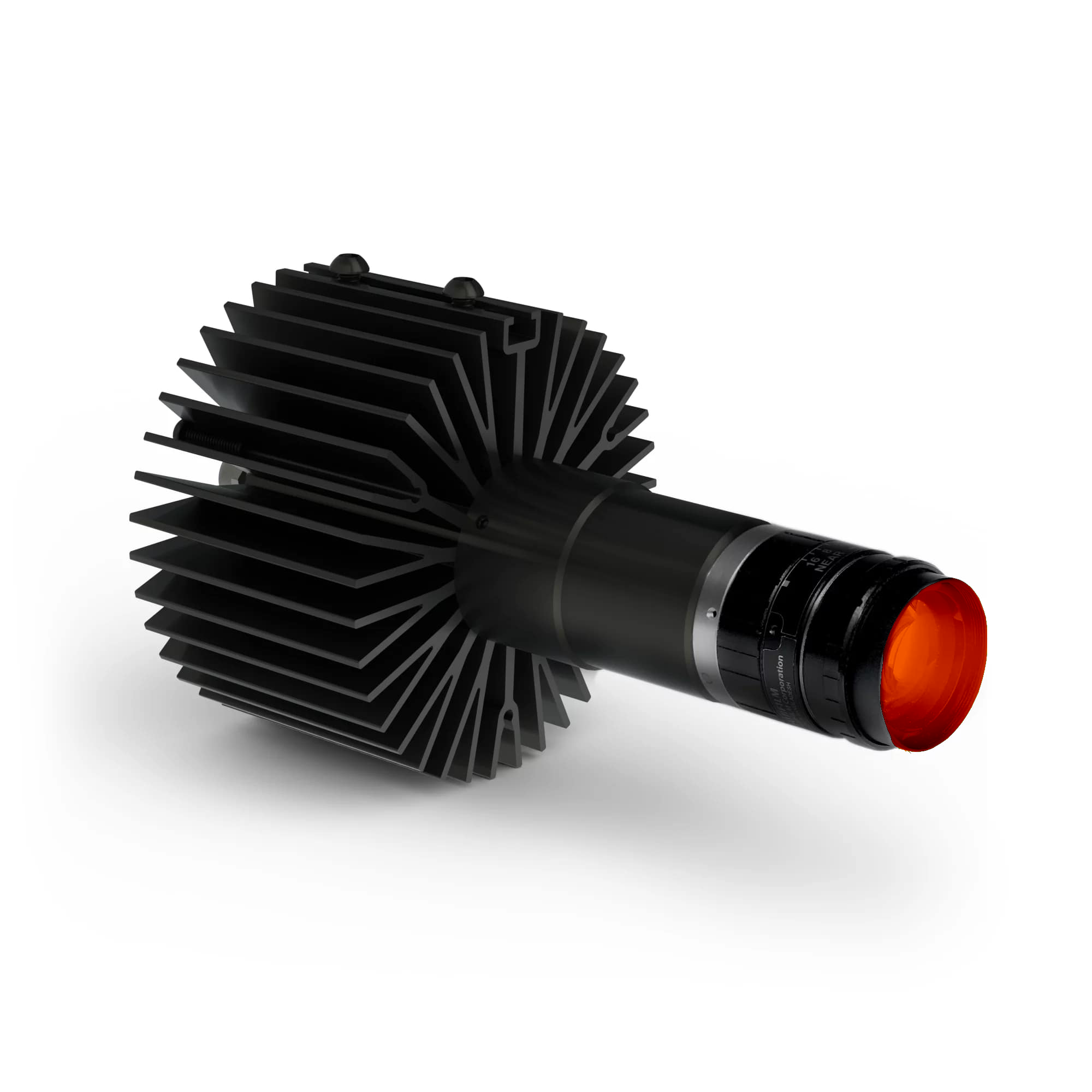

SL256-625I3S High Intensity Pattern Projecting Spot Light, Red (625nm), ICS 3S (I3S) Driver

Advanced IlluminationSKU: SL256-625I3S
Lead Time: 2 Weeks

Price:
Sale price$1,180.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

High Intensity Pattern Projecting Spot Lights - SL Series

SL256-625I3S Specifications:

Brand Advanced Illumination
Series SL256
Wavelength 625
Color Red Orange
Driver I3S
Ingress Protection 0
Weight 362.9g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

High Intensity: up to 9x brighter than the existing SL191 Pattern Projecting Spot Light and more than 3x brighter than the leading competitive structured light projector.

Projection patterns are easily configured with available reticles, including line, grid, cross, multiple lines, and half sphere, with custom reticles available.

Customizable: available in multiple wavelengths, including white.

Constructed with a large heat sink for improved LED thermal management to facilitate increased brightness while maintaining safe operating temperatures.

Ideal solution for machine vision inspection applications requiring structured illumination, including edge detection, locating offsets, and assessing topography.

Requires a reticle and lens (sold separately); see available reticles here.

Click here to download the SL256 Reticle Replacement Instructions.

Click here to download the SL256 Reticle Rotation Instructions.

General Specs

Electrical Specifications .794A Max

Max Case Temperature

60°C @ 25°C Ambient

Ambient Temperature Range

0-50°C

Weight 362.9 g (12.8 oz)
Standard Cable Information 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Group 1 (Low-Risk) Applicable Wavelengths: 455, 530, 625, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP 50
Lumen Maintenance WHI: L70=60,000 hours
455, 530, 625: L70=100,000 hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
455
455nm Royal Blue
530
Advanced Illumination 530nm Green Light
530nm Green
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 SL256 High Intensity Pattern Projecting Spot Light Mechanical Specs | Advanced Illumination


 Optical Specs

 SL256 High Intensity Pattern Projecting Spot Light Optical Specs | Advanced IlluminationSL256 High Intensity Pattern Projecting Spot Light Optical Specs | Advanced IlluminationSL256 High Intensity Pattern Projecting Spot Light Optical Specs | Advanced Illumination

Electrical Specs

 SL256 High Intensity Pattern Projecting Spot Light Electrical Specs | Advanced Illumination


Control Specs

 SL256 High Intensity Pattern Projecting Spot Light Control Specs | Advanced Illumination

Reticle Specs

 SL256 High Intensity Pattern Projecting Spot Light Reticle Specs | Advanced Illumination

Part No Key

 SL256 High Intensity Pattern Projecting Spot Light Part No Key | Advanced Illumination

Advanced Illumination SL256-625I3S Downloads:

Advanced Illumination SL256-625I3S Datasheet | Machine Vision Direct
Advanced Illumination SL256-625I3S CAD PDF | Machine Vision Direct
Advanced Illumination SL256-625I3S CAD DXF | Machine Vision Direct
Advanced Illumination SL256-625I3S CAD STEP MODEL | Machine Vision Direct
