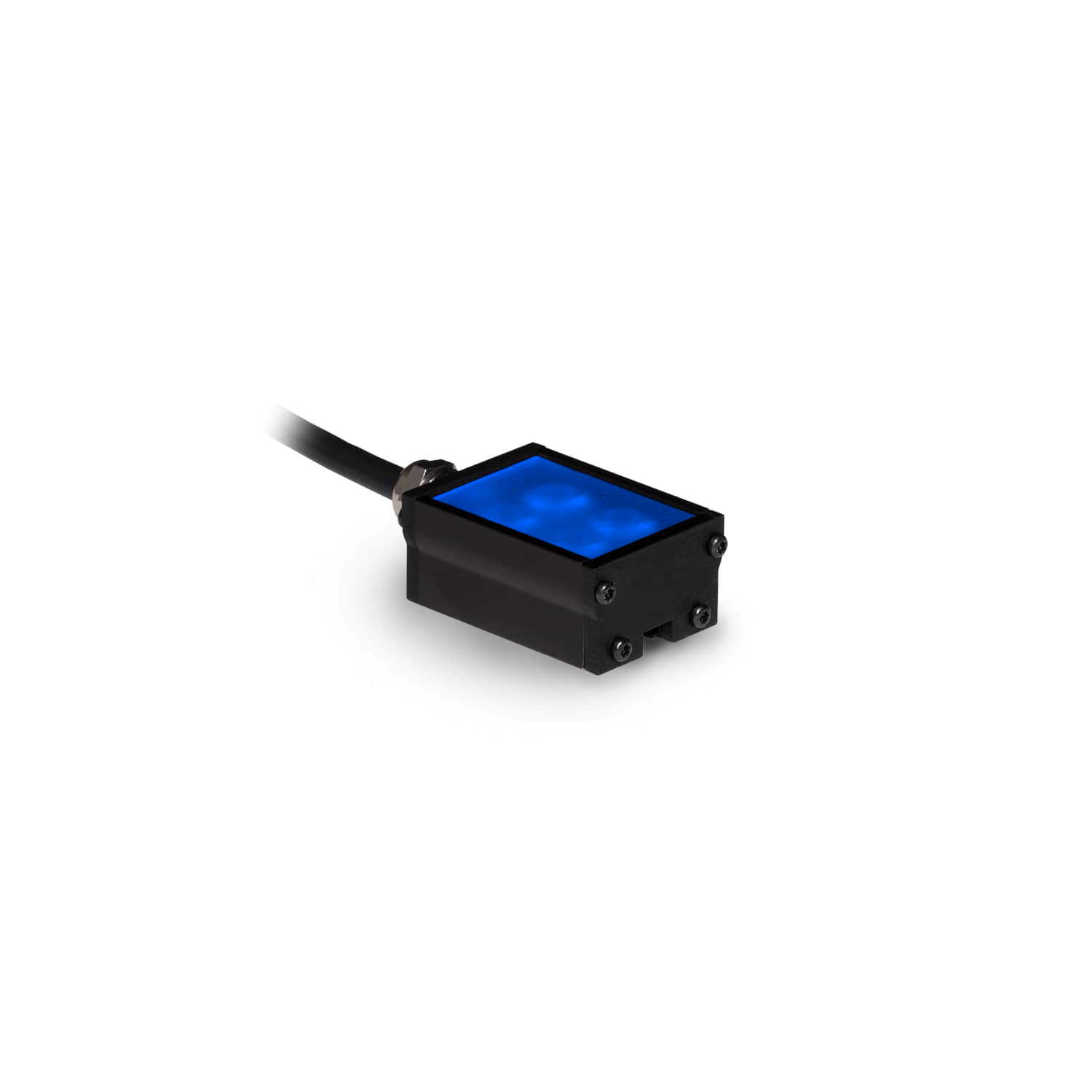

SL244-455I3S Compact Spot Light, Royal Blue (455nm), ICS 3S (I3S) Driver

Advanced IlluminationSKU: SL244-455I3S
Lead time: 2 Weeks

Price:
Sale price$584.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

MicroBrite Spot Lights - SL Series

SL244-455I3S Specifications:

Brand Advanced Illumination
Series SL244
Wavelength 455
Color Royal Blue
Driver I3S
Ingress Protection 0
Weight 42g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

High-Intensity Illumination in a Compact Package

Available in a broad range of wavelengths

Washdown Version Available

Convenient M4 T-Slot for Mounting

General Specs

Electrical Specifications 0.19 A Max
Normal Operating Temperature

0 - 60°C

Weight 42g (1.48 oz)
Standard Cable Information 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
Group 2 (Moderate Risk) Applicable Wavelengths: 365, 375, 385, 395, 405
Compliance CE, RoHS, IEC 62471
IP Rating TBD
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
365
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
375
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)
385
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)
395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
470
Advanced Illumination 470nm Blue Light
470nm Blue
505
Advanced Illumination 505nm Cyan Light
505nm Cyan
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 SL244 MicroBrite Spot Light Mechanical Specs | Advanced IlluminationSL244 MicroBrite Spot Light Mechanical Specs | Advanced Illumination


 Optical Specs

 SL244 MicroBrite Spot Light Optical Specs | Advanced Illumination

Electrical Specs

 SL244 MicroBrite Spot Light Electrical Specs | Advanced Illumination


Control Specs

 SL244 MicroBrite Spot Light Control Specs | Advanced Illumination

Part No Key

 SL244 MicroBrite Spot Light Part No Key | Advanced Illumination

Advanced Illumination SL244-455I3S Downloads:

Advanced Illumination SL244-455I3S Datasheet | Machine Vision Direct
Advanced Illumination SL244-455I3S CAD PDF | Machine Vision Direct
Advanced Illumination SL244-455I3S CAD DXF | Machine Vision Direct
Advanced Illumination SL244-455I3S CAD STEP MODEL | Machine Vision Direct
