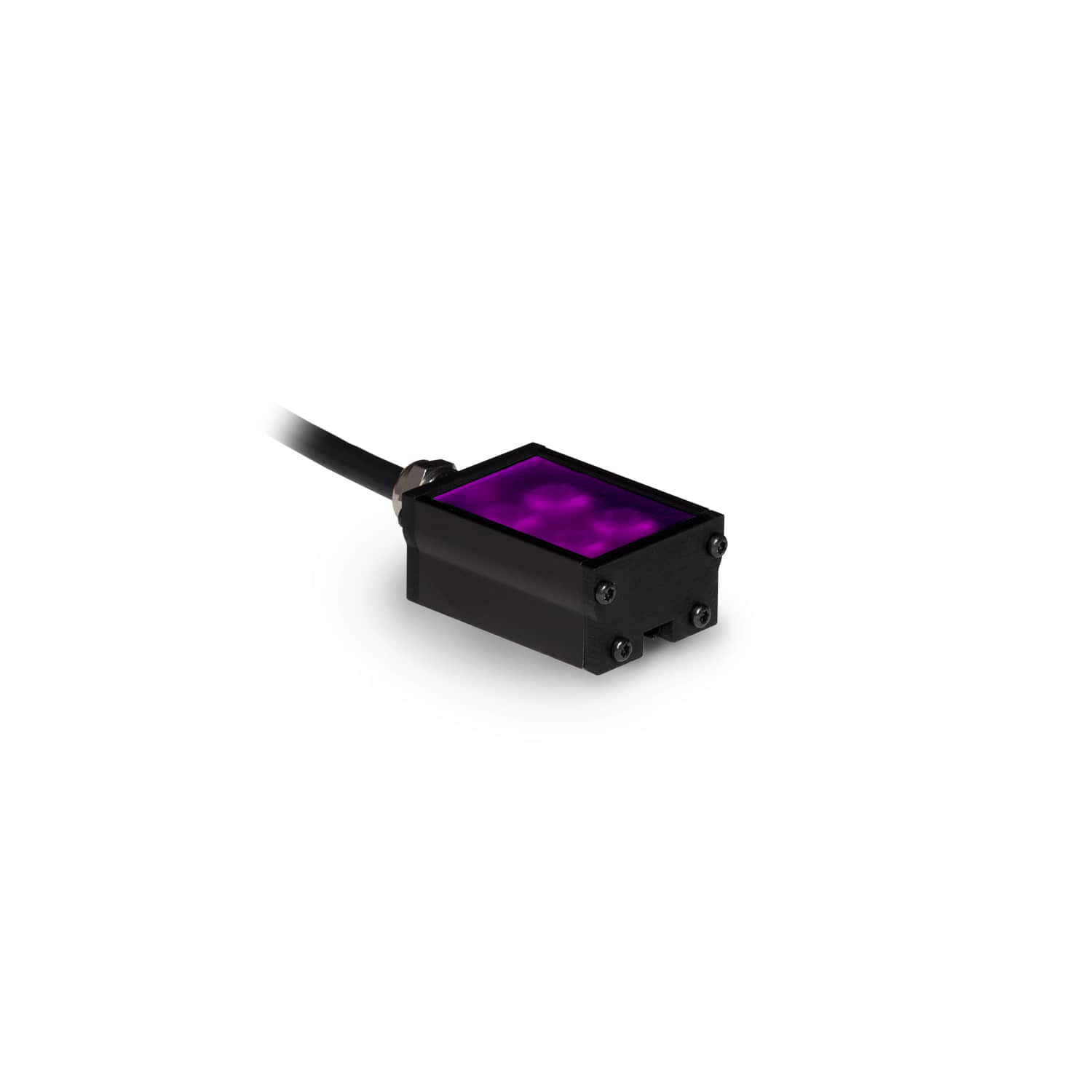

SL244-365I3S Compact Spot Light, UV (365nm), ICS 3S (I3S) Driver

Advanced IlluminationSKU: SL244-365I3S
Lead Time: 2 Weeks

Sale price$706.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


MicroBrite Spot Lights - SL Series

SL244-365I3S Specifications:

Brand Advanced Illumination
Series SL244
Wavelength 365
Color Ultra-Violet (UV)
Driver I3S
Ingress Protection 0
Weight 42g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

High-Intensity Illumination in a Compact Package

Available in a broad range of wavelengths

Washdown Version Available

Convenient M4 T-Slot for Mounting

General Specs

Electrical Specifications 0.19 A Max
Normal Operating Temperature

0 - 60°C

Weight 42g (1.48 oz)
Standard Cable Information 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
Group 2 (Moderate Risk) Applicable Wavelengths: 365, 375, 385, 395, 405
Compliance CE, RoHS, IEC 62471
IP Rating TBD
Lumen Maintenance L70 = 50,000 Hours


Available Wavelengths

Advanced Illumination White Lights
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
Advanced Illumination 470nm Blue Light
470nm Blue
Advanced Illumination 505nm Cyan Light
505nm Cyan
Advanced Illumination 530nm Green Light
530nm Green
Advanced Illumination 590nm Amber Light
590nm Amber
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
Advanced Illumination 660nm Red Light
660nm Red
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 SL244 MicroBrite Spot Light Mechanical Specs | Advanced IlluminationSL244 MicroBrite Spot Light Mechanical Specs | Advanced Illumination

 Optical Specs

 SL244 MicroBrite Spot Light Optical Specs | Advanced Illumination

Electrical Specs

 SL244 MicroBrite Spot Light Electrical Specs | Advanced Illumination

Control Specs

 SL244 MicroBrite Spot Light Control Specs | Advanced Illumination

Part No Key

 SL244 MicroBrite Spot Light Part No Key | Advanced Illumination

Advanced Illumination SL244-365I3S Downloads:

Advanced Illumination SL244-365I3S Datasheet | Machine Vision Direct
Advanced Illumination SL244-365I3S CAD PDF | Machine Vision Direct
Advanced Illumination SL244-365I3S CAD DXF | Machine Vision Direct
Advanced Illumination SL244-365I3S CAD STEP MODEL | Machine Vision Direct
