Description

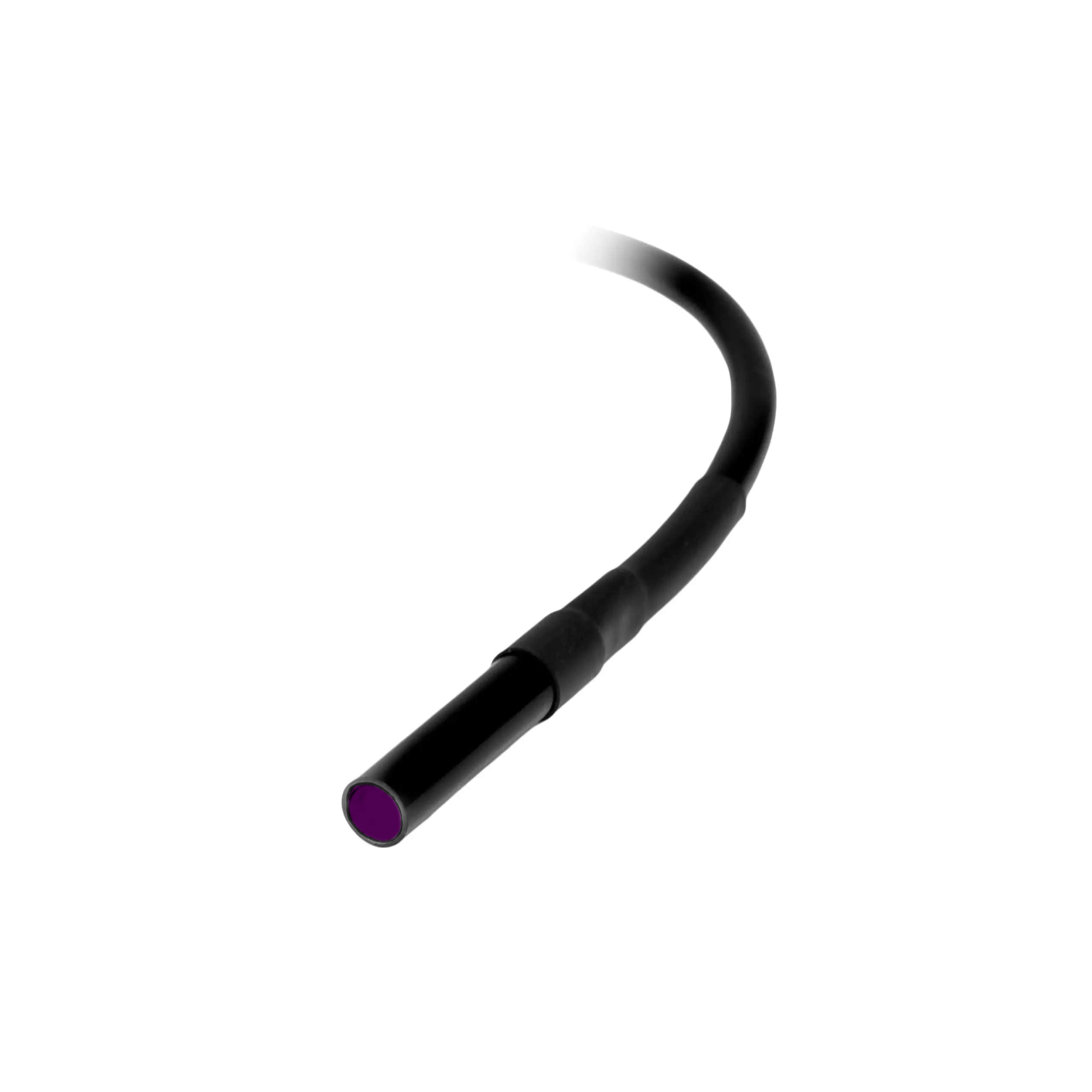

MicroBrite Spot/Coaxial Lights - SL Series
SL223B Specifications:
Brand | Advanced Illumination |
Series | SL223 |
Wavelength | VARIES |
Color | VARIES |
Driver | I3S |
Ingress Protection | IP65 |
Mount | Barrel |
Weight | 129g |
Can Be Strobed | Yes |
Can Be Overdrive Strobed | Yes |
Can Be Constantly On | Yes |
Can Be Dimmed | Dimmable |
Connection | 2M Flying Lead |
Full Description
The SL223 is characterized as a MicroBrite„¢ Spot/Coaxial Light and is designed primarily to replace fiber optic light sources in coaxial lensing applications.
Optional couplers are available for use with Dolan-Jenner, Fostec, and Moritex fiber bundles.
The SL223 is also designed for general lighting purposes where a very intense, miniaturized light source is required. General purpose spot lights may be used to create both dark field and bright field affects, depending on how they are deployed during the inspection.
The spot light is designed to provide 8.1kLux at a working distance of 4� (100mm) and is available in a very wide range of wavelengths from UV to IR.
The SL223 is rated for IP65 washdown capability.
General Specs
Electrical Specifications | 0.70 A Max |
Normal Operating Temperature |
0 - 60°C |
Weight | 13.6g (0.48oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405 |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP65 |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
![]() |
WHITE |
365 |
![]() |
365nm Ultra-Violet (UV) |
375 |
![]() |
375nm Ultra-Violet (UV) |
385 |
![]() |
385nm Ultra-Violet (UV) |
395 |
![]() |
395nm Ultra-Violet (UV) |
455 |
![]() |
455nm Royal Blue |
470 |
![]() |
470nm Blue |
505 |
![]() |
505nm Cyan |
530 |
![]() |
530nm Green |
590 |
![]() |
590nm Amber |
625 |
![]() |
625nm Red Orange |
660 |
![]() |
660nm Red |
730 |
![]() |
730nm Infra-Red (IR) |
850 |
![]() |
850nm Infra-Red (IR) |
940 |
![]() |
940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() ![]() |
Optical Specs
![]() ![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
![]() |
Advanced Illumination SL223B Downloads:
![]() |
|
