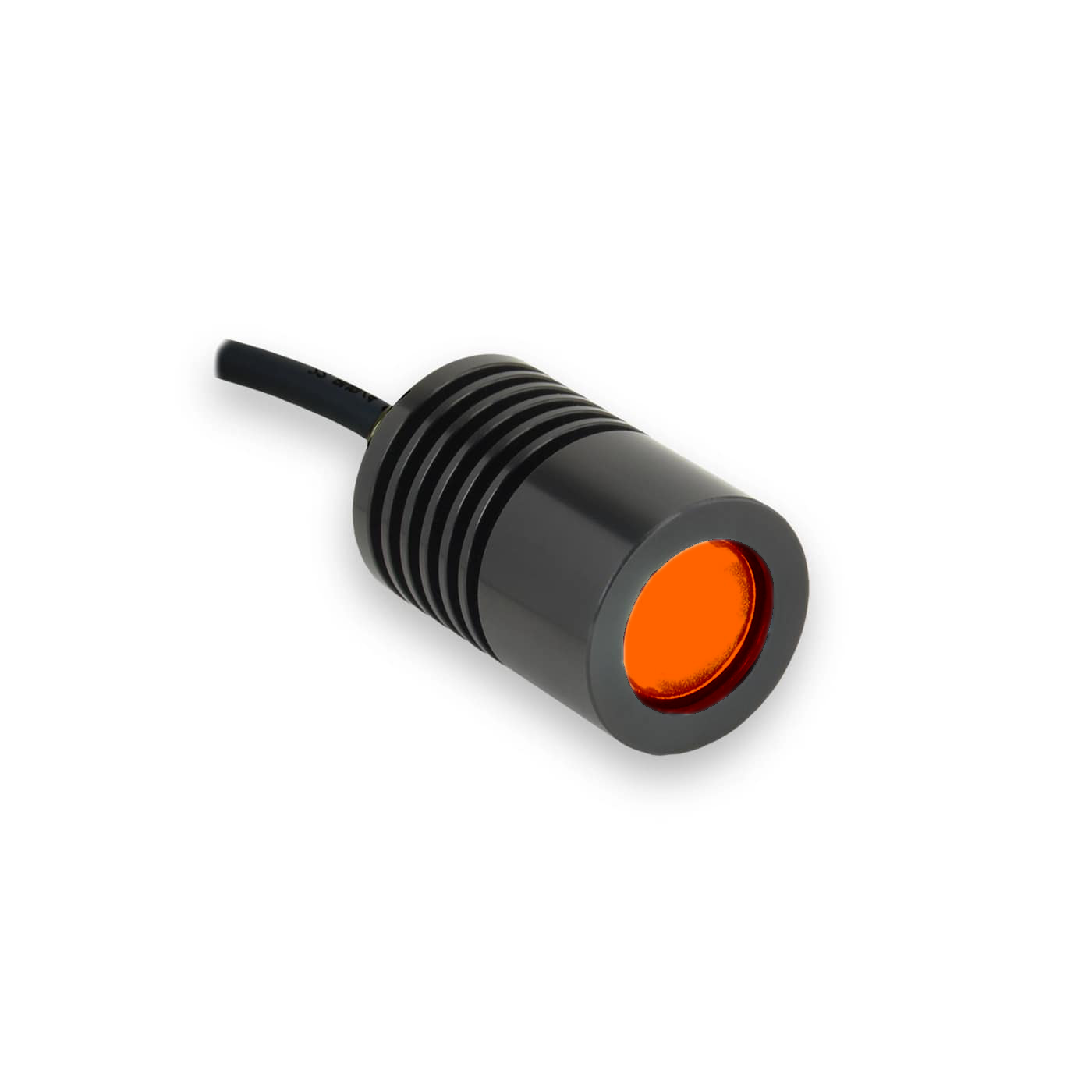

SL164N-625I3S Compact High Intensity Spot Light, Red (625nm), Narrow Lens, ICS 3S (I3S) Driver

Advanced IlluminationSKU: SL164N-625I3S
Lead Time: 2 Weeks

Sale price$682.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


Compact High Intensity Spot Lights - SL Series

SL164N-625I3S Specifications:

Brand Advanced Illumination
Series SL164
Wavelength 625
Color Red Orange
Driver I3S
Ingress Protection IP64
Lens Narrow
Weight 81.6g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

The SL164 is characterized as a Compact High Intensity Spot Light with sufficient thermal management to provide 200kLux at a working distance of 4� (100mm).

A very wide range of wavelengths are available from UV to IR.

Multiple beam spreads are also available as is a diffuser option.

General Specs

Electrical Specifications 0.14A
Normal Operating Temperature

0 - 60°C

Weight 81.6g (2.9oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405
Compliance CE, RoHS, IEC 62471
IP Rating IP64
Lumen Maintenance L70 = 50,000 Hours


Available Wavelengths

Advanced Illumination White Lights
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
455nm Royal Blue
Advanced Illumination 470nm Blue Light
470nm Blue
Advanced Illumination 505nm Cyan Light
505nm Cyan
Advanced Illumination 530nm Green Light
530nm Green
Advanced Illumination 590nm Amber Light
590nm Amber
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
Advanced Illumination 660nm Red Light
660nm Red
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 SL164 Compact High Intensity Spot Light Mechanical Specs | Advanced Illumination

 Optical Specs

 SL164 Compact High Intensity Spot Light Optical Specs | Advanced IlluminationSL164 Compact High Intensity Spot Light Optical Specs | Advanced Illumination

Electrical Specs

 SL164 Compact High Intensity Spot Light Electrical Specs | Advanced Illumination

Control Specs

 SL164 Compact High Intensity Spot Light Control Specs | Advanced Illumination

Part No Key

 SL164 Compact High Intensity Spot Light Part No Key | Advanced Illumination

Advanced Illumination SL164N-625I3S Downloads:

Advanced Illumination SL164N-625I3S Datasheet | Machine Vision Direct
Advanced Illumination SL164N-625I3S CAD PDF | Machine Vision Direct
Advanced Illumination SL164N-625I3S CAD DXF | Machine Vision Direct
Advanced Illumination SL164N-625I3S CAD STEP MODEL | Machine Vision Direct
