Description
2x2 Spot Lights - AL Series
SL147 Specifications:
Brand | Advanced Illumination |
Series | SL147 |
Wavelength | VARIES |
Color | VARIES |
Driver | I3S |
Ingress Protection | IP50 |
Lens | Narrow |
Weight | 104.9g |
Can Be Strobed | Yes |
Can Be Overdrive Strobed | Yes |
Can Be Constantly On | Yes |
Can Be Dimmed | Dimmable |
Connection | 2M Flying Lead |
Full Description
The SL147 is characterized as a 2×2 Spot Light with the necessary optics to project light over longer distances.
Ideal Illumination for medium working distances.
The spot light is available in a very wide range of wavelengths from UV to IR.
Diffuser and polarizer options are also available as well as several lens choices.
A washdown version is also available as an option.
The SL147 provides 88kLux at a working distance of 4� (100mm).
Convenient mounting with an M4 nut channel.
General Specs
Electrical Specifications | 0.34 A Max |
Normal Operating Temperature |
0 - 60°C |
Weight | 104.9g (3.7oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |

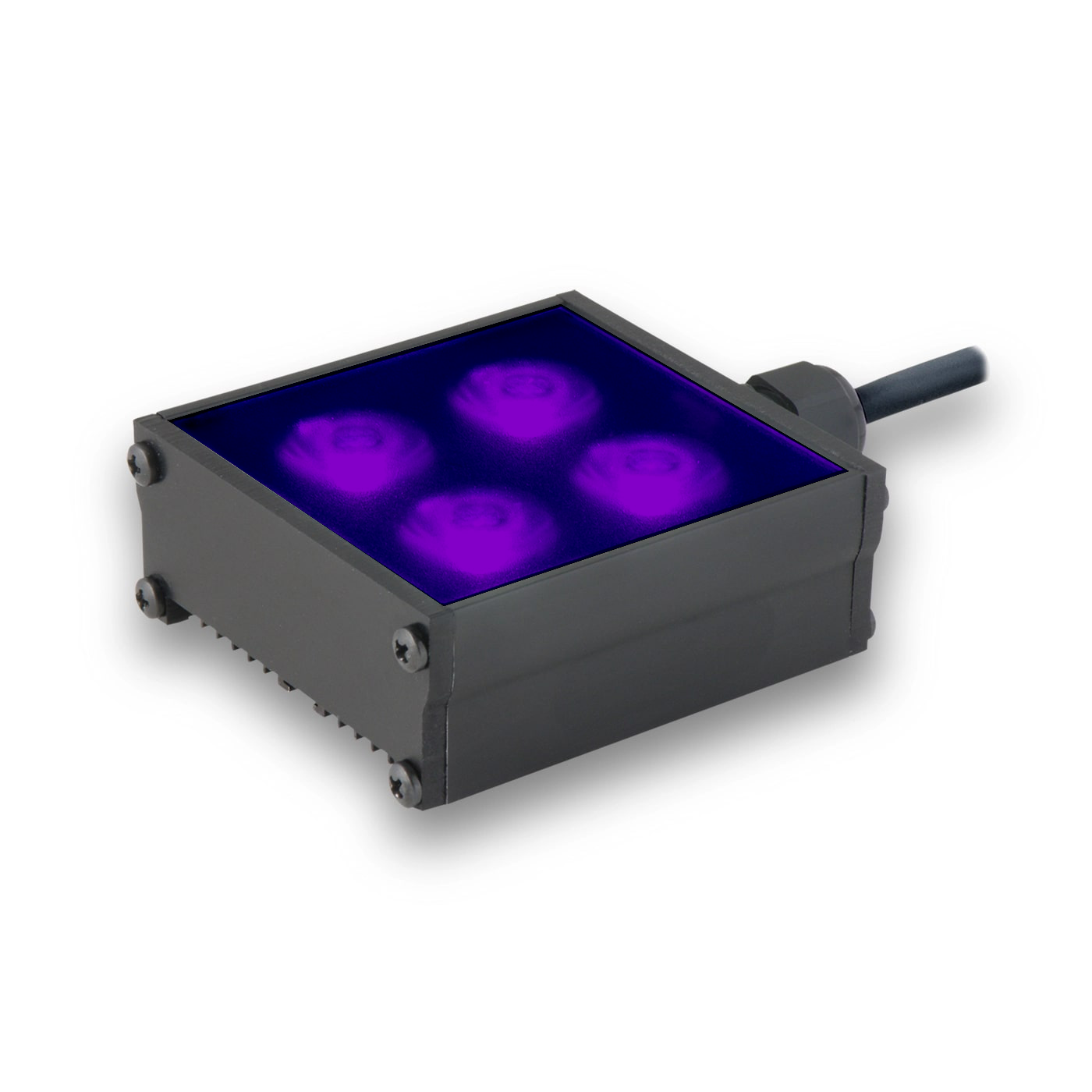

Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405 |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP65 Sealed, IP50 Unsealed |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |

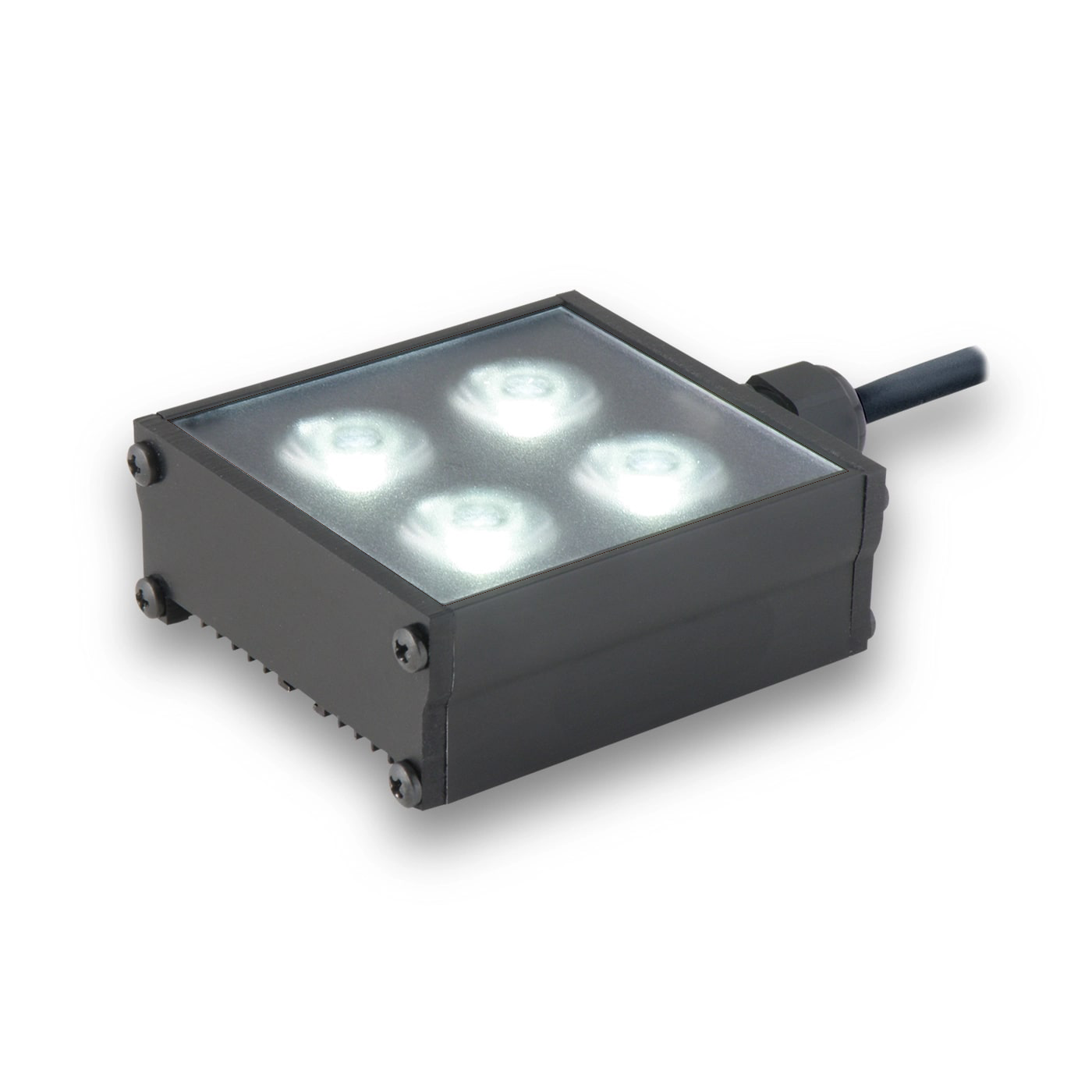

WHITE | WHITE | |
365 | 365nm Ultra-Violet (UV) | |
375 | 375nm Ultra-Violet (UV) | |
385 | 385nm Ultra-Violet (UV) | |
395 | 395nm Ultra-Violet (UV) | |
455 | 455nm Royal Blue | |
470 | 470nm Blue | |

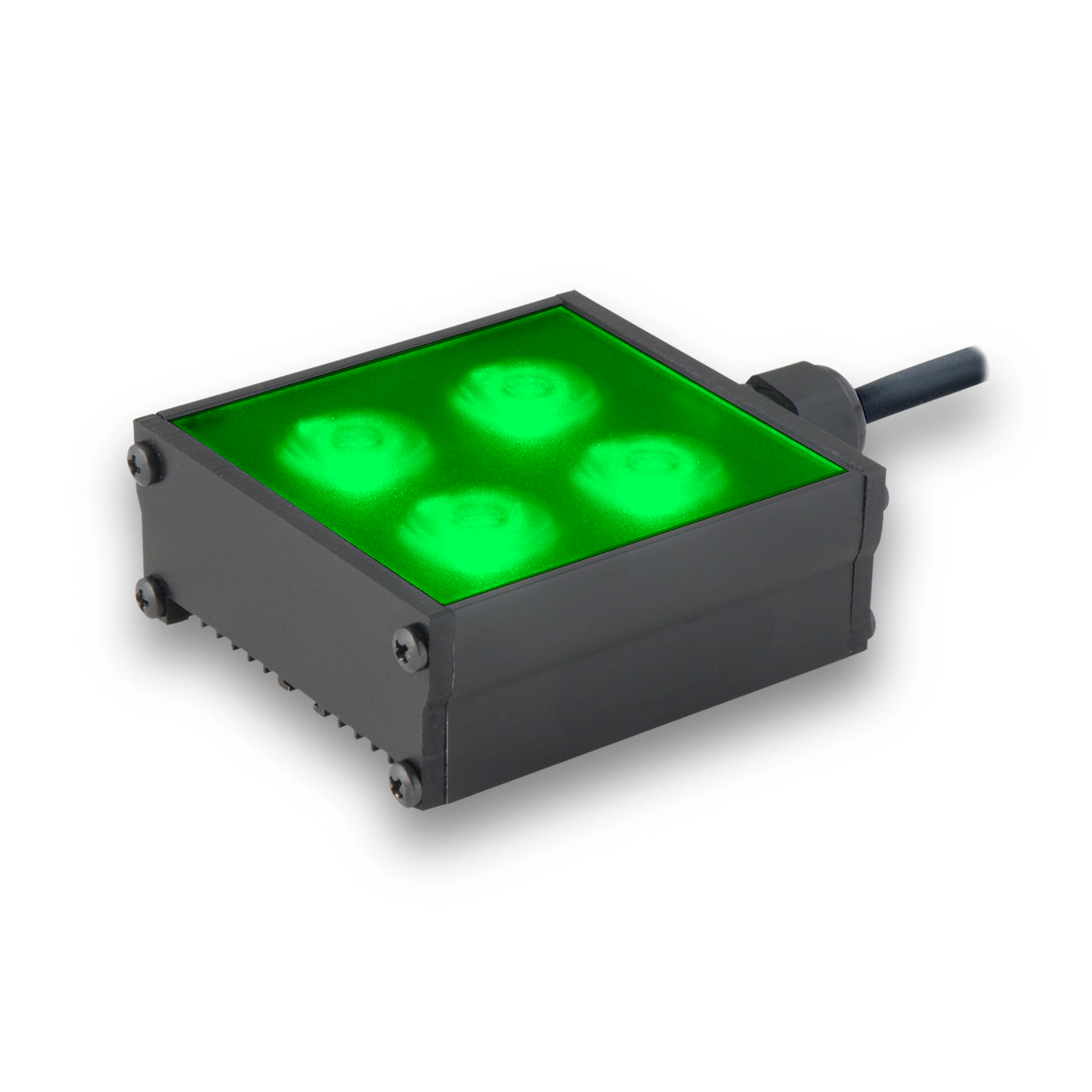

505 | 505nm Cyan | |
530 | 530nm Green | |

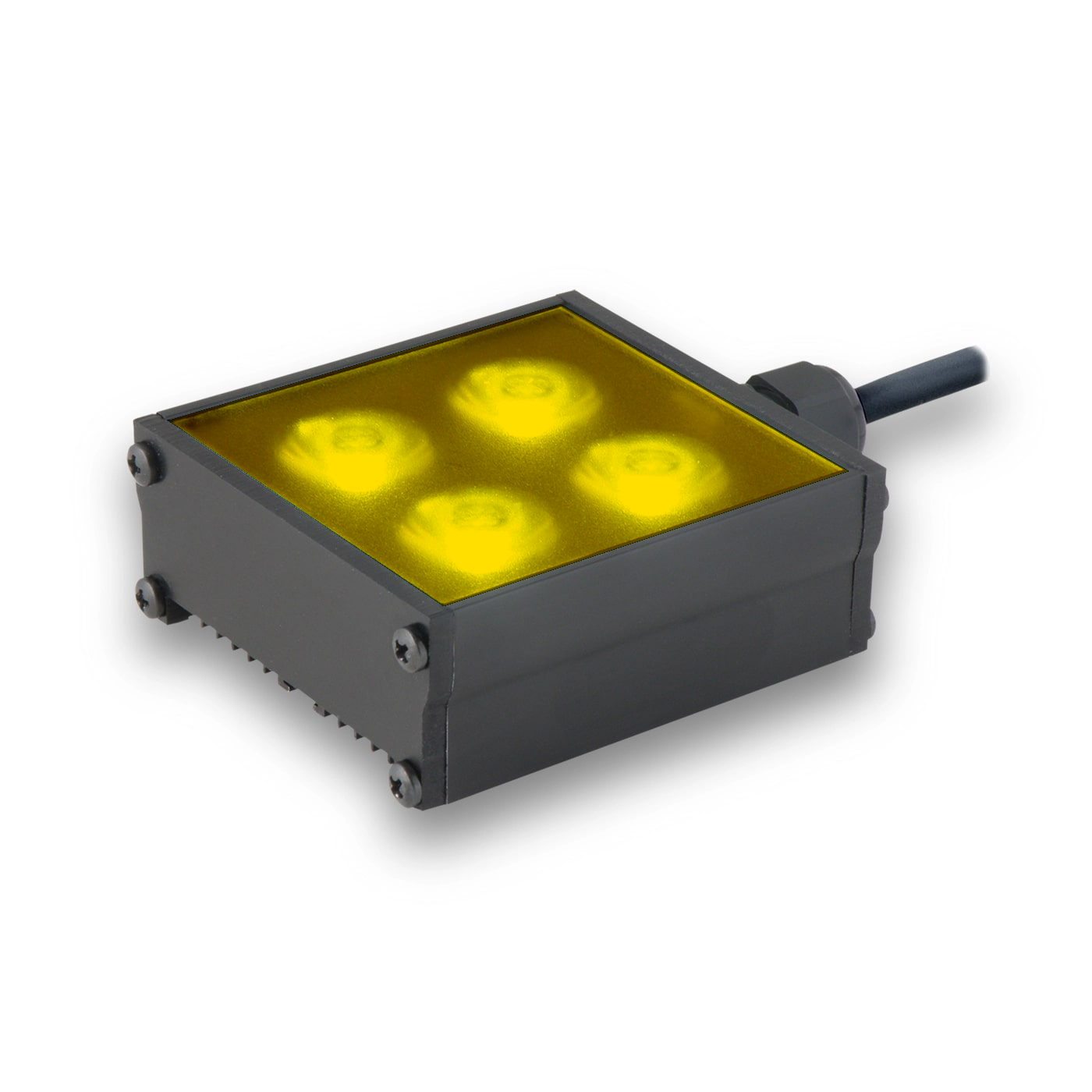

590 | 590nm Amber | |

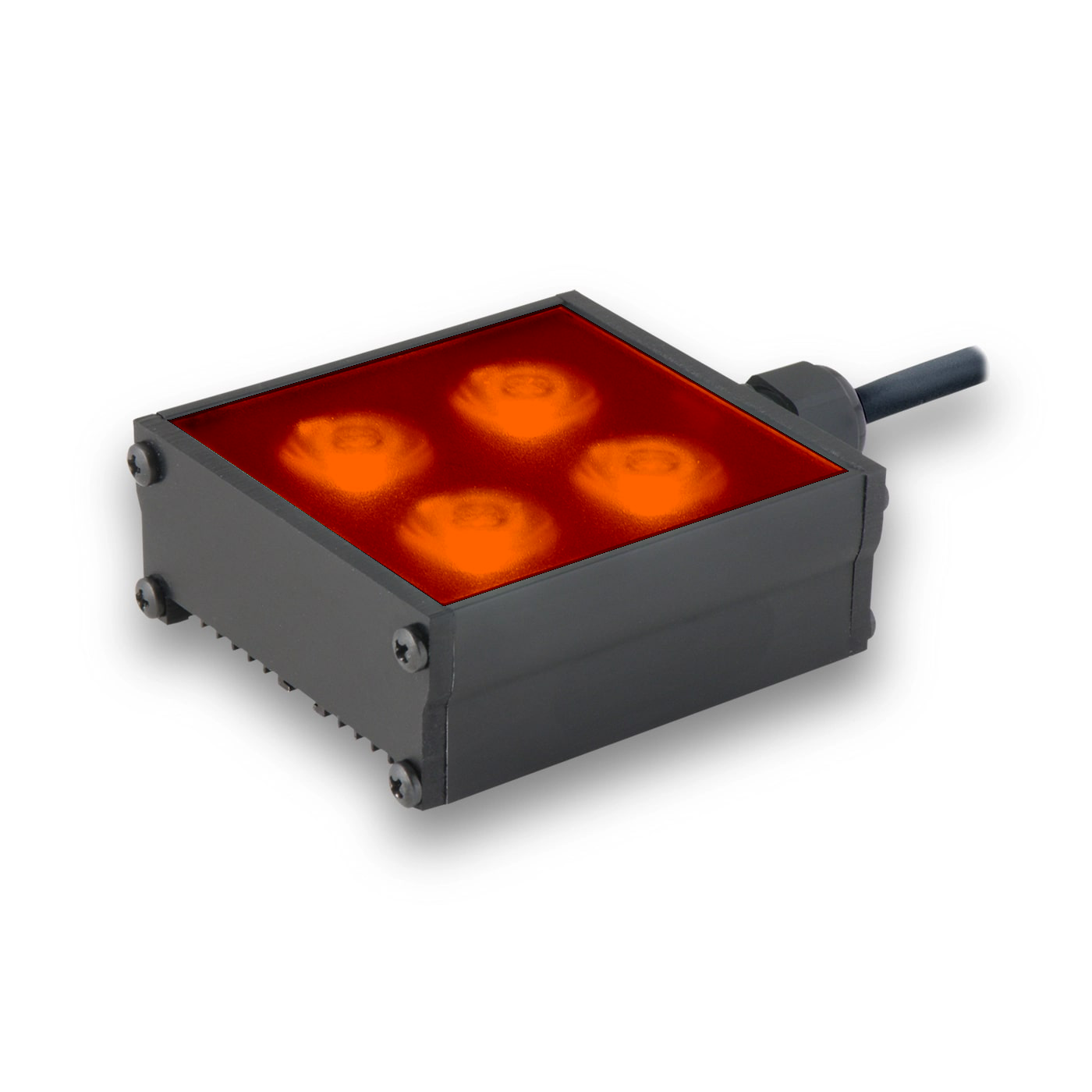

625 | 625nm Red Orange | |
660 | 660nm Red | |

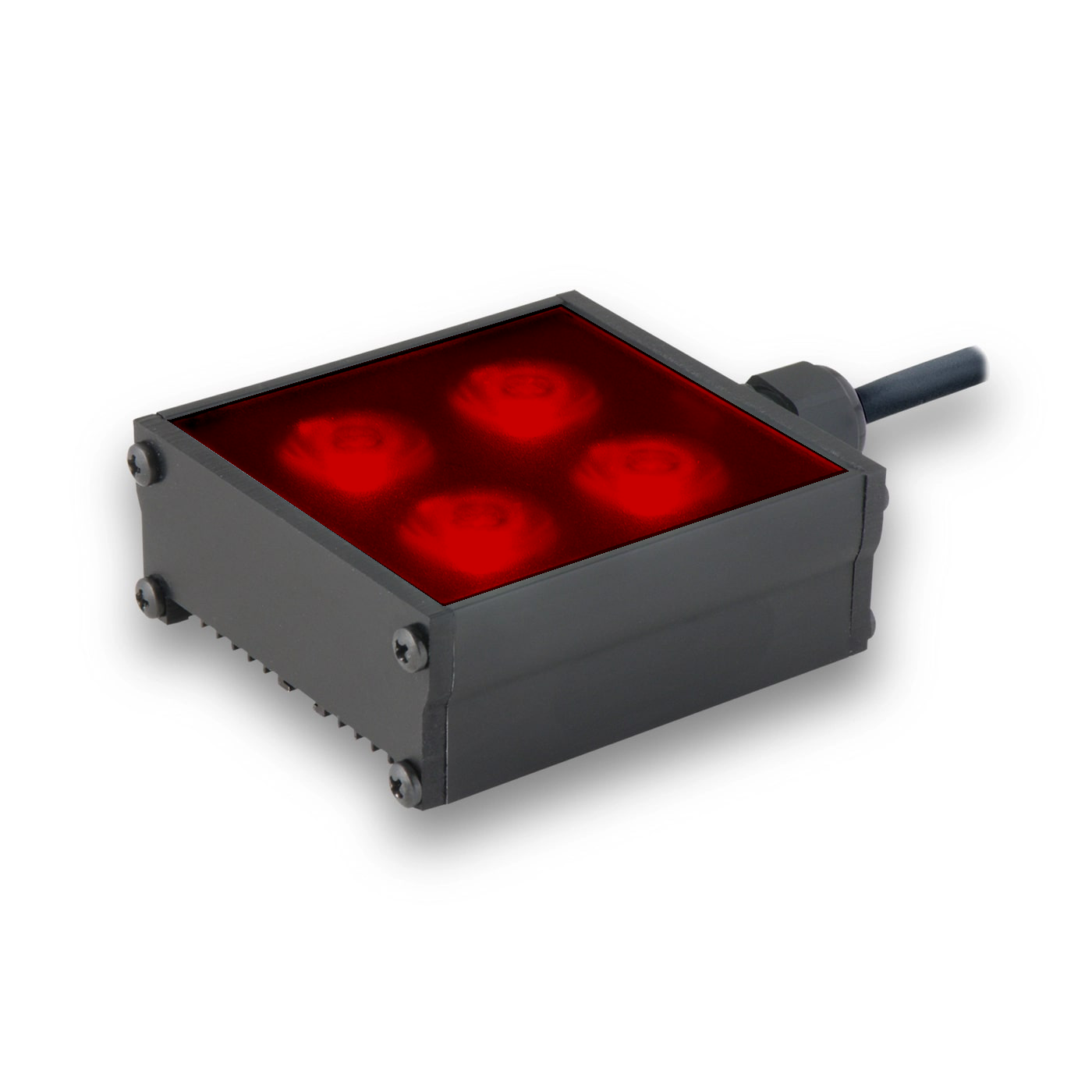

730 | 730nm Infra-Red (IR) | |
850 | 850nm Infra-Red (IR) | |

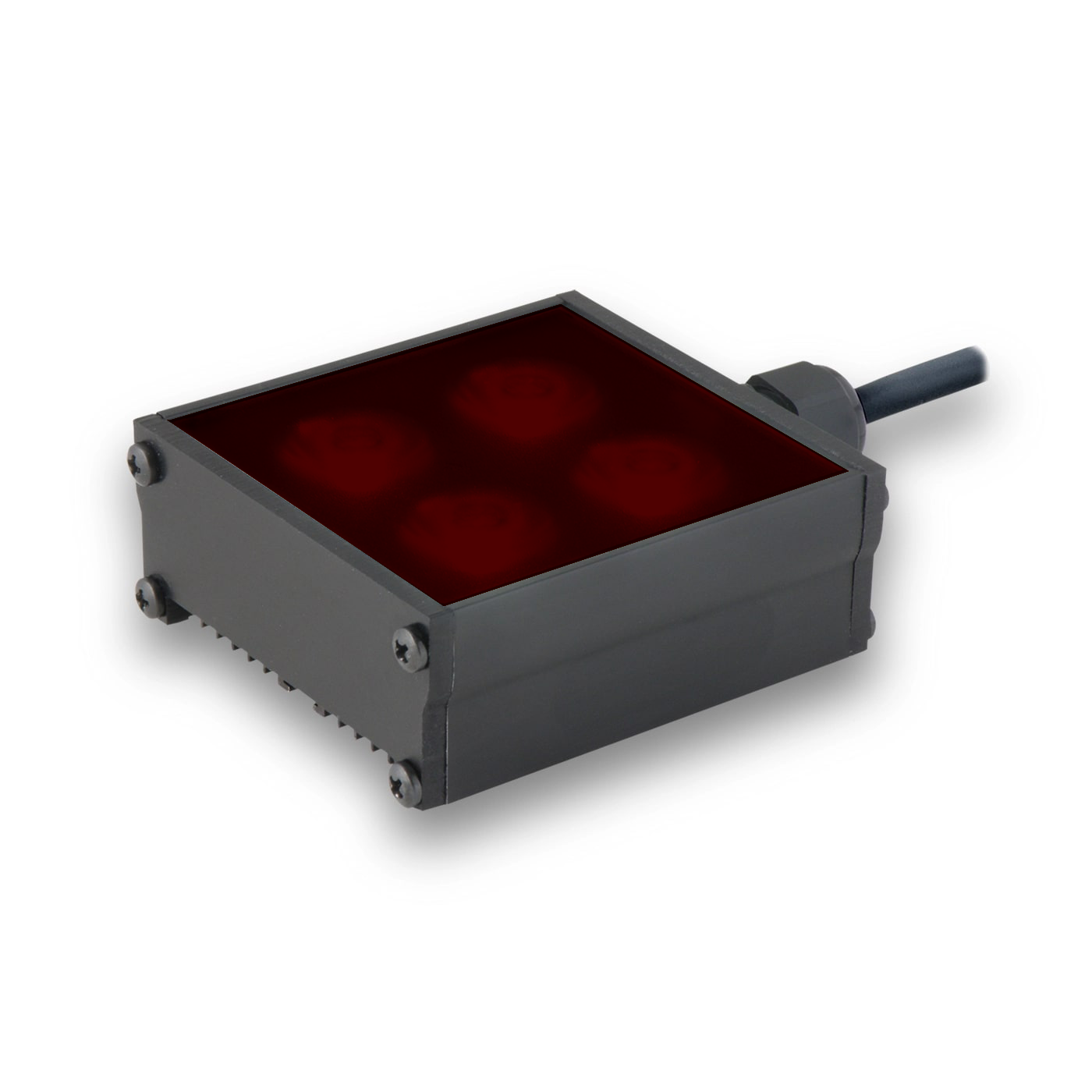

940 | 940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part No Key
