SL073-WHII3S Compact Spot Light, White, ICS 3S (I3S) Driver

Advanced IlluminationSKU: SL073-WHII3S
Lead time: 1 Week

Sale price$484.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00


Compact Spot Lights - SL Series

SL073-WHII3S Specifications:

Brand Advanced Illumination
Series SL073
Wavelength WHI
Color White
Driver I3S
Ingress Protection IP50
Weight 50g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

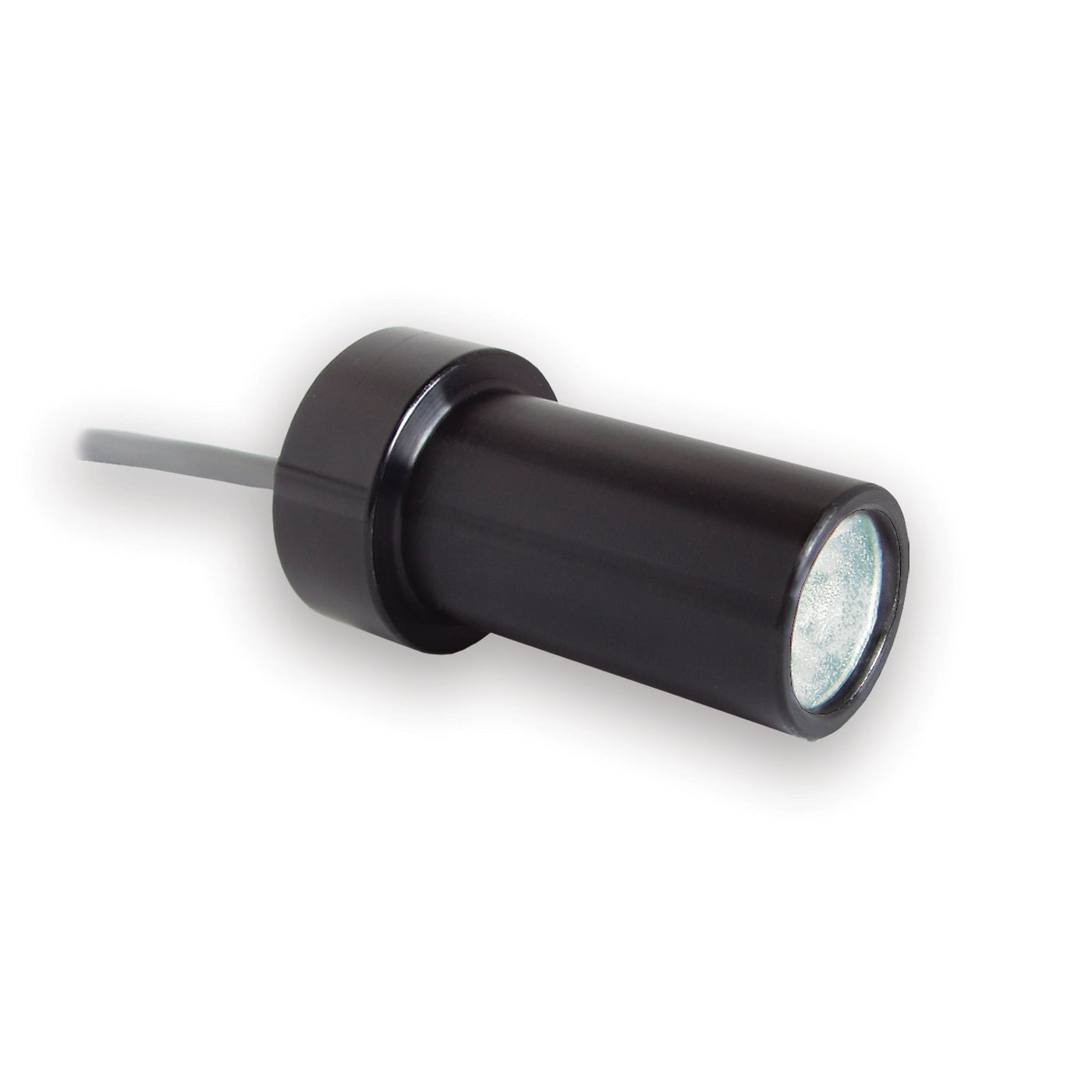

The SL073 is characterized as a Compact Spot Light with sufficient thermal management to provide 31kLux at a working distance of 4� (100mm).

A wide range of wavelengths are available from UV to IR.

Diffuser and polarizer options are also available.

General Specs

Electrical Specifications 0.35 A
Normal Operating Temperature

0 - 60°C

Weight 50g (1.76oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850
Group 1 (Low-Risk) Applicable Wavelengths: 470, 530, 590, 625, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours


Available Wavelengths

Advanced Illumination White Lights
Advanced Illumination 470nm Blue Light
470nm Blue
Advanced Illumination 530nm Green Light
530nm Green
Advanced Illumination 590nm Amber Light
590nm Amber
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 SL073 Compact Spot Light Mechanical Specs | Advanced Illumination

 Optical Specs

 SL073 Compact Spot Light Optical Specs | Advanced IlluminationSL073 Compact Spot Light Optical Specs | Advanced Illumination

Electrical Specs

 SL073 Compact Spot Light Electrical Specs | Advanced Illumination

Control Specs

 SL073 Compact Spot Light Control Specs | Advanced Illumination

Part No Key

 SL073 Compact Spot Light Part No Key | Advanced Illumination

Advanced Illumination SL073-WHII3S Downloads:

Advanced Illumination SL073-WHII3S Datasheet | Machine Vision Direct
Advanced Illumination SL073-WHII3S CAD PDF | Machine Vision Direct
Advanced Illumination SL073-WHII3S CAD DXF | Machine Vision Direct
Advanced Illumination SL073-WHII3S CAD STEP MODEL | Machine Vision Direct
