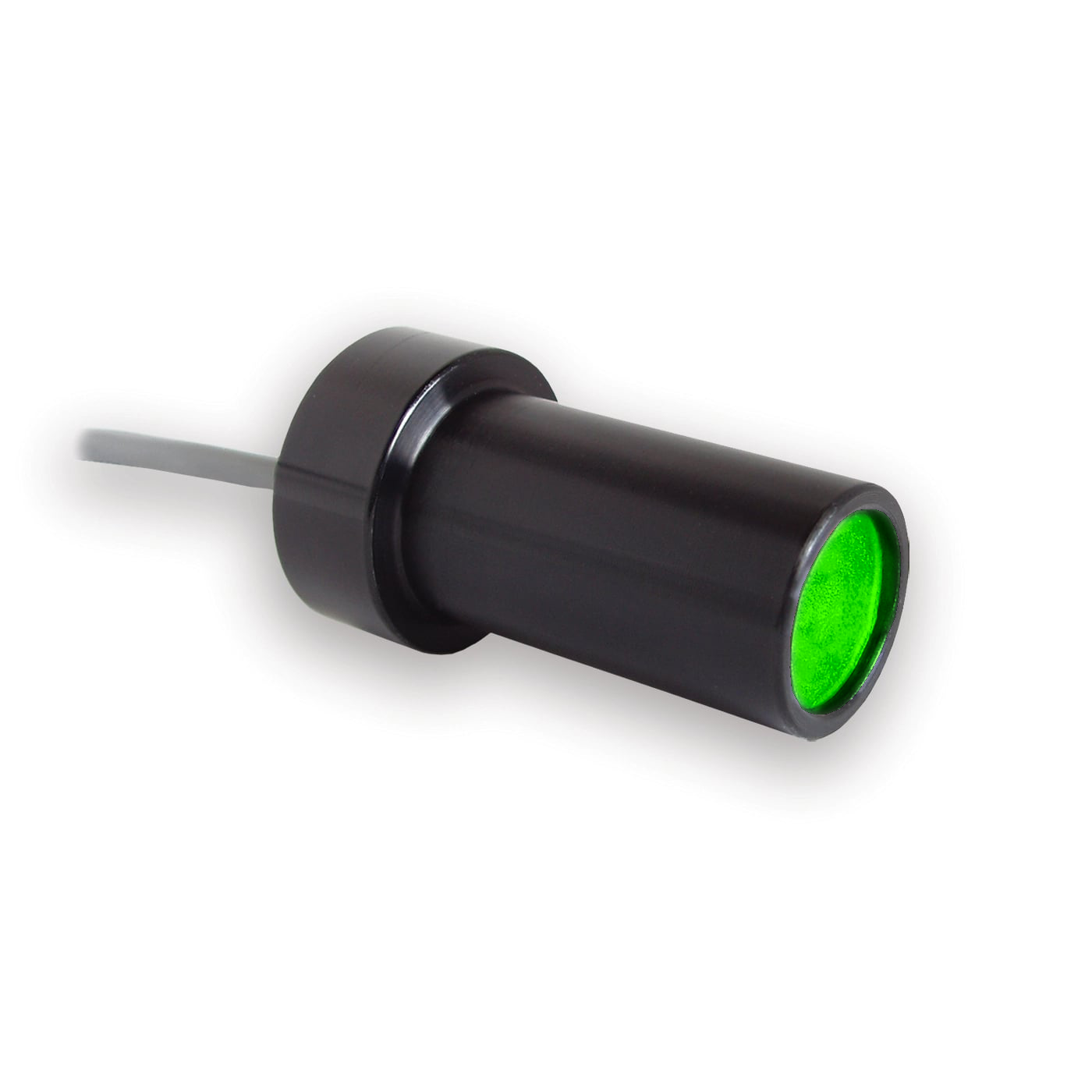

SL073-530I3S Compact Spot Light, Green (530nm), ICS 3S (I3S) Driver

Advanced IlluminationSKU: SL073-530I3S
Lead Time: 1 Week

Price:
Sale price$542.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Compact Spot Lights - SL Series

SL073-530I3S Specifications:

Brand Advanced Illumination
Series SL073
Wavelength 530
Color Green
Driver I3S
Ingress Protection IP50
Weight 50g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

The SL073 is characterized as a Compact Spot Light with sufficient thermal management to provide 31kLux at a working distance of 4� (100mm).

A wide range of wavelengths are available from UV to IR.

Diffuser and polarizer options are also available.

General Specs

Electrical Specifications 0.35 A
Normal Operating Temperature

0 - 60°C

Weight 50g (1.76oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850
Group 1 (Low-Risk) Applicable Wavelengths: 470, 530, 590, 625, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
470
Advanced Illumination 470nm Blue Light
470nm Blue
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 SL073 Compact Spot Light Mechanical Specs | Advanced Illumination


 Optical Specs

 SL073 Compact Spot Light Optical Specs | Advanced IlluminationSL073 Compact Spot Light Optical Specs | Advanced Illumination

Electrical Specs

 SL073 Compact Spot Light Electrical Specs | Advanced Illumination


Control Specs

 SL073 Compact Spot Light Control Specs | Advanced Illumination

Part No Key

 SL073 Compact Spot Light Part No Key | Advanced Illumination

Advanced Illumination SL073-530I3S Downloads:

Advanced Illumination SL073-530I3S Datasheet | Machine Vision Direct
Advanced Illumination SL073-530I3S CAD PDF | Machine Vision Direct
Advanced Illumination SL073-530I3S CAD DXF | Machine Vision Direct
Advanced Illumination SL073-530I3S CAD STEP MODEL | Machine Vision Direct
