Description

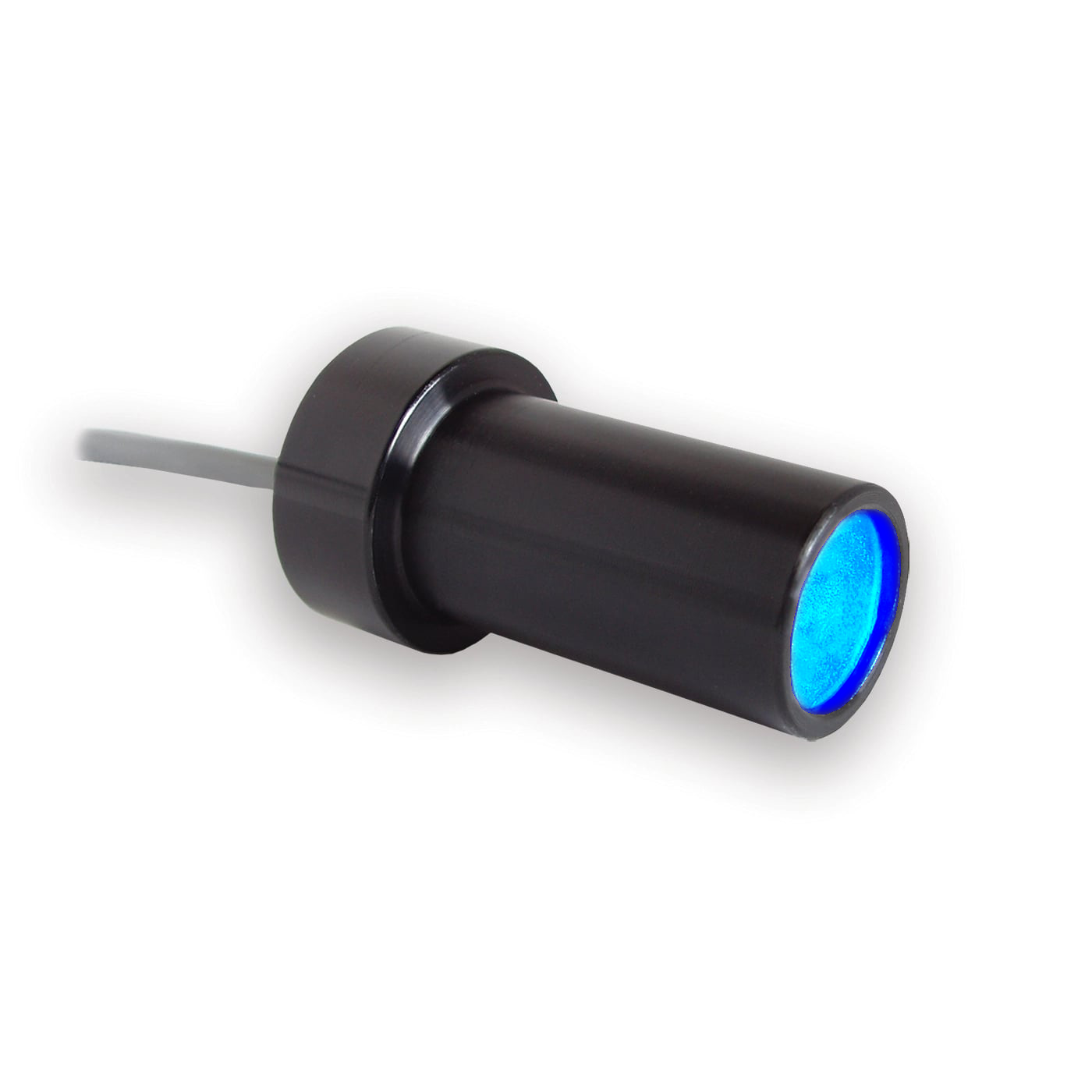

Compact Spot Lights - SL Series
SL073-470I3S Specifications:
Brand | Advanced Illumination |
Series | SL073 |
Wavelength | 470 |
Color | Blue |
Driver | I3S |
Ingress Protection | IP50 |
Weight | 50g |
Can Be Strobed | Yes |
Can Be Overdrive Strobed | Yes |
Can Be Constantly On | Yes |
Can Be Dimmed | Dimmable |
Connection | 2M Flying Lead |
Full Description
The SL073 is characterized as a Compact Spot Light with sufficient thermal management to provide 31kLux at a working distance of 4� (100mm).
A wide range of wavelengths are available from UV to IR.
Diffuser and polarizer options are also available.
General Specs
Electrical Specifications | 0.35 A |
Normal Operating Temperature |
0 - 60°C |
Weight | 50g (1.76oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850 Group 1 (Low-Risk) Applicable Wavelengths: 470, 530, 590, 625, WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP50 |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
![]() |
WHITE |
470 |
![]() |
470nm Blue |
530 |
![]() |
530nm Green |
590 |
![]() |
590nm Amber |
625 |
![]() |
625nm Red Orange |
850 |
![]() |
850nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() |
Optical Specs
![]() ![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
![]() |
Advanced Illumination SL073-470I3S Downloads:
![]() |
|
