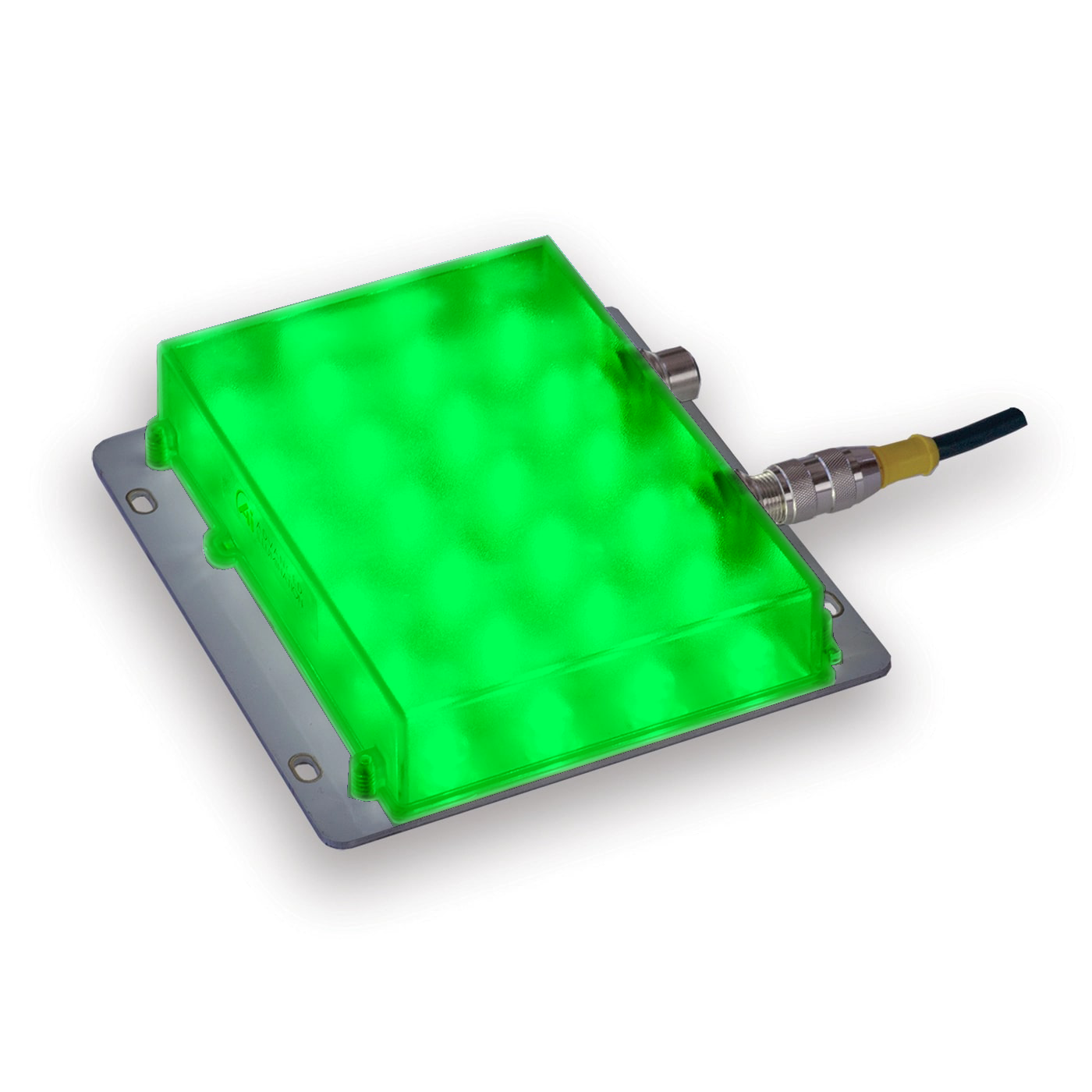

EuroBrite Large Spot Lights - SL Series
|Can Be Strobed||Yes|
|Can Be Overdrive Strobed||Yes|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Dimmable|
|Connection||M12 5 Pole|
Our EuroBrite„¢ lineup outdoes the competition in so many ways. With more features at a competitive price point, there™s no better value in machine vision lighting:
Complete built-in control for continuous and strobe modes.
Adaptive Power„¢, a feature of the EuroBrite„¢ lighting controller, utilizes an onboard thermistor to maximize light output in continuous mode.
Adaptive Overdrive,„¢ another feature of the EuroBrite„¢ lighting controller, provides a maximal output pulse in strobe mode regardless of the exposure period.
IP67 sealed enclosure suitable for washdown environments.
Rugged construction that has been tested to withstand over 1000lb.
Industrial grade LEDs providing high-intensity illumination of 85klux (working distance of 100mm).
Daisy chain up to 4 for a combined length of 24�.
|Input Voltage Range||24V nom. (min 22/max 28)|
|Maximum Input Current||0.42A - 0.49A|
|Strobe/On-Off Control||Up to 5x overdrive, active high|
|Analog Intensity Control||Analog 0.7-10V; 0.7V=10% 10V=100%|
|Normal Operating Temperature||
0 - 60°C
|Weight||265.81g (9.38oz) (0.586lb)|
|Standard Cable Information||No cable included; see part number LC2-M12-5-FX and LC.5-M12-5-FM or use standard coded 5-pin M12.|
|Photobiological Risk Factor||
Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
|Compliance||CE, RoHS, IEC 62471|
|Lumen Maintenance||L70 = 50,000 Hours|
||455nm Royal Blue|
||625nm Red Orange|
||730nm Infra-Red (IR)|
||850nm Infra-Red (IR)|
||940nm Infra-Red (IR)|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination SL-S100150M-505 Downloads:
