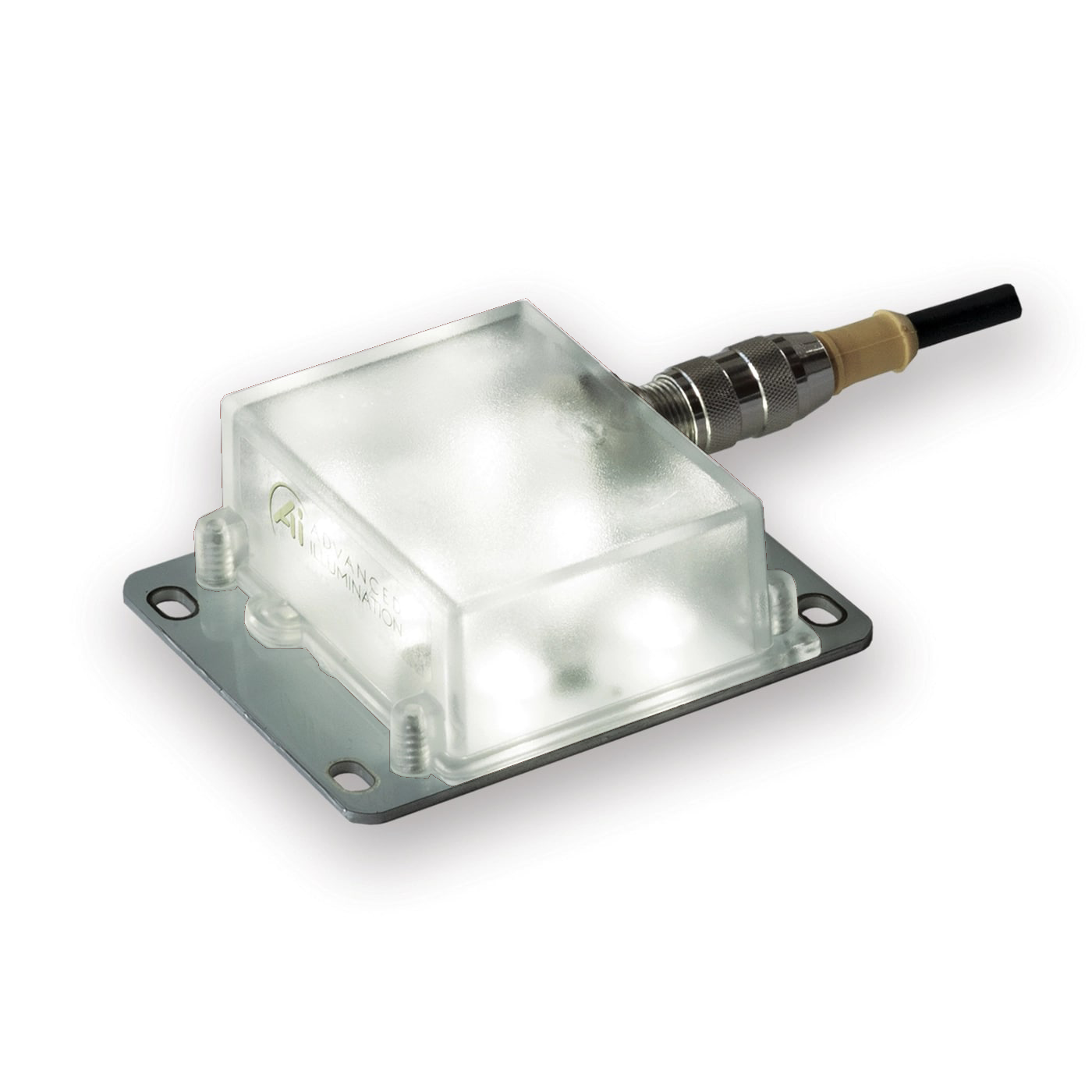

SL-S050075M-WHI EuroBrite Small Spot Light, White, Medium Lens, EuroBrite Driver

Advanced IlluminationSKU: SL-S050075M-WHI
Lead Time: 1 Week

Price:
Sale price$268.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

EuroBrite Small Spot Lights - SL Series

SL-S050075M-WHI Specifications:

Brand Advanced Illumination
Series SL-S050075
Wavelength WHI
Color White
Driver 0
Ingress Protection IP67
Lens Medium
Weight 92.53g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection M12 5 Pole

Full Description

Our EuroBrite„¢ lineup outdoes the competition in so many ways. With more features at a competitive price point, there™s no better value in machine vision lighting:

Complete built-in control for continuous and strobe modes.

Adaptive Power„¢, a feature of the EuroBrite„¢ lighting controller, utilizes an onboard thermistor to maximize light output in continuous mode.

Adaptive Overdrive,„¢ another feature of the EuroBrite„¢ lighting controller, provides a maximal output pulse in strobe mode regardless of the exposure period.

IP67 sealed enclosure suitable for washdown environments.

Rugged construction that has been tested to withstand over 1000lb.

Industrial grade LEDs providing high-intensity illumination of 136klux (working distance of 100mm).

General Specs

Electrical Specifications ~0.27 A
Input Voltage Range 24V nom. (min 22/max 28)
Maximum Input Current 0.42A - 0.49A
Strobe/On-Off Control Up to 5x overdrive, active high
Analog Intensity Control Analog 0.7-10V; 0.7V=10% 10V=100%
Trigger-to-Pulse Latency 10μsec
Normal Operating Temperature

0 - 60°C

Weight 92.53g (3.27oz)
Standard Cable Information No cable included; see part number LC2-M12-5-FX or use standard coded 5-pin M12.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP67
Lumen Maintenance L70= 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
505
Advanced Illumination 505nm Cyan Light
505nm Cyan
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 SL-S050075 EuroBrite Small Spot Light Mechanical Specs | Advanced Illumination


 Optical Specs

 SL-S050075 EuroBrite Small Spot Light Optical Specs | Advanced IlluminationSL-S050075 EuroBrite Small Spot Light Optical Specs | Advanced Illumination

Electrical Specs

 SL-S050075 EuroBrite Small Spot Light Electrical Specs | Advanced Illumination


Part No Key

 SL-S050075 EuroBrite Small Spot Light Part No Key | Advanced Illumination

Advanced Illumination SL-S050075M-WHI Downloads:

Advanced Illumination SL-S050075M-WHI Datasheet | Machine Vision Direct
Advanced Illumination SL-S050075M-WHI CAD PDF | Machine Vision Direct
Advanced Illumination SL-S050075M-WHI CAD DXF | Machine Vision Direct
Advanced Illumination SL-S050075M-WHI CAD STEP MODEL | Machine Vision Direct
