Description

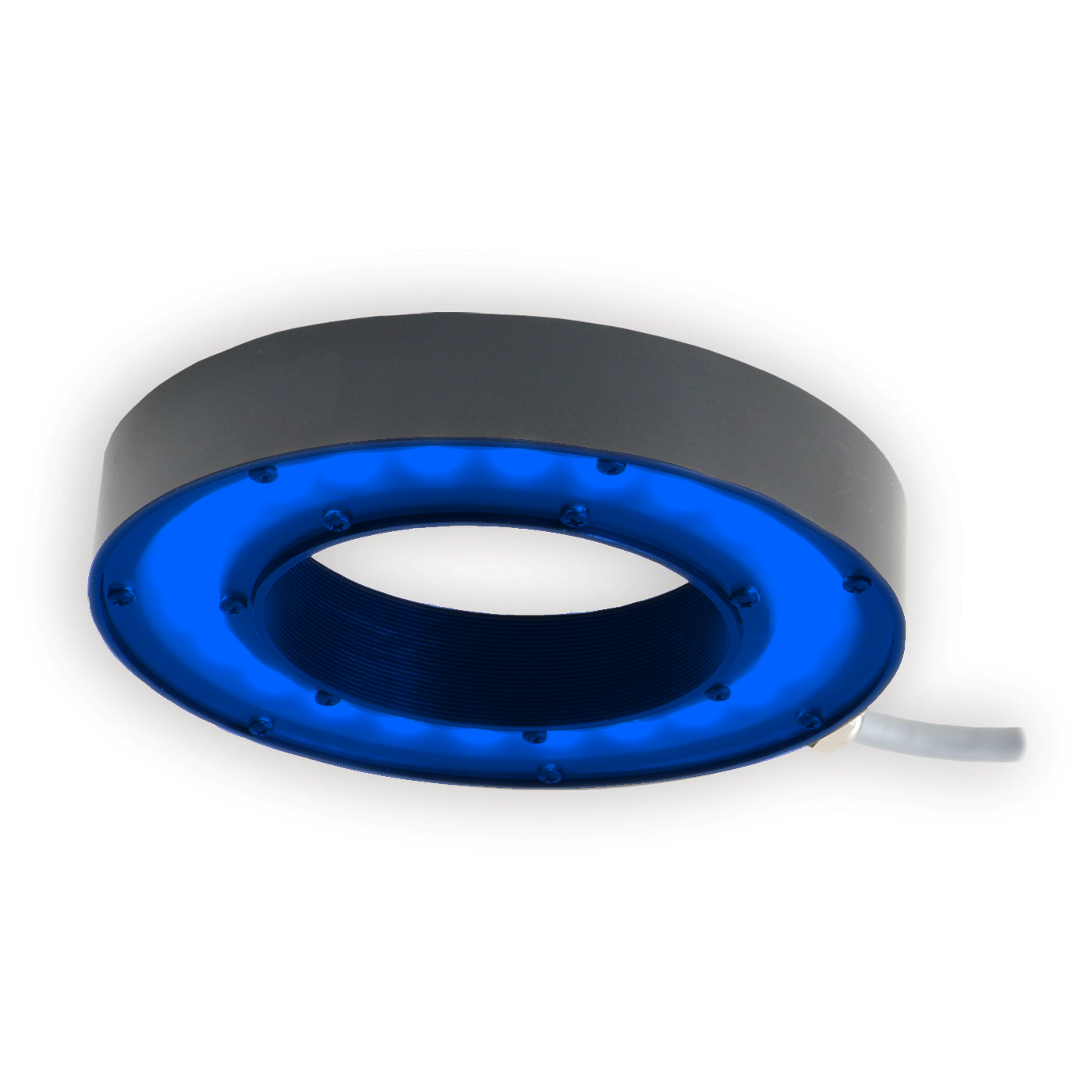

Large High Dispersion Bright Field Ring Lights - RL Series
RL127-470I3S Specifications:
Brand | Advanced Illumination |
Series | RL127 |
Wavelength | 470 |
Color | Blue |
Driver | I3S |
Ingress Protection | IP67 |
Inner Diameter | 66.4 mm |
Outer Diameter | 116.8 mm |
Illuminated Field of View | .0 mm |
Weight | 421g |
Can Be Strobed | Yes |
Can Be Overdrive Strobed | Yes |
Can Be Constantly On | Yes |
Can Be Dimmed | Dimmable |
Connection | 2M Flying Lead |
Full Description
The RL127 is characterized as a Large High Dispersion Bright Field ring light.
Non-lensed LEDs disperse light at broad angles, providing œsoft� lighting for applications that require short to medium working distances.
The low-profile design is only .75� (19mm) thick, with an O.D. of 4.6� (117mm) and I.D. of 2.61� (66.3mm) allowing it to be used in space constrained applications.
The I.D. provides a standard 67mm diameter thread with a pitch of .75mm for further mounting flexibility.
A wide variety of wavelengths are available from UV to IR. An optional polarizer and/or diffuser may be used to further condition the light output.
The RL121 delivers 20kLux at a working distance of 100mm.
General Specs
Electrical Specifications | 0.48A |
Normal Operating Temperature |
0 - 60°C |
Weight | 308g (10.9) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 530, 590, 625, WHI Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405 |
Compliance | CE, RoHS, IEC 62417 |
IP Rating | IP67 |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
![]() |
WHITE |
365 |
![]() |
365nm Ultra-Violet (UV) |
375 |
![]() |
375nm Ultra-Violet (UV) |
385 |
![]() |
385nm Ultra-Violet (UV) |
395 |
![]() |
395nm Ultra-Violet (UV) |
455 |
![]() |
455nm Royal Blue |
470 |
![]() |
470nm Blue |
530 |
![]() |
530nm Green |
590 |
![]() |
590nm Amber |
625 |
![]() |
625nm Red Orange |
850 |
![]() |
850nm Infra-Red (IR) |
940 |
![]() |
940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() |
Optical Specs
![]() ![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
![]() |
