RL121 Small High Dispersion Bright Field Ring Light

Advanced IlluminationSKU: RL121-36524
Lead Time: 2 Weeks

Color: UV (365nm)
Driver: 24 Volt
Price:
Sale price$822.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Small High Dispersion Bright Field Ring Lights - RL Series

RL121 Specifications:

Brand Advanced Illumination
Series RL121
Wavelength VARIES
Color VARIES
Driver 24
Ingress Protection IP50
Inner Diameter 35.1 mm
Outer Diameter 75 mm
Illuminated Field of View .0 mm
Weight 204g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

The RL121 is characterized as a Small High Dispersion Bright Field ring light.

Non-lensed LEDs disperse light at broad angles, providing œsoft� lighting for applications that require short working distances.

The low-profile design is only .56� (14.2mm) thick, allowing it to be used in space constrained applications.

Optional adapter rings are available for camera lens mounting.

A wide variety of wavelengths are available from UV to IR. An optional polarizer and/or diffuser may be used to further condition the light output.

The RL121 delivers 27kLux at a working distance of 50mm.

General Specs

Electrical Specifications 0.24 A
Normal Operating Temperature

0 - 60°C

Weight 164g (5.78oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low Risk) Applicable Wavelengths: 455, 470, 530, 590, 625, WHI
Group 2 (Moderate Risk) Application Wavelengths: 365, 375, 385, 395, 405
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description

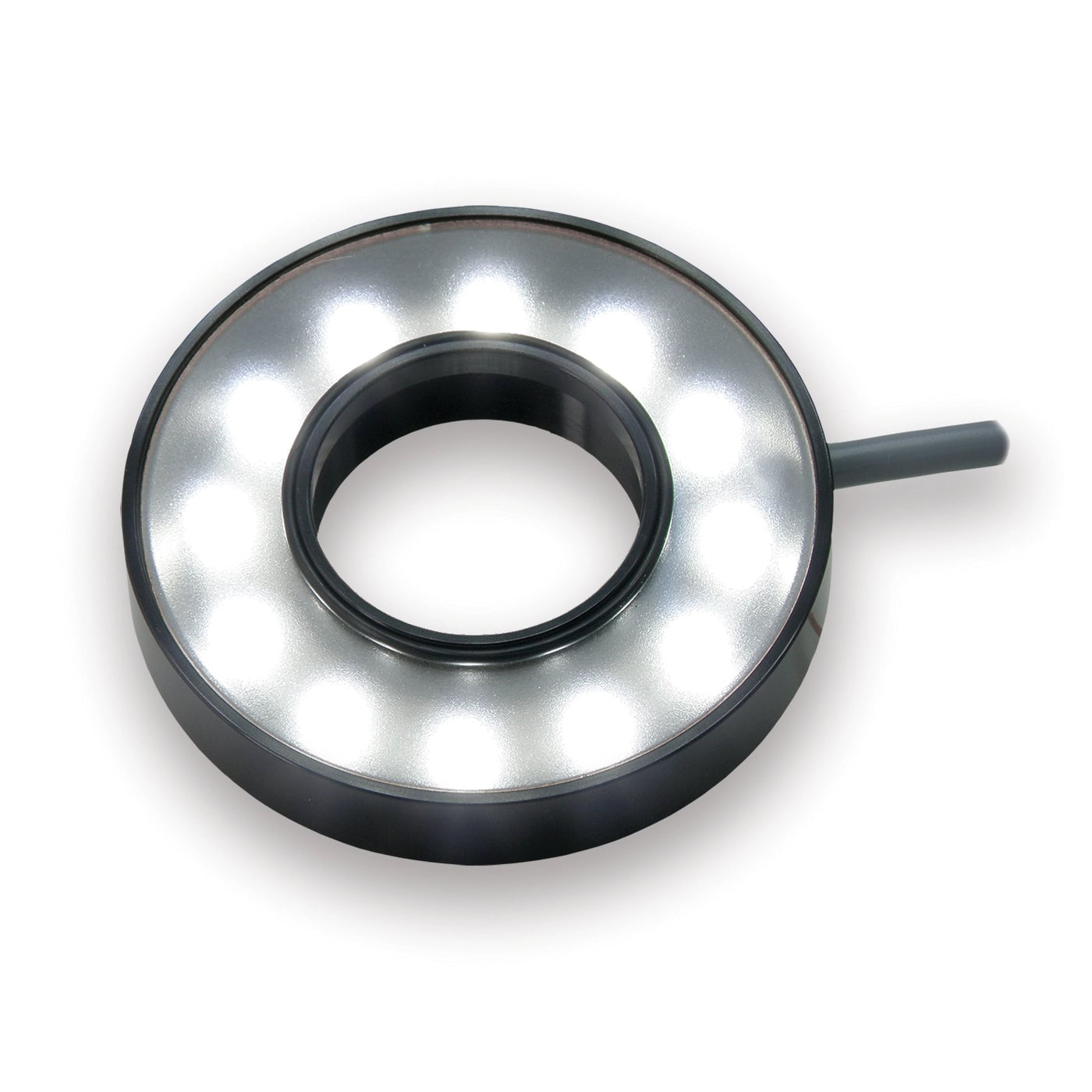

WHITE
Advanced Illumination White Lights
WHITE
365
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
375
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)
385
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)

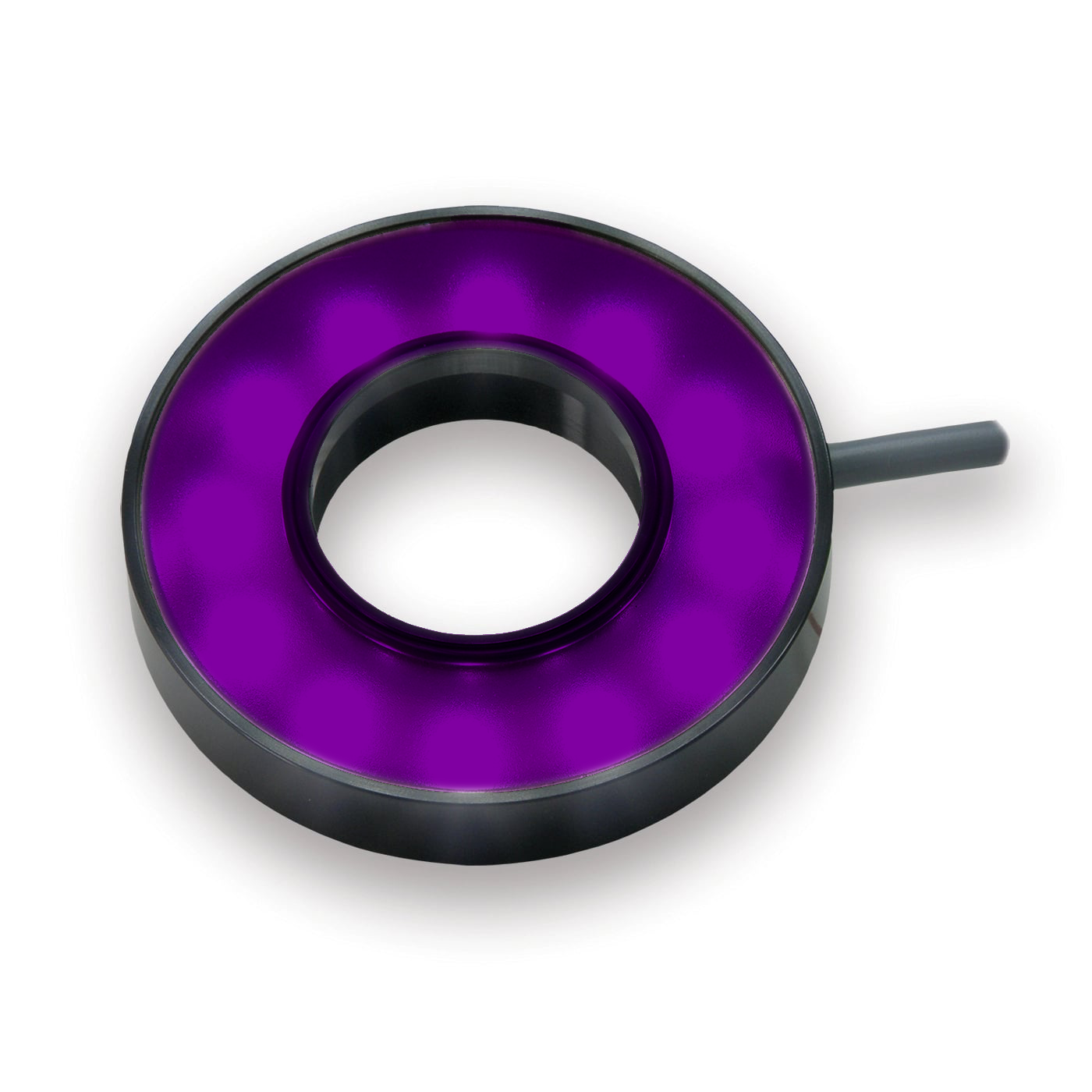

395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)

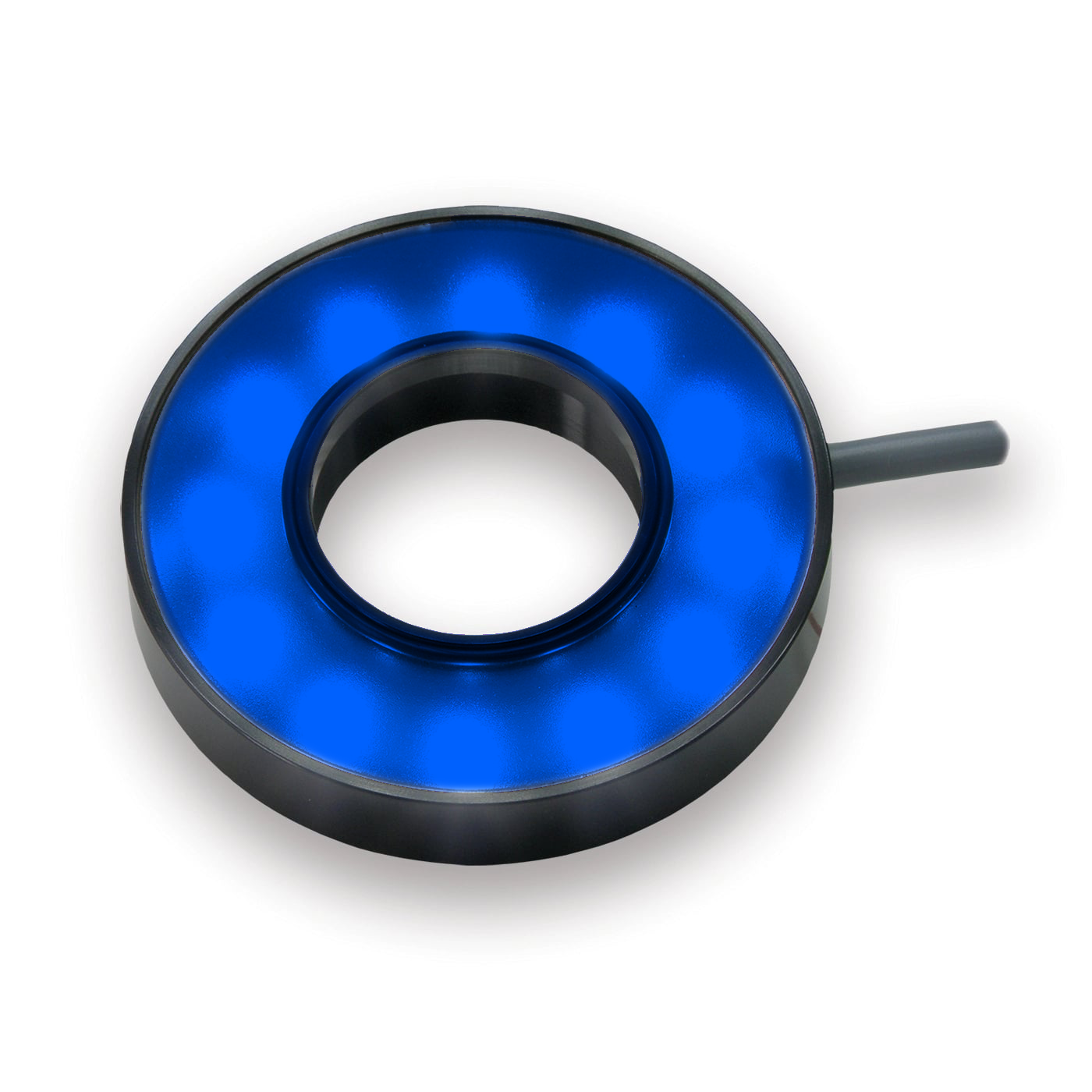

455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
530
Advanced Illumination 530nm Green Light
530nm Green

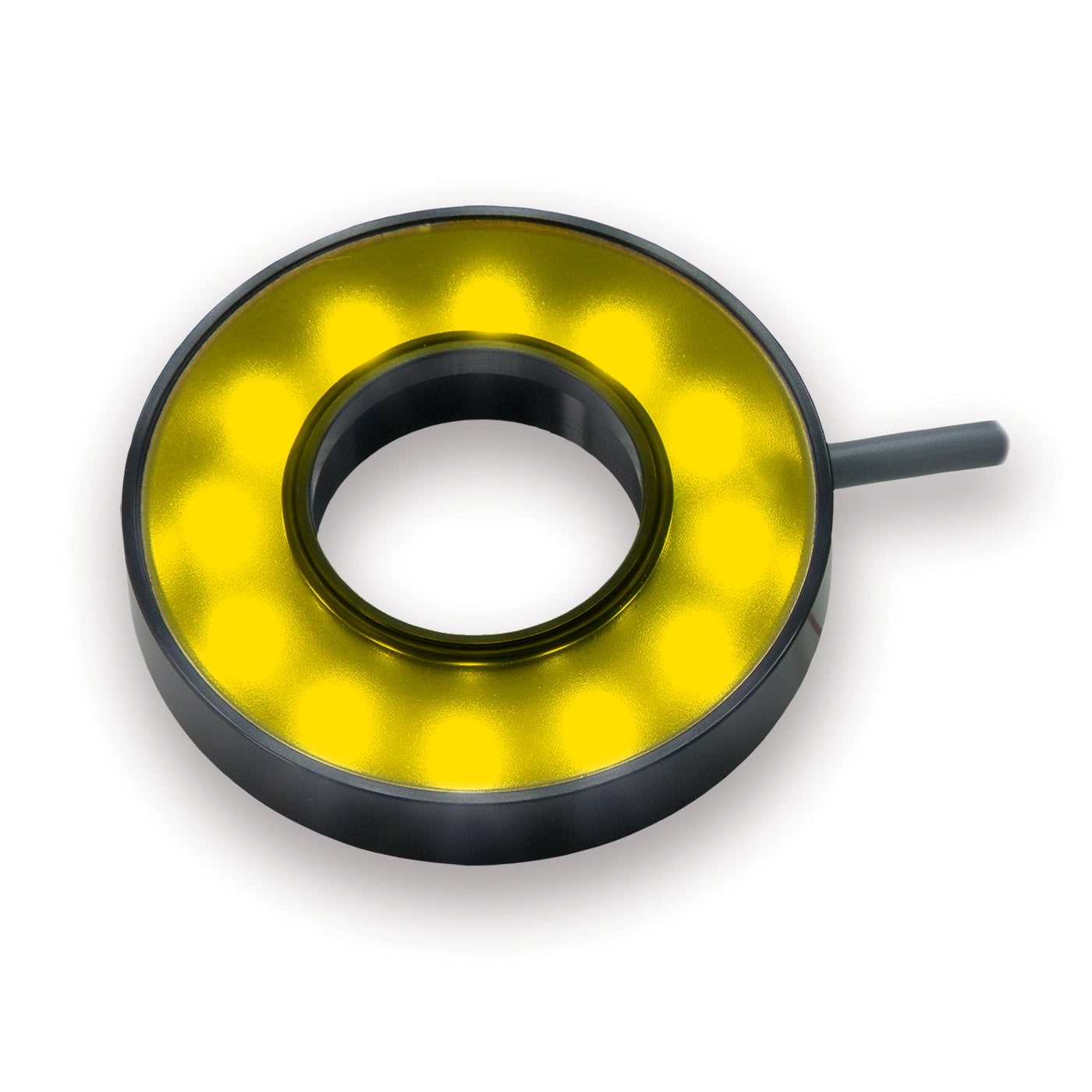

590
Advanced Illumination 590nm Amber Light
590nm Amber

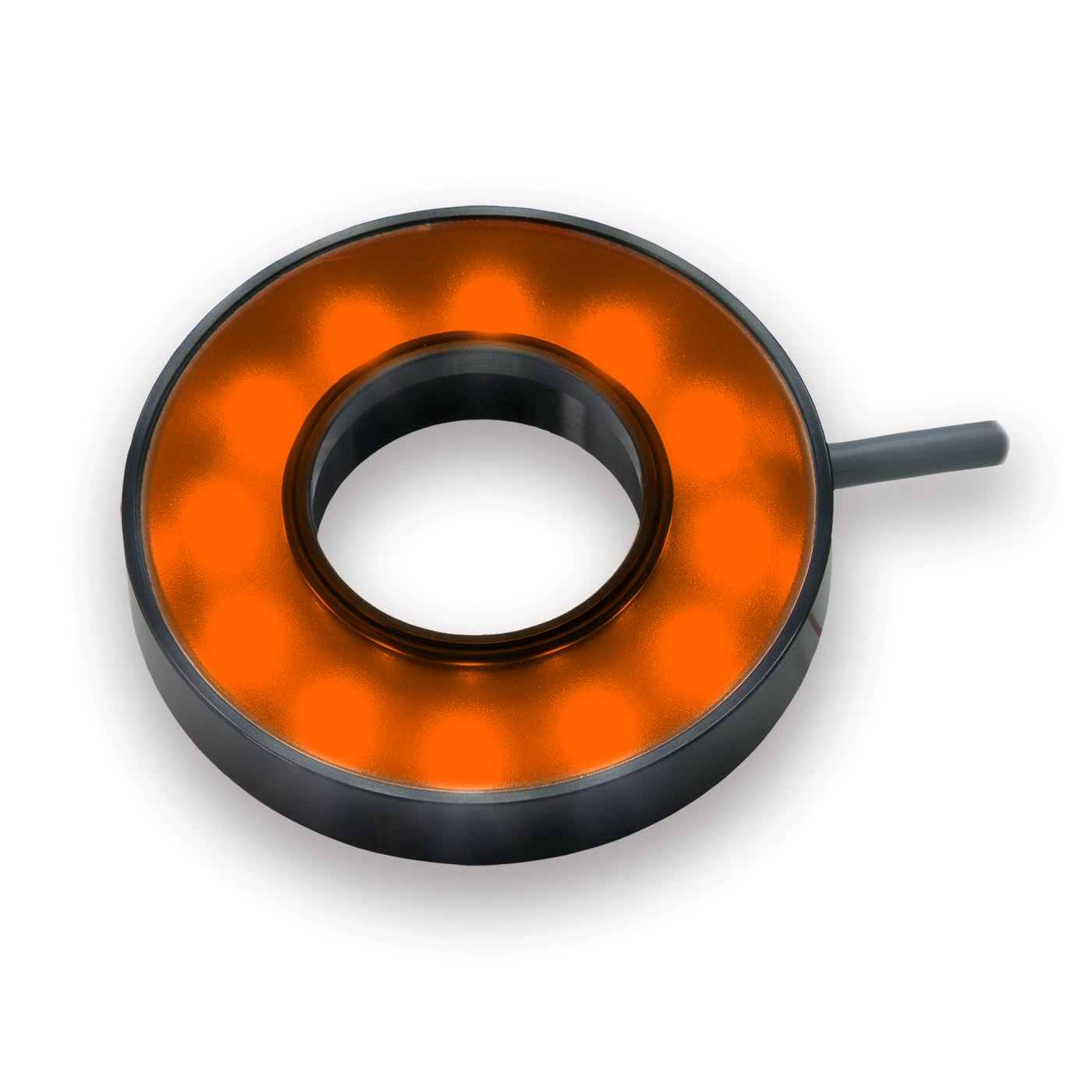

625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)

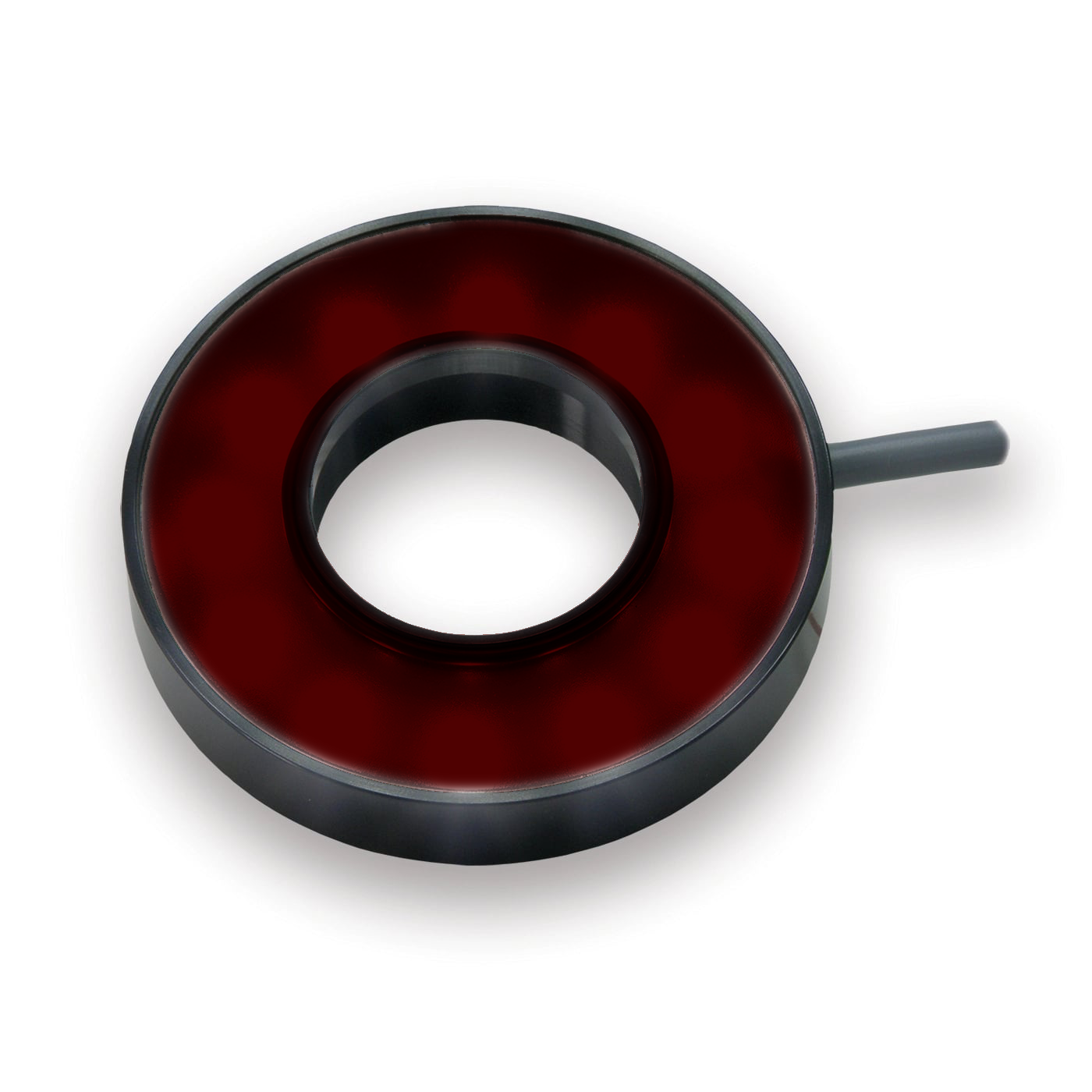

940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 RL121 Small High Dispersion Bright Field Ring Lights Mechanical Specs | Advanced IlluminationRL121 Small High Dispersion Bright Field Ring Lights Mechanical Specs | Advanced IlluminationRL121 Small High Dispersion Bright Field Ring Lights Mechanical Specs | Advanced IlluminationRL121 Small High Dispersion Bright Field Ring Lights Mechanical Specs | Advanced Illumination


 Optical Specs

 RL121 Small High Dispersion Bright Field Ring Lights Optical Specs | Advanced IlluminationRL121 Small High Dispersion Bright Field Ring Lights Optical Specs | Advanced Illumination

Electrical Specs

 RL121 Small High Dispersion Bright Field Ring Lights Electrical Specs | Advanced Illumination


Control Specs

 RL121 Small High Dispersion Bright Field Ring Lights Control Specs | Advanced Illumination

Part No Key

 RL121 Small High Dispersion Bright Field Ring Lights Part No Key | Advanced Illumination

Advanced Illumination RL121 Downloads:

Advanced Illumination RL121 Datasheet | Machine Vision Direct
Advanced Illumination RL121 CAD PDF | Machine Vision Direct
Advanced Illumination RL121 CAD DXF | Machine Vision Direct
Advanced Illumination RL121 CAD STEP MODEL | Machine Vision Direct
