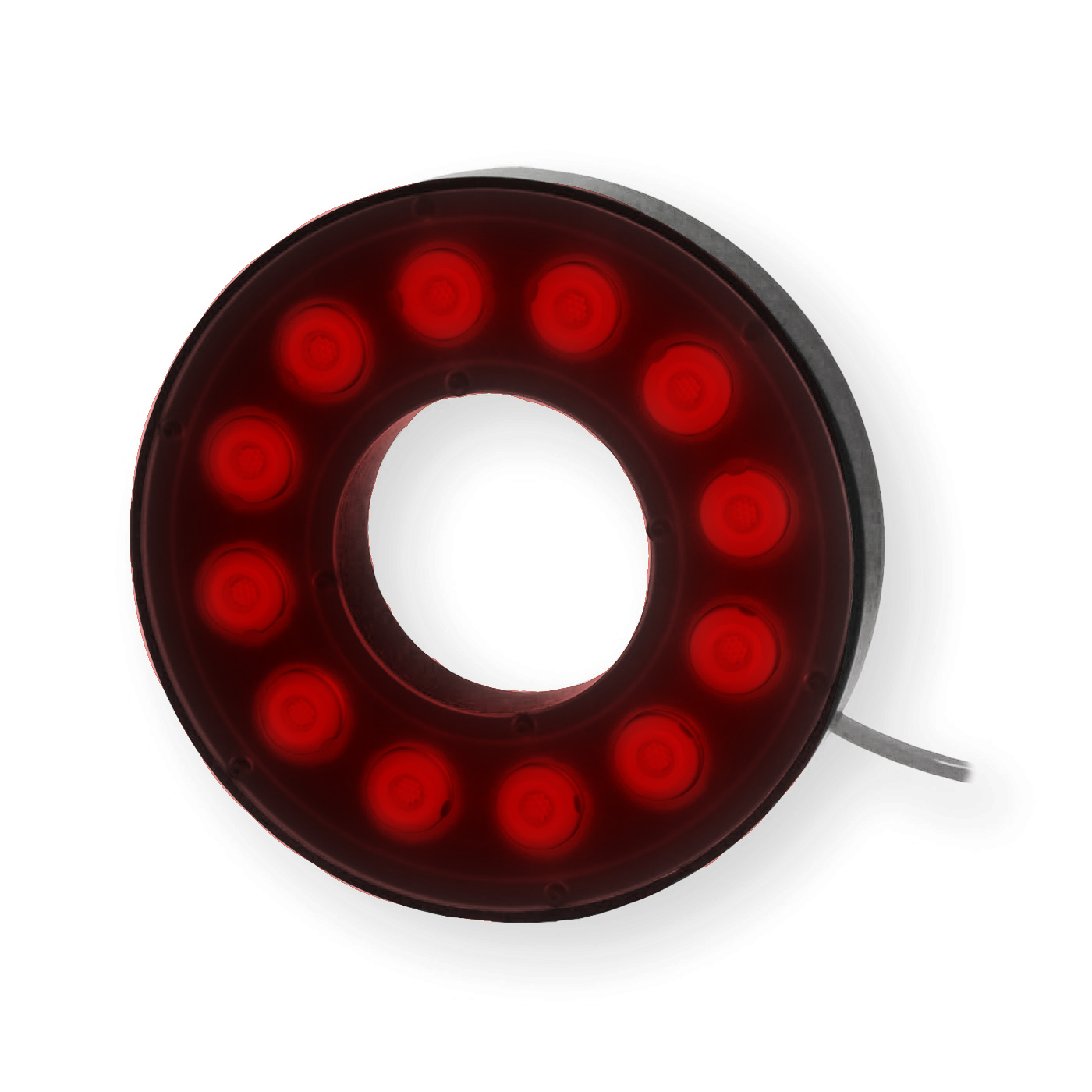

RL113W-730I3S High Intensity Bright Field Ring Light, 730nm Infra-Red (IR), ICS 3S (I3S) Driver

Advanced IlluminationSKU: RL113W-730I3S
Lead Time: 2 Weeks

Price:
Sale price$1,683.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

High Intensity Bright Field Ring Lights - RL Series

RL113W-730I3S Specifications:

Brand Advanced Illumination
Series RL113
Wavelength 730
Color Infra-Red (IR)
Driver I3S
Ingress Protection IP67
Lens WIDE
Inner Diameter 66 mm
Outer Diameter 152.4 mm
Illuminated Field of View .0 mm
Weight 811g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

The RL113 High Intensity Bright Field ring light offers a very wide array of wavelengths from UV to IR.

With intensities of up to 45.5kLux at 12� (300mm), the RL113 is particularly well suited to longer working distances.

A rugged, heavy enclosure, compliant with IP67 requirements, is well suited to demanding environments.

General Specs

Electrical Specifications 0.54 A
Normal Operating Temperature

0 - 60°C

Weight 725.7g (25.60z)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Line 1.5
Line 2 Line 2 Line 2
Compliance CE, RoHS, IEC 6247
IP Rating IP67
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
365
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
375
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)
385
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)
395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
505
Advanced Illumination 505nm Cyan Light
505nm Cyan
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 RL113 High Intensity Bright Field Ring Lights Mechanical Specs | Advanced Illumination


 Optical Specs

 RL113 High Intensity Bright Field Ring Lights Optical Specs | Advanced IlluminationRL113 High Intensity Bright Field Ring Lights Optical Specs | Advanced Illumination

Electrical Specs

 RL113 High Intensity Bright Field Ring Lights Electrical Specs | Advanced Illumination


Control Specs

 RL113 High Intensity Bright Field Ring Lights Control Specs | Advanced Illumination

Part No Key

 RL113 High Intensity Bright Field Ring Lights Part No Key | Advanced Illumination

Advanced Illumination RL113W-730I3S Downloads:

Advanced Illumination RL113W-730I3S Datasheet | Machine Vision Direct
Advanced Illumination RL113W-730I3S CAD PDF | Machine Vision Direct
Advanced Illumination RL113W-730I3S CAD DXF | Machine Vision Direct
Advanced Illumination RL113W-730I3S CAD STEP MODEL | Machine Vision Direct
