RL-S052120 EuroBrite Ring Light

Advanced IlluminationSKU: RL-S052120M-455
Lead Time: 1 Week

Color: Royal Blue (455nm)
Driver: EuroBrite
Sale price$338.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


Ring Lights - RL Series

RL-S052120 Specifications:

Brand Advanced Illumination
Series RL-S052120
Wavelength VARIES
Driver 0
Ingress Protection IP65
Inner Diameter 52.1 mm
Outer Diameter 120 mm
Illuminated Field of View .0 mm
Weight 182g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection M12 5 Pole

Full Description

Our EuroBrite„¢ lineup outdoes the competition in so many ways. With more features at a competitive price point, there™s no better value in machine vision lighting:

Complete built-in control for continuous and strobe modes.

Adaptive Power„¢, a feature of the EuroBrite„¢ lighting controller, utilizes an onboard thermistor to maximize light output in continuous mode.

Adaptive Overdrive,„¢ another feature of the EuroBrite„¢ lighting controller, provides a maximal output pulse in strobe mode regardless of the exposure period.

IP67 sealed enclosure suitable for washdown environments.

Rugged construction that has been tested to withstand over 1000lb.

Industrial grade LEDs providing high-intensity illumination of 33klux (working distance of 100mm).

General Specs

Electrical Specifications ~0.54A
Input Voltage Range 24V nom. (min 22/max 28)
Maximum Input Current 0.42-0.49A
Strobe/On-Off Control Up to 5X overdrive, active high
Analog Intensity Control Analog 0.7-10V; 0.7V=10% 10V=100%
Trigger-to-Pulse Latency 10μsec
Normal Operating Temperature

0 - 60°C

Weight 172.4g (6.1oz)
Standard Cable Information No cable included; see part number LC2-M12-5-FX or use standard coded 5-pin M12.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP67
Lumen Maintenance L70 = 50,000 Hours


Available Wavelengths

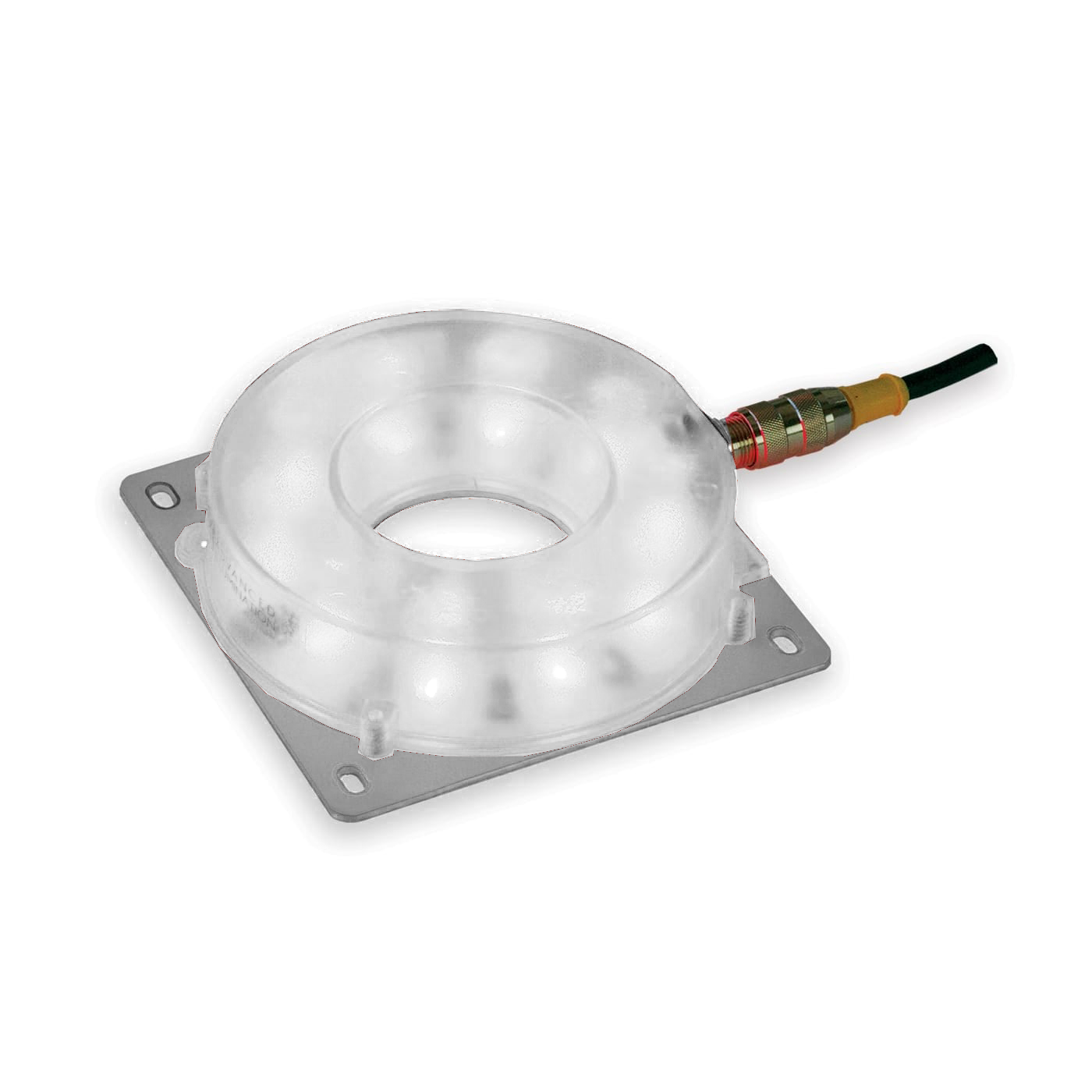

Advanced Illumination White Lights
455nm Royal Blue
Advanced Illumination 470nm Blue Light
470nm Blue
Advanced Illumination 505nm Cyan Light
505nm Cyan
Advanced Illumination 530nm Green Light

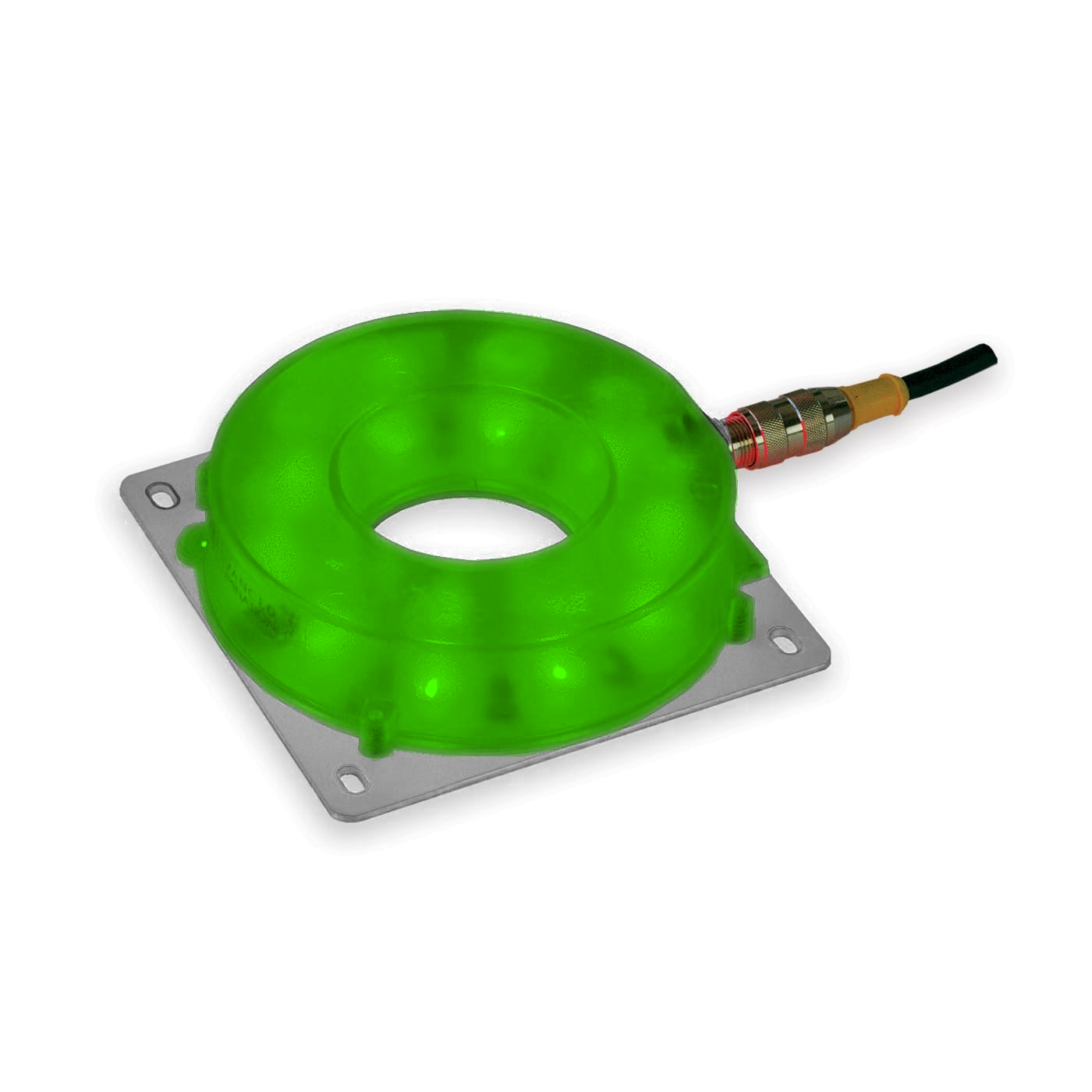

530nm Green
Advanced Illumination 590nm Amber Light

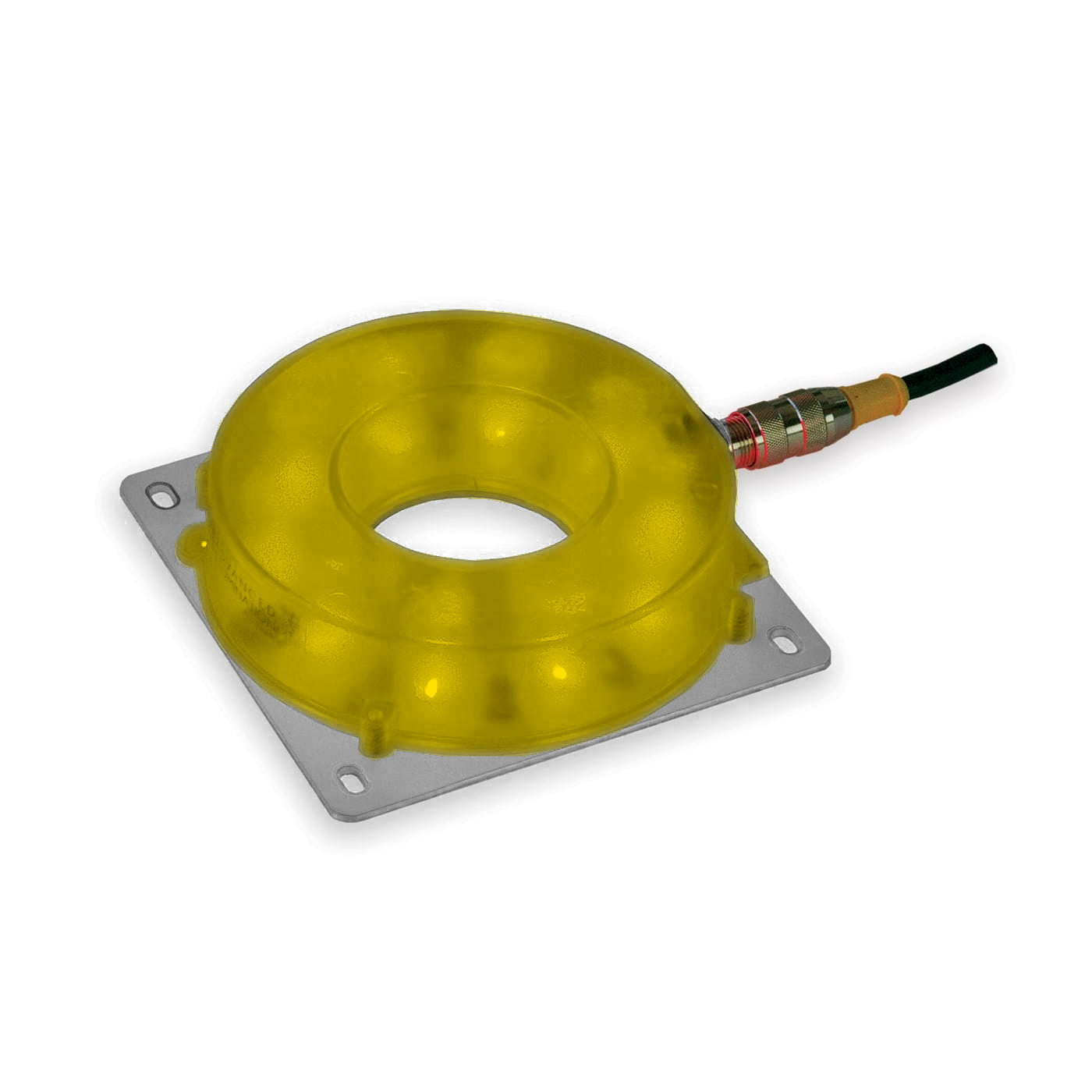

590nm Amber
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
Advanced Illumination 660nm Red Light

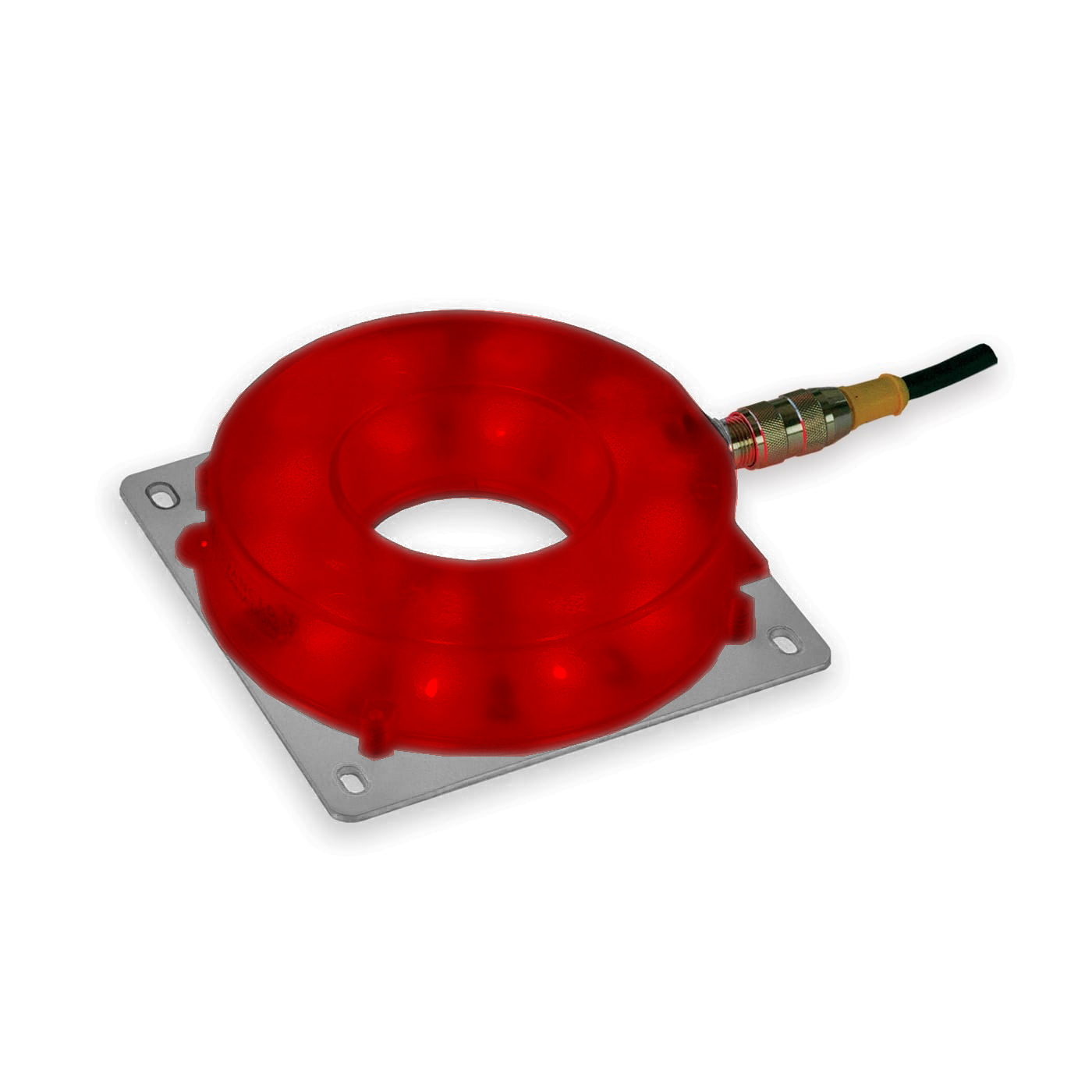

660nm Red
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
Advanced Illumination 850nm Infra-Red (IR) Light

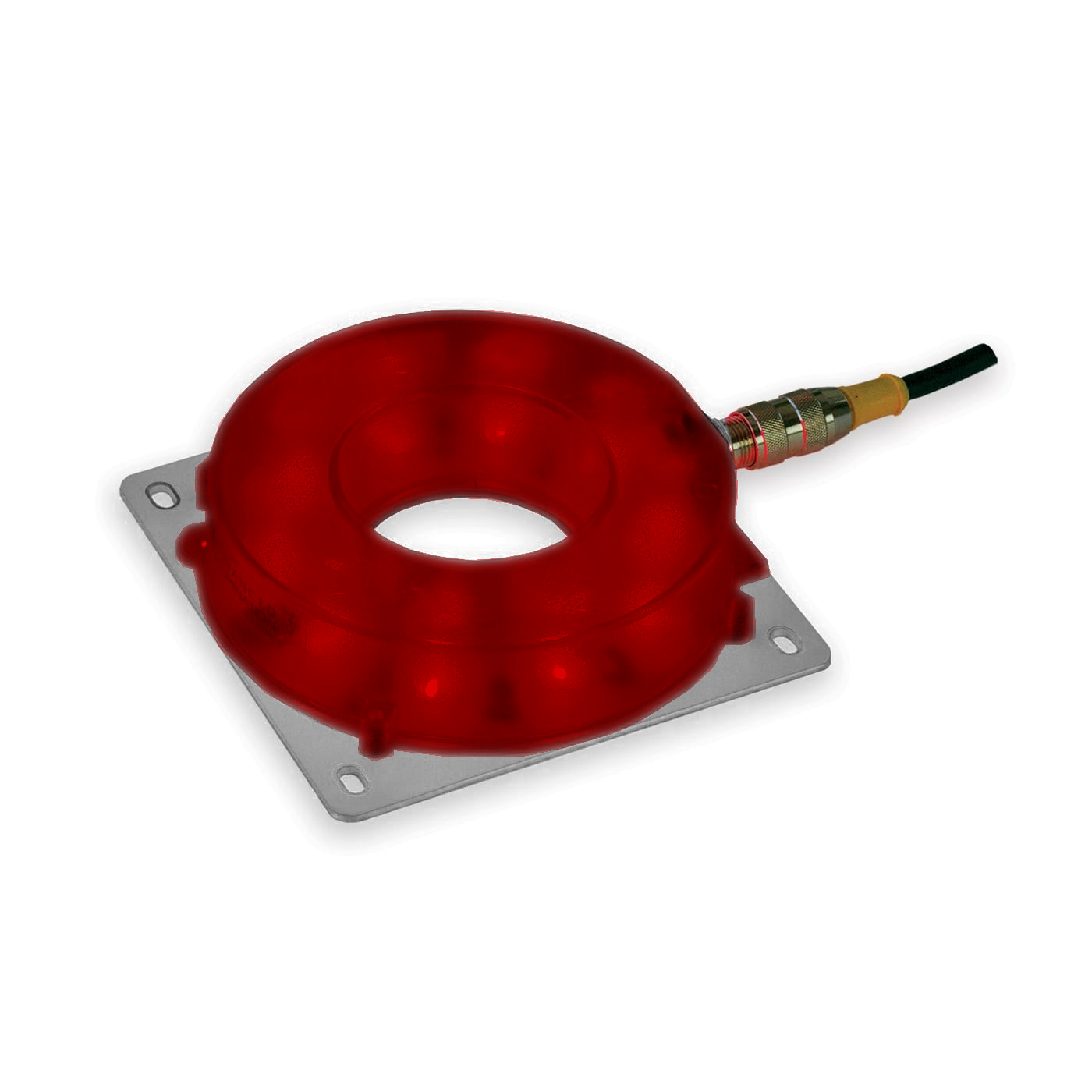

850nm Infra-Red (IR)
Advanced Illumination 940nm Infra-Red (IR) Light

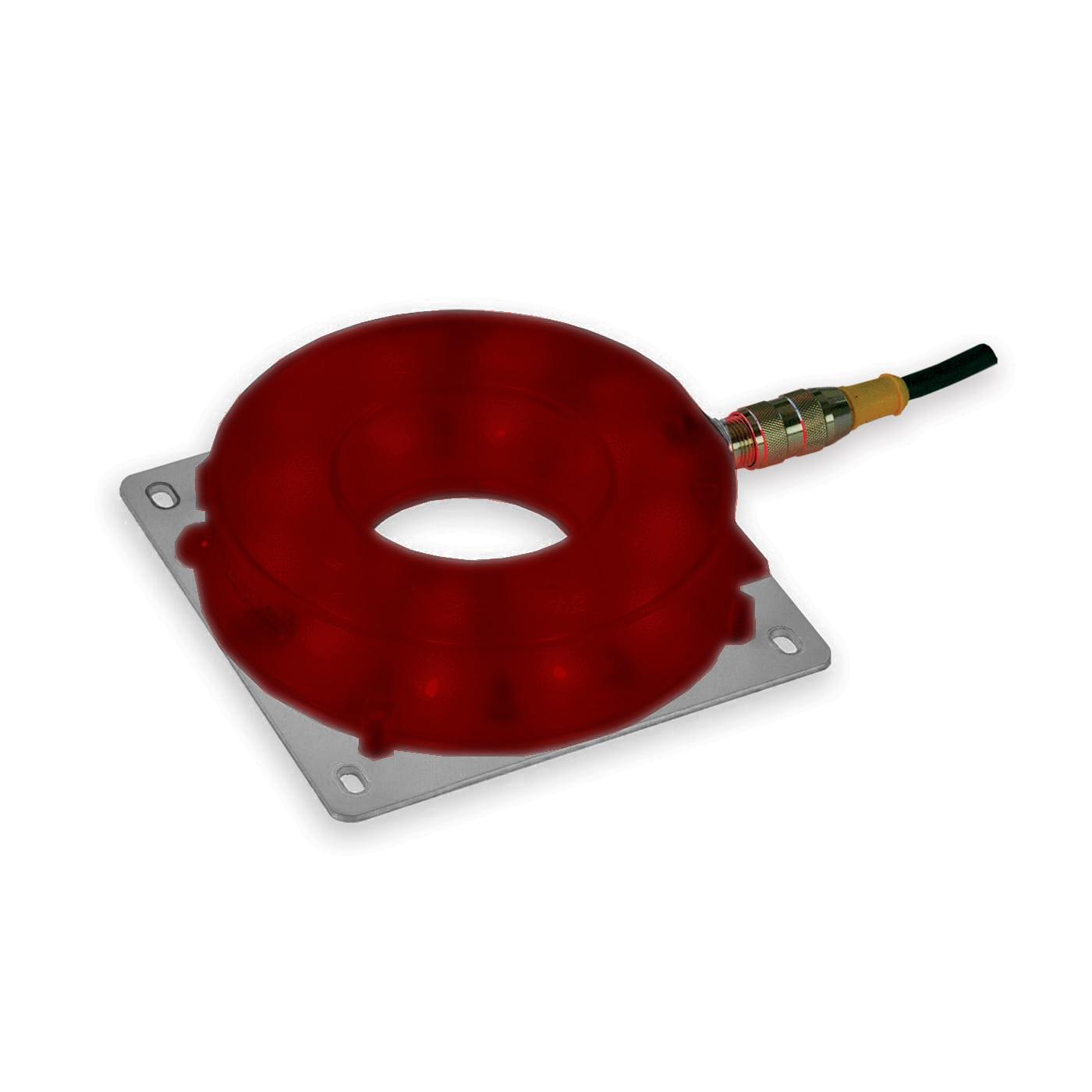

940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 RL-S052120 Ring Lights Mechanical Specs | Advanced Illumination

 Optical Specs

 RL-S052120 Ring Lights Optical Specs | Advanced IlluminationRL-S052120 Ring Lights Optical Specs | Advanced Illumination

Electrical Specs

 RL-S052120 Ring Lights Electrical Specs | Advanced Illumination

Part No Key

 RL-S052120 Ring Lights Part No Key | Advanced Illumination

Advanced Illumination RL-S052120 Downloads:

Advanced Illumination RL-S052120 Datasheet | Machine Vision Direct
Advanced Illumination RL-S052120 CAD PDF | Machine Vision Direct
Advanced Illumination RL-S052120 CAD DXF | Machine Vision Direct
Advanced Illumination RL-S052120 CAD STEP MODEL | Machine Vision Direct
