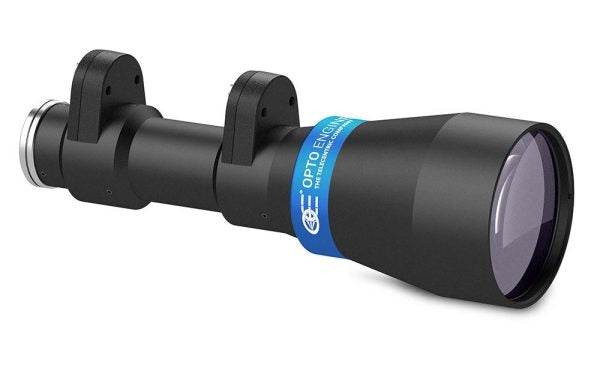

Opto Engineering TCZEL23056 2/3″ f/9 and f/16 15 mm - 155 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TCZEL23056

Price:
Sale price$8,117.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Opto Engineering TCZEL23056

The TCZEL series features telecentric lenses characterized by a highly innovative optical design that integrates two liquid lenses whose synergy allows you to control both the magnification and the working distance. These lenses, therefore, combine the accuracy of telecentric lenses, the advantages of zoom optics, and the extreme versatility of liquid lenses.

TCZEL lenses work in white light with excellent color correction in the nominal magnification and working distance ranges. In monochrome, better performance can be obtained, especially when operating in the extended range.

TCZEL23056 Technical Specifications:

Product Line / Series TCZEL
Brand Opto Engineering
Lens Type Telecentric
Connector HR10A-7R-6PBc
IP Rating Not Specified
Magnification 0.18 - 0.55×
Image Circle Diameter 11 mm
Image Size Dimensions Not Specified
Imager Format 2/3″
Distortion Typical (%) < 0.3
Distortion Maximum (%) Not Specified
Phase Adjustment Yes
Telecentricity Typical < 0.3° < 0.3°
Working Distance 15 mm - 155 mm
Depth Of Field 14.4 mm 2.7 mm
Working ƒ/N ƒ/9 ƒ/16
Resolution (Pixel Size) 32 μm 18 μm
Mount C-Mount
Dimensions Approximate 249.3 x 80 x 80 mm
Front Diameter 80 mm
Weight 967 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) 20-85 Non Condensing
Installation Location Indoor Use Only
Temperature Sensor Yes
Liquid Lens Model EL-16-40-20D
Response Time 5 Milliseconds
Setting Time 25 Milliseconds
Focal Power Mode Yes
Repeatability Using Focal Power Mode (Dpt) ±0.05 (small steps); ±0.1 (large steps) (dpt)
Current Range -500 to +500 mA
Lifecycles (10%-90% Sinusoidal) >1,000,000,000
Magnification Ratio 3x
FoV @ 1/2.5″ 31.67 x 23.78 mm 10.36 x 7.78 mm
FoV @ 1/2″ 35.56 x 26.67 mm 11.64 x 8.73 mm
FoV @ 1/1.8″ 39.61 x 29.61,12.96 x 9.69
FoV @ 2/3″ 47.22 x 39.39 mm 15.45 x 12.89 mm
