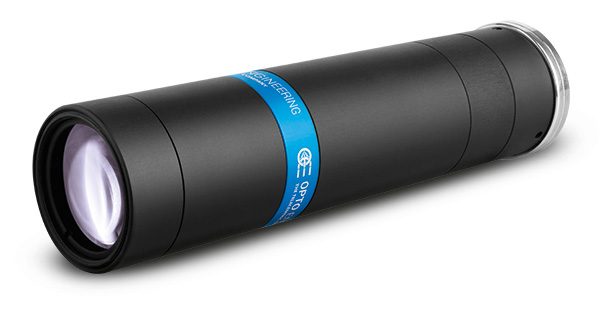

Opto Engineering TCLWD075 2/3″ f/12 132.3 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TCLWD075

Price:
Sale price$1,919.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 04/30/2025, 06/04/2025, 06/05/25, and 10/23/25. Pricing is subject to change and may fluctuate.

Opto Engineering TCLWD075

TCLWD is a range of telecentric lenses specifically designed for electronic and semiconductor Automated Optical Inspection (AOI) and tool pre-setting machines.All these lenses feature a working distance of 132 mm while ensuring excellent optical resolution, high telecentricity, and low distortion, thus matching and even exceeding the industrial requirements for the target applications. The long working distance allows for extra space, which is essential if you need to install illumination, pick up tools or provide the necessary separation from hazardous production processes.

In addition to the long working distance, TCLWD optics deliver a numerical aperture large enough to take advantage of high resolution / small pixel size cameras, making these lenses a perfect match for general-purpose 2D measurement systems.

TCLWD075 Technical Specifications:

Product Line / Series TCLWD
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.75×
Image Circle Diameter 11 mm
Image Size Dimensions Not Specified
Imager Format 2/3″
Distortion Typical (%) < 0.1
Distortion Maximum (%) < 0.2
Phase Adjustment Yes
Telecentricity Typical < 0.04°
Telecentricity Maximum 0.06°
Working Distance 132.3 mm
Depth Of Field 1.1 mm
Working ƒ/N ƒ/12
Resolution (Pixel Size) 10 μm
Mount C-Mount
Dimensions Approximate 155 x 37. x 37.7 mm
Front Diameter 37.7 mm
Weight 386 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
FoV @ 1/2.5″ 7.60 x 5.71 mm
FoV @ 1/2″ 8.53 x 6.40 mm
FoV @ 1/1.8″ 9.51 x 7.11 mm
FoV @ 2/3″ 11.33 x 9.45 mm
