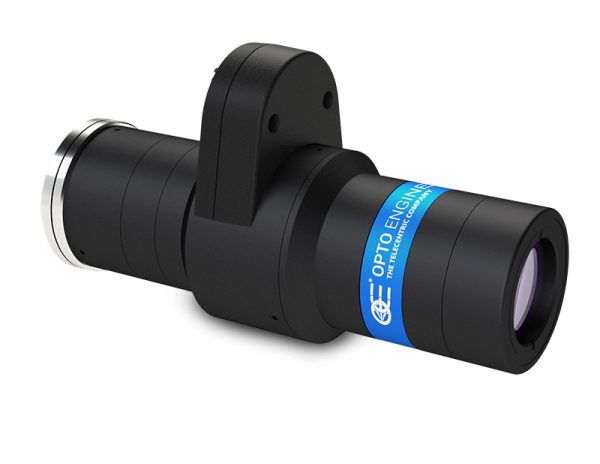

Opto Engineering TCEL100 2/3″ f/12 118.0 - 142.0 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TCEL100

Price:
Sale price$2,799.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Opto Engineering TCEL100

TCEL series by Opto Engineering® features a perfect combination of telecentric optics and liquid lenses technology, significantly increasing the depth of field (DOF). This is particularly important for small fields of view due to the proportionality of the DOF with the magnification. Thanks to their optical design, TCEL lenses ensure excellent optical performances in terms of telecentricity and especially distortion throughout the entire operating range. This makes them perfect for many inspection and measurement applications, from electronic and semicon segments to automotive and pharmaceutical.

< The electronically controlled liquid lenses enable to precisely tune the optical power of telecentric lenses precisely, adjusting the focus. This adjustment can be swift, with response times in a few milliseconds. The driver is a compact USB-powered current source with free software and can be used as a stand-alone solution or integrated into OEM designs. Communication follows an open simple serial protocol, which can be implemented in any programming language on Windows or Linux (C#, Labview, and Python source code available).

TCEL100 Technical Specifications:

Product Line / Series TCEL
Brand Opto Engineering
Lens Type Telecentric
Connector HR10A-7R-6PBc
IP Rating Not Specified
Magnification
Magnification Ranges At -2 Dpt To +3 Dpt 0.991 - 1.016×
Image Circle Diameter 11 mm
Image Size Dimensions Not Specified
Imager Format 2/3″
Distortion Typical (%) < 0.05
Distortion Maximum (%) < 0.1
Phase Adjustment Yes
Telecentricity Typical < 0.08°
Telecentricity Maximum 0.1°
Working Distance 118.0 - 142.0 mm
Depth Of Field 0.6 mm
Working ƒ/N ƒ/12
Resolution (Pixel Size) 8 μm
Mount C-Mount
Dimensions Approximate 126 x 37. x 37.7 mm
Front Diameter 37.7 mm
Weight 374 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) 20-85 Non Condensing
Installation Location Indoor Use Only
Temperature Sensor Yes
Liquid Lens Model EL-16-40
Response Time 5 Milliseconds
Setting Time 25 Milliseconds
Focal Power Mode Yes
Repeatability Using Focal Power Mode (Dpt) ±0.05 (small steps); ±0.1 (large steps) (dpt)
Current Range -500 to +500 mA
Lifecycles (10%-90% Sinusoidal) >1,000,000,000
FoV @ 1/2.5″ 5.70 x 4.28 mm
FoV @ 1/2″ 6.40 x 4.80 mm
FoV @ 1/1.8″ 7.13 x 5.33 mm
FoV @ 2/3″ 8.50 x 7.09 mm
