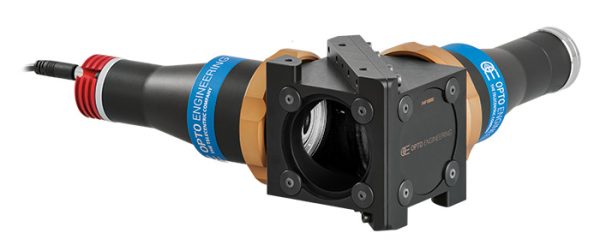

Opto Engineering TCCXQ024-W 2/3″ f/8 20 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TCCXQ024-W

Price:
Sale price$3,815.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Opto Engineering TCCXQ024-W

Coaxial telecentric assemblies for sensors up to 2/3”. CCXQ optical assemblies integrate the high optical performances of TC telecentric lenses and the LTCLHP series' ability to provide accurate and reliable illumination. Pairing these two Opto Engineering® flagship products results in a system completely free from stray light and back-reflections while marking superior optical performances (in terms of resolution, telecentricity, and distortion) even at the highest magnifications.

This optical layout also minimizes the system's overall height, while the placement of the camera port allows for easy phase and back-focal adjustments. TCCXQ assemblies can be successfully employed in high-accuracy measurement applications and Automated Optical Inspection (AOI) setups.

TCCXQ024-W Technical Specifications:

Product Line / Series TCCXQ
Brand Opto Engineering
Lens Type Telecentric
Connector M8
IP Rating Not Specified
Magnification 0.243×
Image Circle Diameter 11 mm
Image Size Dimensions Not Specified
Imager Format 2/3″
Distortion Typical (%) < 0.04
Distortion Maximum (%) < 0.1
Phase Adjustment No
Telecentricity Typical < 0.04°
Telecentricity Maximum 0.08°
Working Distance 20 mm
Depth Of Field 7 mm
Working ƒ/N ƒ/8
Resolution (Pixel Size) 21 μm
Mount C-Mount
Dimensions Approximate 248.3 x 88 x 235.5 mm
Front Diameter Not Specified
Weight 1811 Grams
Filter Thread No Filter Threads
Wavelength 6000 K
Light Color White
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Supply Voltage 12 - 24 Volts
Power Consumption Maximum 2.5 Watts
LED Current 350 mA
LED Voltage 2.8 Volts
Pulse Current Maximum 2000 mA
Operating Relative Humidity (%) 20-85 Non Condensing
Installation Location Indoor Use Only
Temperature Sensor No
Risk Group According To CEI EN 62471:2010 Risk Group 2
FoV @ 1/2.5″ 23.46 x 17.61 mm
FoV @ 1/2″ 26.34 x 19.75 mm
FoV @ 1/1.8″ 29.34 x 21.93 mm
FoV @ 2/3″ 34.98 x 29.18 mm
