Description

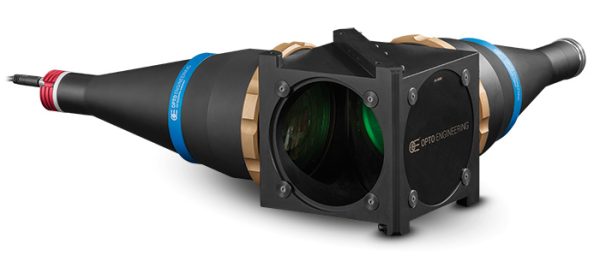

Opto Engineering TCCXQ014-G
Coaxial telecentric assemblies for sensors up to 2/3”. CCXQ optical assemblies integrate the high optical performances of TC telecentric lenses and the LTCLHP series' ability to provide accurate and reliable illumination. Pairing these two Opto Engineering® flagship products results in a system completely free from stray light and back-reflections while marking superior optical performances (in terms of resolution, telecentricity, and distortion) even at the highest magnifications.
This optical layout also minimizes the system's overall height, while the placement of the camera port allows for easy phase and back-focal adjustments. TCCXQ assemblies can be successfully employed in high-accuracy measurement applications and Automated Optical Inspection (AOI) setups.
TCCXQ014-G Technical Specifications:
Product Line / Series | TCCXQ |
Brand | Opto Engineering |
Lens Type | Telecentric |
Connector | M8 |
IP Rating | Not Specified |
Magnification | 0.138× |
Image Circle Diameter | 11 mm |
Image Size Dimensions | Not Specified |
Imager Format | 2/3″ |
Distortion Typical (%) | < 0.03 |
Distortion Maximum (%) | < 0.08 |
Phase Adjustment | No |
Telecentricity Typical | < 0.05° |
Telecentricity Maximum | 0.08° |
Working Distance | 64.4 mm |
Depth Of Field | 21.7 mm |
Working ƒ/N | ƒ/8 |
Resolution (Pixel Size) | 37 μm |
Mount | C-Mount |
Dimensions Approximate | 363.7 x 128 x 349.9 mm |
Front Diameter | Not Specified |
Weight | 3891 Grams |
Filter Thread | No Filter Threads |
Wavelength | 525 nm |
Light Color | Green |
Operating Temperature Range | 0 to 40°C |
Storage Temperature Range | 0 to 50°C |
Supply Voltage | 12 - 24 Volts |
Power Consumption Maximum | 2.5 Watts |
Spectral FWHM | 40 nm |
LED Current | 350 mA |
LED Voltage | 3.3 Volts |
LED Voltage Maximum | 4 Volts |
Pulse Current Maximum | 2000 mA |
Operating Relative Humidity (%) | 20-85 Non Condensing |
Installation Location | Indoor Use Only |
Temperature Sensor | No |
Risk Group According To CEI EN 62471:2010 | Exempt |
FoV @ 1/2.5″ | 41.30 x 31.01 mm |
FoV @ 1/2″ | 46.38 x 34.78 mm |
FoV @ 1/1.8″ | 51.67 x 38.62 mm |
FoV @ 2/3″ | 61.59 x 51.38 mm |
