Description

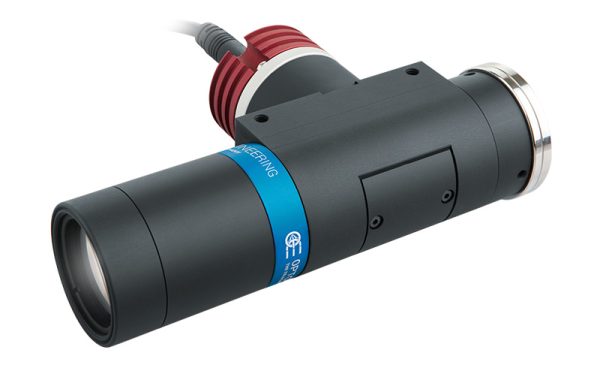

Opto Engineering TCCX050-W
132mm working distance coaxial telecentric lenses for sensors up to 2/3”. TCCX series is a range of lenses designed for measurement and defect detection on flat surfaces. They feature the same magnifications and working distance of the TCLWD series while adding integrated coaxial light. Such lighting configuration is required to homogeneously illuminate uneven surfaces and detect small surface defects such as scratches or grooves, finding application in many industries, from the electronics and semiconductor industries to the glass and metal fabrication industries.
All these lenses operate at a working distance of 132 mm. At the same time, their large numerical aperture enables the superior resolution needed for small-pixel cameras, matching and even exceeding the industrial requirements of on- and offline applications. The built-in LED source, equipped with advanced electronics, provides excellent illumination stability and homogeneity, critical factors for the reliability of any machine vision system. The unique optical design minimizes the internal reflection issues of conventional coaxial illumination systems: this makes TCCX lenses the perfect choice, especially when inspecting highly reflective flat surfaces (approx. > 30% reflectance).
Typical applications include recognition of silicon wafers pattern and inspection of LCDs, polished metal surfaces, plastic and glass panels, and many others.
TCCX050-W Technical Specifications:
Product Line / Series | TCCX |
Brand | Opto Engineering |
Lens Type | Telecentric |
Connector | M8 |
IP Rating | Not Specified |
Magnification | 0.5× |
Image Circle Diameter | 11 mm |
Image Size Dimensions | Not Specified |
Imager Format | 2/3″ |
Distortion Typical (%) | < 0.1 |
Distortion Maximum (%) | < 0.2 |
Phase Adjustment | Yes |
Telecentricity Typical | < 0.04° |
Telecentricity Maximum | 0.06° |
Working Distance | 132.3 mm |
Depth Of Field | 2.5 mm |
Working ƒ/N | ƒ/12 |
Resolution (Pixel Size) | 15 μm |
Mount | C-Mount |
Dimensions Approximate | 131.2 x 37. x 37.7 mm |
Front Diameter | 37.7 mm |
Weight | 450 Grams |
Filter Thread | No Filter Threads |
Wavelength | 6000 K |
Light Color | White |
Operating Temperature Range | 0 to 40°C |
Storage Temperature Range | 0 to 50°C |
Supply Voltage | 12 - 24 Volts |
Power Consumption Maximum | 2.5 Watts |
LED Current | 350 mA |
LED Voltage | 2.8 Volts |
Pulse Current Maximum | 2000 mA |
Operating Relative Humidity (%) | 20-85 Non Condensing |
Installation Location | Indoor Use Only |
Temperature Sensor | No |
Risk Group According To CEI EN 62471:2010 | Risk Group 2 |
FoV @ 1/2.5″ | 11.40 x 8.56 mm |
FoV @ 1/2″ | 12.80 x 9.60 mm |
FoV @ 1/1.8″ | 14.26 x 10.66 mm |
FoV @ 2/3″ | 17.00 x 14.18 mm |
