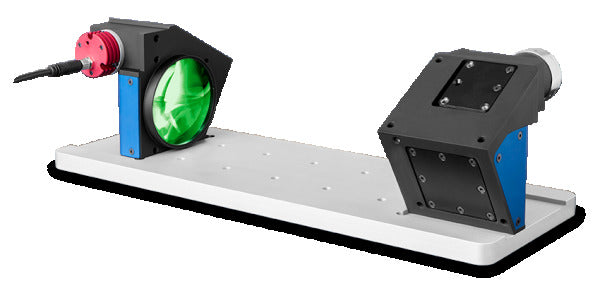

Opto Engineering TCCRBENCH056

TCBENCH CORE series are complete optical systems offering superior performances needed for highly demanding measurement applications in a super compact assembly. The benches come pre-mounted and pre-aligned, ensuring the best accuracy that a telecentric measurement system can deliver.

TCBENCH CORE systems deliver the same optical performances as our TCBENCH systems in a significantly reduced space.

TCCRBENCH056 Technical Specifications:

Product Line / Series TCBENCH CORE
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.157×
Image Circle Diameter 11.1 mm
Image Size Dimensions 9.6 x 9.6 mm
Imager Format 2/3″
Distortion Typical (%) < 0.03
Distortion Maximum (%) < 0.1
Phase Adjustment Yes
Telecentricity Typical < 0.05°
Telecentricity Maximum 0.08°
Working Distance 157.8 mm
Depth Of Field 16.8 mm
Working ƒ/N ƒ/8
Resolution (Pixel Size) 32 μm
Mount C-Mount
Dimensions Approximate 424 x 167 x 122 mm
Front Diameter Not Specified
Weight 5227 Grams
Filter Thread No Filter Threads
Wavelength 525 nm
Light Color Green
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Supply Voltage 12 - 24 Volts
Power Consumption Maximum 2.5 Watts
LED Current 350 mA
LED Voltage 2.8 Volts
Pulse Current Maximum 2000 mA
Operating Relative Humidity (%) 20-85 Non Condensing
Installation Location Indoor Use Only
Temperature Sensor No
Risk Group According To CEI EN 62471:2010 Exempt
FoV @ 1/2.5″ 36.31 x 27.26 mm
FoV @ 1/2″ 40.76 x 30.57 mm
FoV @ 1/1.8″ 45.41 x 33.95 mm
FoV @ 2/3″ 54.14 x 45.16 mm
