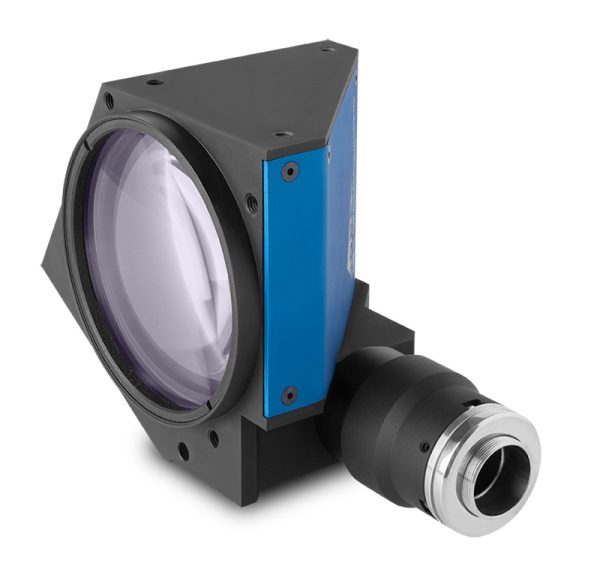

Opto Engineering TCCR2MP064-C 1″ f/8 181.9 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TCCR2MP064-C

Price:
Sale price$4,604.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 1/23/26. Pricing is subject to change and may fluctuate.

Opto Engineering TCCR2MP064-C

TC2MHR CORE series features ultra-compact telecentric lenses tailored for high-resolution sensors up to 1”. TC2MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique optomechanical design, these lenses offer exceptionally high resolution, nearly zero distortion, and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.

Our compact telecentric lenses can be mounted in several orientations thanks to the M6 threads on multiple sides, even without clamping mechanics. For maximum flexibility, a unique front mounting clamp is also available.

TCCR2MP064-C Technical Specifications:

Product Line / Series TC2MHR CORE
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.2×
Image Circle Diameter 16.6 mm
Image Size Dimensions 14 x 14 mm
Imager Format 1″
Distortion Typical (%) < 0.05
Distortion Maximum (%) < 0.1
Phase Adjustment Yes
Telecentricity Typical < 0.04°
Telecentricity Maximum 0.10°
Working Distance 181.9 mm
Depth Of Field 10.4 mm
Working ƒ/N ƒ/8
Resolution (Pixel Size) 25 μm
Mount C-Mount
Dimensions Approximate 180.3 x 123 x 100.5 mm
Front Diameter Not Specified
Weight 2047 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
FoV @ 2/3″ 42.50 x 35.45 mm
FoV @ 1″ 70.95 x 37.55 mm
Fov @ 1.2″ 56.75 x 35.65 mm
