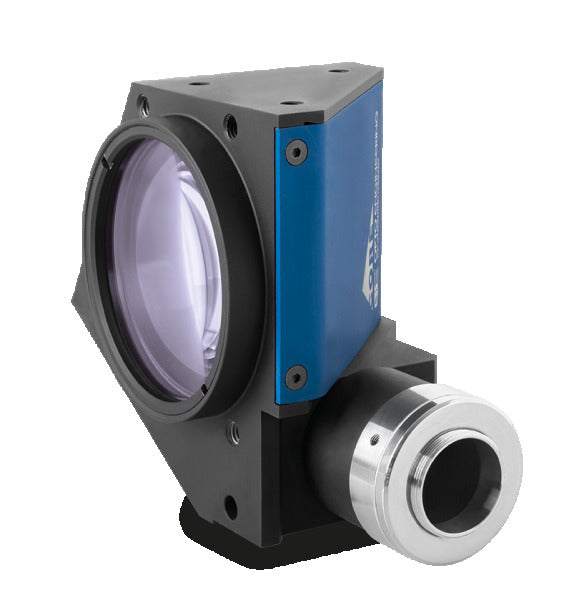

Opto Engineering TCCR23048 2/3″ f/8 132.9 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TCCR23048

Price:
Sale price$2,653.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 1/23/26. Pricing is subject to change and may fluctuate.

Opto Engineering TCCR23048

TC CORE bi-telecentric lenses for sensors up to 2/3” feature a revolutionary ultra-compact optomechanical design. These lenses deliver high-end optical performances and, at the same time, are up to 70% smaller than other double-sided telecentric lenses on the market, thus allowing to downsize a vision system sign. The unique shape has been expressly developed for maximum mounting flexibility.

These lenses can be mounted in different directions using any four sides, even without clamps, allowing you to cut the system’s cost. They can be easily fitted or retrofitted even into very compact machines. TC CORE bi-telecentric lenses can also be coupled with ultra-compact LTCLHP CORE series telecentric illuminators to build super small yet highly accurate measurement systems.

TCCR23048 Technical Specifications:

Product Line / Series TC CORE
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.184×
Image Circle Diameter 11 mm
Image Size Dimensions 9.6 x 9.6 mm
Imager Format 2/3″
Distortion Typical (%) < 0.05
Distortion Maximum (%) < 0.1
Phase Adjustment Yes
Telecentricity Typical < 0.08°
Telecentricity Maximum 0.10°
Working Distance 132.9 mm
Depth Of Field 12.2 mm
Working ƒ/N ƒ/8
Resolution (Pixel Size) 28 μm
Mount C-Mount
Dimensions Approximate 131 x 106 x 77 mm
Weight 1145 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
FoV @ 1/2.5″ 30.98 x 23.26 mm
FoV @ 1/2″ 34.78 x 26.09 mm
FoV @ 1/1.8″ 38.75 x 28.97 mm
FoV @ 2/3″ 46.20 x 38.53 mm
