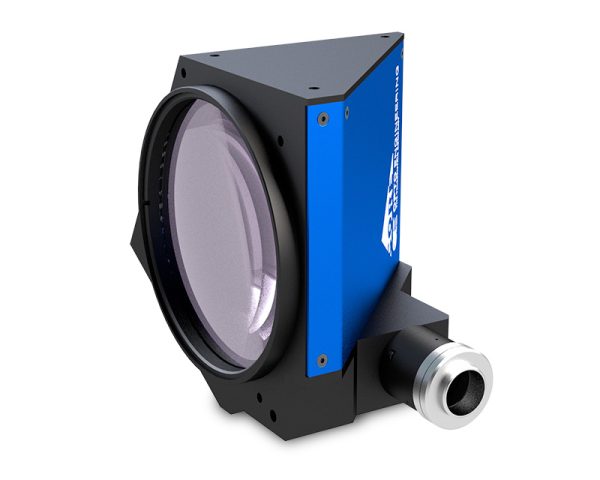

Opto Engineering TCCR1M096-C
TC1MHR CORE series are ultra-compact telecentric lenses tailored to up to 1/1.2” for high-resolution sensors. TC1MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique optomechanical design, these lenses offer exceptionally high resolution, low F#, nearly zero distortion, and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.
Thanks to the M6 threads on multiple sides, Opto Engineering® TC1MHR CORE lenses can be mounted in several orientations, even without clamping mechanics. For maximum flexibility, a unique front mounting clamp is also available.
TCCR1M096-C Technical Specifications:
Product Line / Series | TC1MHR CORE |
Brand | Opto Engineering |
Lens Type | Telecentric |
IP Rating | Not Specified |
Magnification | 0.114× |
Image Circle Diameter | 13.7 mm |
Image Size Dimensions | 11.3 x 11.3 mm |
Imager Format | 1/1.2″ |
Distortion Typical (%) | < 0.08 |
Distortion Maximum (%) | < 0.1 |
Phase Adjustment | Yes |
Telecentricity Typical | < 0.08° |
Telecentricity Maximum | 0.10° |
Working Distance | 278.6 mm |
Depth Of Field | 31.9 mm |
Working ƒ/N | ƒ/8 |
Resolution (Pixel Size) | 45 μm |
Mount | C-Mount |
Dimensions Approximate | 197.5 x 172 x 139 mm |
Front Diameter | Not Specified |
Weight | 4260 Grams |
Filter Thread | No Filter Threads |
Operating Temperature Range | 0 to 40°C |
Storage Temperature Range | 0 to 50°C |
Operating Relative Humidity (%) | Not Specified |
Installation Location | Not Specified |
Temperature Sensor | No |
FoV @ 1/1.8″ | 62.54 x 46.75 mm |
FoV @ 2/3″ | 74.56 x 62.19 mm |
Fov @ 1.2″ | 99.56 x 62.54 mm |
