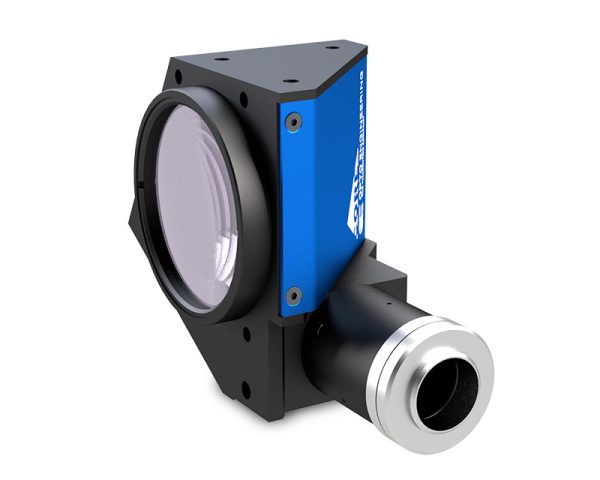

Opto Engineering TCCR1M048-C 1/1.2″ f/8 132.4 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TCCR1M048-C

Price:
Sale price$3,520.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Opto Engineering TCCR1M048-C

TC1MHR CORE series are ultra-compact telecentric lenses tailored to up to 1/1.2” for high-resolution sensors. TC1MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique optomechanical design, these lenses offer exceptionally high resolution, low F#, nearly zero distortion, and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.

Thanks to the M6 threads on multiple sides, Opto Engineering® TC1MHR CORE lenses can be mounted in several orientations, even without clamping mechanics. For maximum flexibility, a unique front mounting clamp is also available.

TCCR1M048-C Technical Specifications:

Product Line / Series TC1MHR CORE
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.222×
Image Circle Diameter 13.3 mm
Image Size Dimensions 11.6 x 11.6 mm
Imager Format 1/1.2″
Distortion Typical (%) < 0.08
Distortion Maximum (%) < 0.1
Phase Adjustment Yes
Telecentricity Typical < 0.08°
Telecentricity Maximum 0.10°
Working Distance 132.4 mm
Depth Of Field 8.4 mm
Working ƒ/N ƒ/8
Resolution (Pixel Size) 23 μm
Mount C-Mount
Dimensions Approximate 144.7 x 106 x 77 mm
Front Diameter Not Specified
Weight 144.7 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
FoV @ 1/1.8″ 32.12 x 24.01 mm
FoV @ 2/3″ 38.29 x 31.94 mm
Fov @ 1.2″ 51.13 x 32.12 mm
