Opto Engineering TCCR12120 1/2″ f/8 334.5 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TCCR12120

Price:
Sale price$6,205.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

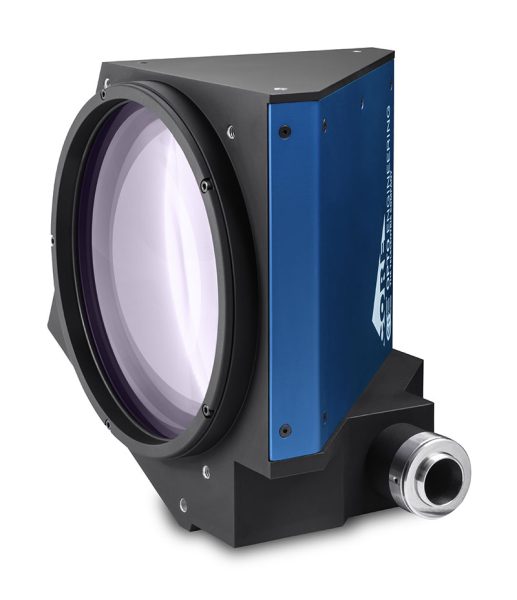

Opto Engineering TCCR12120

TC CORE bi-telecentric lenses for sensors up to 2/3” feature a revolutionary ultra-compact optomechanical design. These lenses deliver high-end optical performances and, at the same time, are up to 70% smaller than other double-sided telecentric lenses on the market, thus allowing to downsize a vision system sign. The unique shape has been expressly developed for maximum mounting flexibility.

These lenses can be mounted in different directions using any four sides, even without clamps, allowing you to cut the system’s cost. They can be easily fitted or retrofitted even into very compact machines. TC CORE bi-telecentric lenses can also be coupled with ultra-compact LTCLHP CORE series telecentric illuminators to build super small yet highly accurate measurement systems.

TCCR12120 Technical Specifications:

Product Line / Series TC CORE
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.052×
Image Circle Diameter 8.3 mm
Image Size Dimensions 6.8 x 6.8 mm
Imager Format 1/2″
Distortion Typical (%) < 0.08
Distortion Maximum (%) < 0.1
Phase Adjustment Yes
Telecentricity Typical < 0.06°
Telecentricity Maximum 0.08°
Working Distance 334.5 mm
Depth Of Field 153.1 mm
Working ƒ/N ƒ/8
Resolution (Pixel Size) 98 μm
Mount C-Mount
Dimensions Approximate 231 x 220 x 181 mm
Weight 9094 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
FoV @ 1/2.5″ 109.62 x 82.31 mm
FoV @ 1/2″ 123.08 x 92.31 mm
FoV @ 1/1.8″ 137.12 x 102.50 mm
FoV @ 2/3″ 128.8 mm ø
