Description

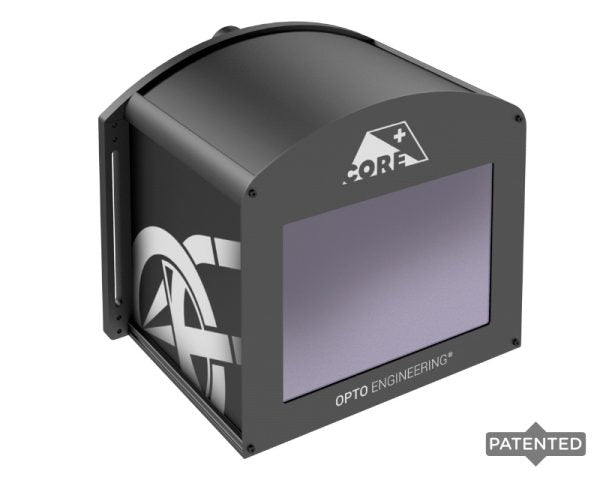

Opto Engineering TCCP23260
TC CORE PLUS series are large FOV telecentric lenses for area scan cameras, specifically designed for the latest generation 1/1.8” and 2/3” CMOS sensors. Their optomechanical design is ideal for measuring large objects in a reduced space. TC CORE PLUS series are up to 40% shorter than other telecentric lenses available. Their patent-pending optical design, inspired by catadioptric telescopes, allows for large FOV imaging while keeping the overall footprint compact.
The length and working distance of a telecentric lens strongly impacts the size of a vision system. This is especially critical when a large FOV telecentric lens is used with a telecentric illuminator, as the overall system dimensions are doubled. For this reason, the working distance of TC CORE PLUS lenses has been optimized to make a measurement system as compact as possible. TC CORE PLUS lenses feature a built-in mounting flange for easy mounting without additional clamps, making their integration easy and cost-effective.
TCCP23260 Technical Specifications:
Product Line / Series | TC CORE PLUS |
Brand | Opto Engineering |
Lens Type | Telecentric |
IP Rating | Not Specified |
Magnification | 0.036× |
Image Circle Diameter | Not Specified |
Image Size Dimensions | 8.93 x 7.45 mm |
Imager Format | 2/3″ |
Distortion Typical (%) | < 0.9 |
Distortion Maximum (%) | < 0.9 |
Residual Distortion (%) | < 0.01 |
Phase Adjustment | Yes |
Telecentricity Typical | < 0.18° |
Telecentricity Maximum | 0.22° |
Working Distance | 366 mm |
Depth Of Field | 319.4 mm |
Working ƒ/N | ƒ/8 |
Resolution (Pixel Size) | 141 μm |
Mount | C-Mount |
Dimensions Approximate | 435 x 397 x 480 mm |
Weight | 12337 Grams |
Filter Thread | No Filter Threads |
Operating Temperature Range | 0 to 40°C |
Storage Temperature Range | 0 to 50°C |
Operating Relative Humidity (%) | Not Specified |
Installation Location | Not Specified |
Temperature Sensor | No |
FoV @ 1/2.5″ | 158.33 x 118.89 mm |
FoV @ 1/2″ | 177.78 x 133.33 mm |
FoV @ 1/1.8″ | 198.06 x 148.06 mm |
FoV @ 2/3″ | 236.11 x 196.94 mm |
